4 Description
4.1 Meter parts

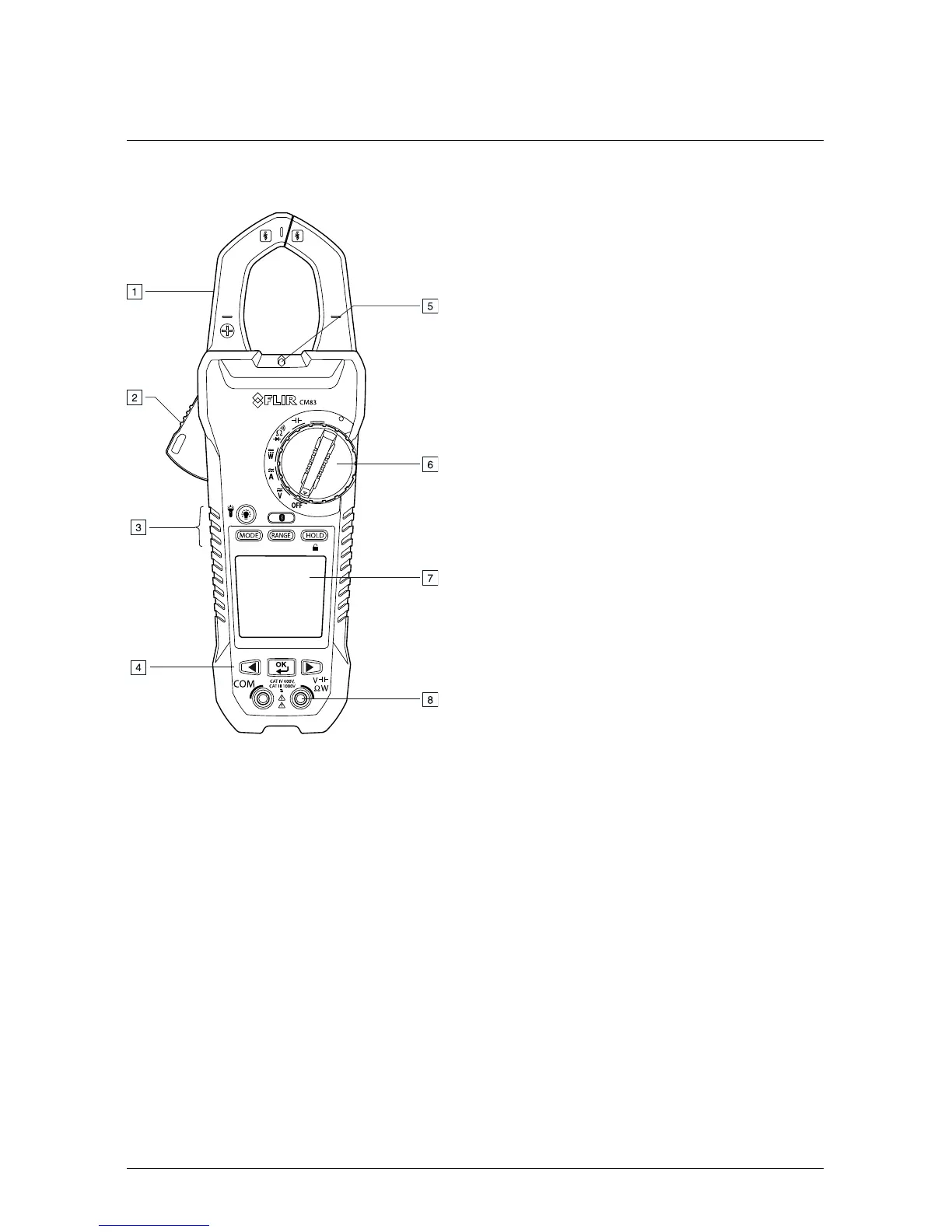

Figure 4.1 Front view
1. Clamp jaw.
2. Jaw opening trigger.
3. Function buttons, see section 4.3 Function buttons, page 10.
4. Navigation buttons.
5. Non-contact voltage detector light
6. Function switch, see section 4.2 Function switch, page 9.
7. LCD display.
8. Probe terminals.
#T559825; r. AI/33557/33557; en-US 8
