FLJ T113 - Multi-function Instrument Operation

7
Folding operation:
Step 1:Turn the safety lock outwardly, then gently pull out it and put
it on the screw on the edge(Figure.
○
1
).
Step 2: Press down the fold button that in the locked position(Figure.
○
2
). At the same time pull down the Scooter Pole(Figure.
○
3
).
Step 3: Fold the Pole(Figure.
○
4
).
Opening operation:
First, Turn the safety lock outwardly, then gently pull out it and put it
on the screw on the edge.
Then, press the fold button down by hand. Push the lever upwards
when press the fold button and. Hear the sound of click then the
security lock locked, completing the operation.

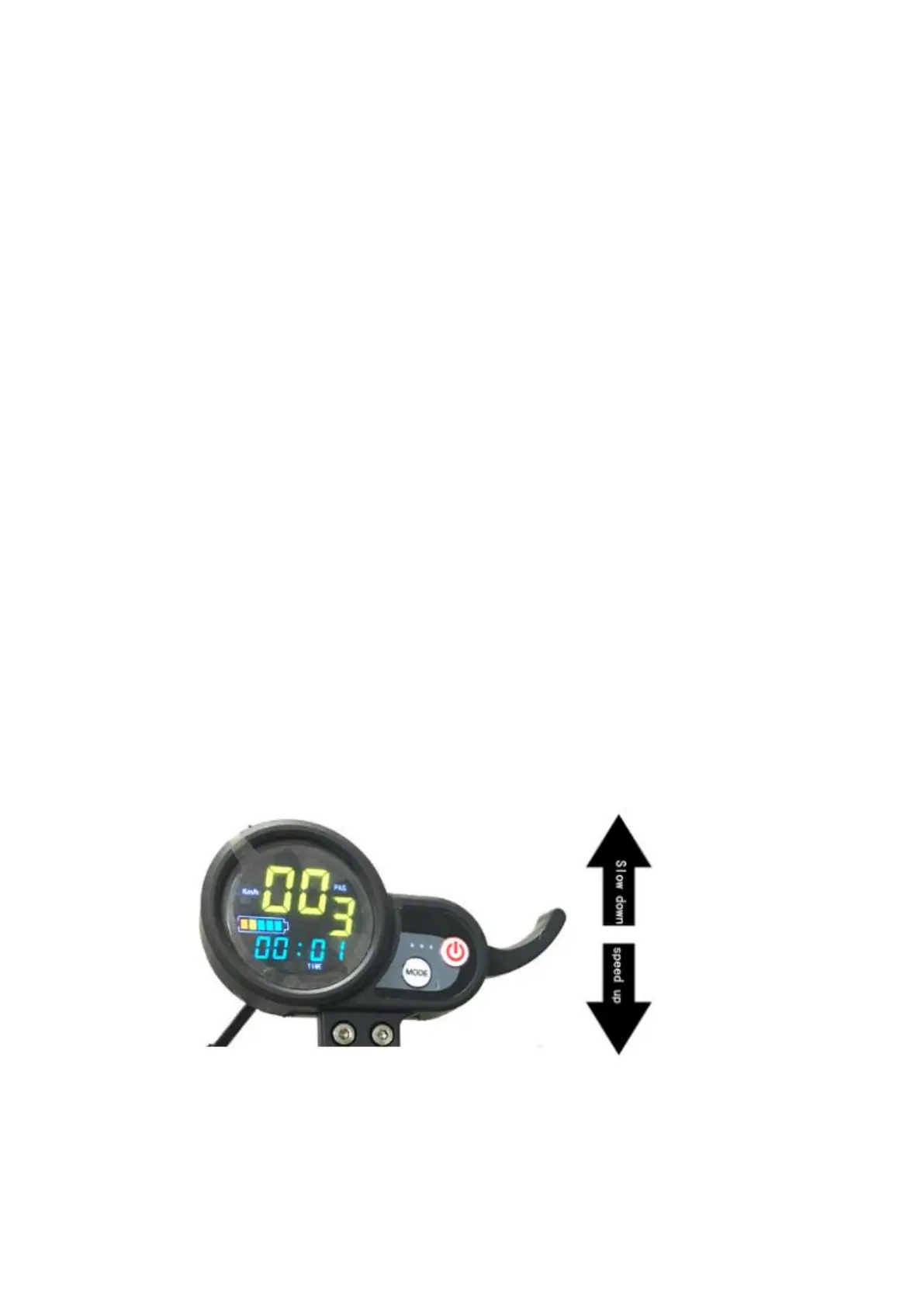

6. Operation of multi-function high-definition instrument
