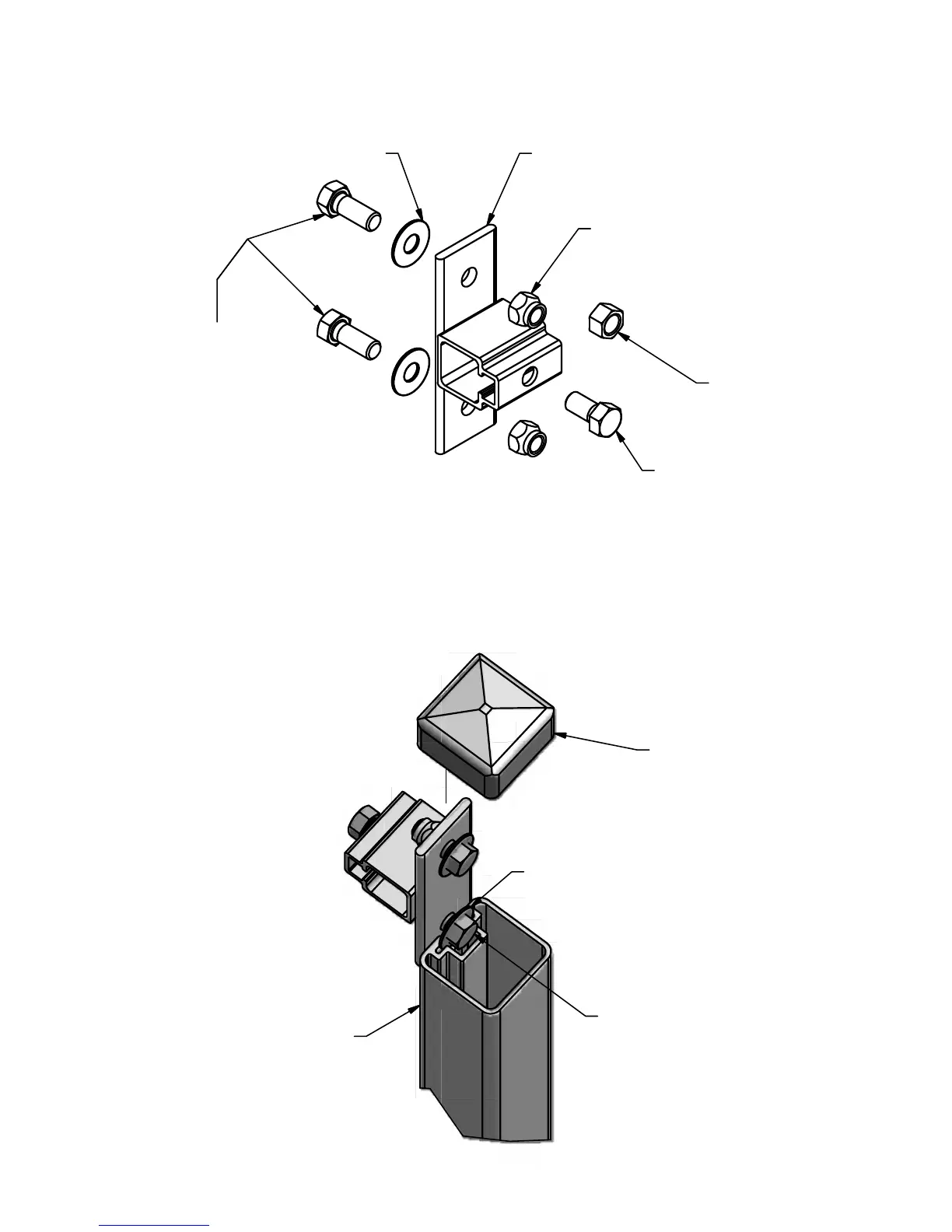

STEP 1
- ASSEMBLE MAST MOUNT BRACKET
FIG. 2
TOP VIEW OF CORNER POST
FIG. 1
STEP 2
- ASSEMBLE MAST MOUNT BRACKET ONTO LEG INSERT
- IF LIFT HAS CANOPY ALREADY INSTALLED, THE BRACKET AND RAIL FROM THE CANOPY
WILL HAVE TO BE REMOVED FROM THE DESIRED LEG FOR THIS STEP.
INSERT (2) 1/2 X 1 1/4"
BOLT THROUGH
WASHER AND BRACKET.
START 1/2" NYLOCK NUTS
ONTO BOLTS, DO NOT
TIGHTEN UNTIL STEP #4
1/2" WASHER
BRACKET
START 1/2 X 1" BOLT INTO NUT
IN NUT TRACK, DO NOT TIGHTEN
UNTIL MAST IS IN THE BRACKET
SLIDE 1/2" ALUM. NUT INTO
NUT TRACK ON BRACKET
REMOVE CAP FROM LEG
INSERT ON CORNER POST
REINSTALL ONCE STEP IS COMPLETE
SLIDE WASHERS INTO
TRACK ON LEG INSERT
SLIDE HEAD OF BOLTS INTO
TRACK ON LEG INSERT
LEG INSERT IN CORNER POST
3
