FlorCraft 709-3908 - Table of Contents

2
Power Supply ................................................120V / 60Hz / 10A
Horsepower .................................................................1-1/2 HP
Speed (RPM) ..........................................................6,000 R/MIN
Blade Diameter .................................................................... 7 in
Arbor Shaft Diameter ....................................................... 5/8 in
Depth of Cut ...................................................................2-1/4 in
Max. Bevel Cut ..................................................................... 1 in
Max Rip Cut ....................................................................... 24 in
Max Diagonal Cut .............................................................. 18 in
Adjustable Miter/Bevel ................................. 0°, 22.5°, and 45°
Overall Dimensions
(Tile Saw assembly only) ...............22 3/4 in (W) x 32 3/8 in (L)
Table Size .........................................................17 in x 16-3/4 in
Working Height ............................................................34-1/4 in
Power Cord .................................................................... 6-1/2 ft
Certification .........................................................................ETL
Tile Saw Weight ............................................................... 64 lbs
NOISE DATA
Sound Power Level (Operation) ....................................≤93 dB
TABLE OF CONTENTS PRODUCT SPECIFICATIONS
SECTION PAGE
SAFETY RULES / WARNINGS 3-4
General Tool Safety
Tool Specic Warnings
CONTENTS 5
Assembly Parts
ASSEMBLY 6-8
Table Assembly
Tile Saw Assembly
OPERATION 9-11
Tile Saw Use
MAINTENANCE 12-15
Tile Saw Maintenance
General Maintenance
TROUBLESHOOTING 15
PARTS AND COMPONENTS 16-18
WARRANTY 19

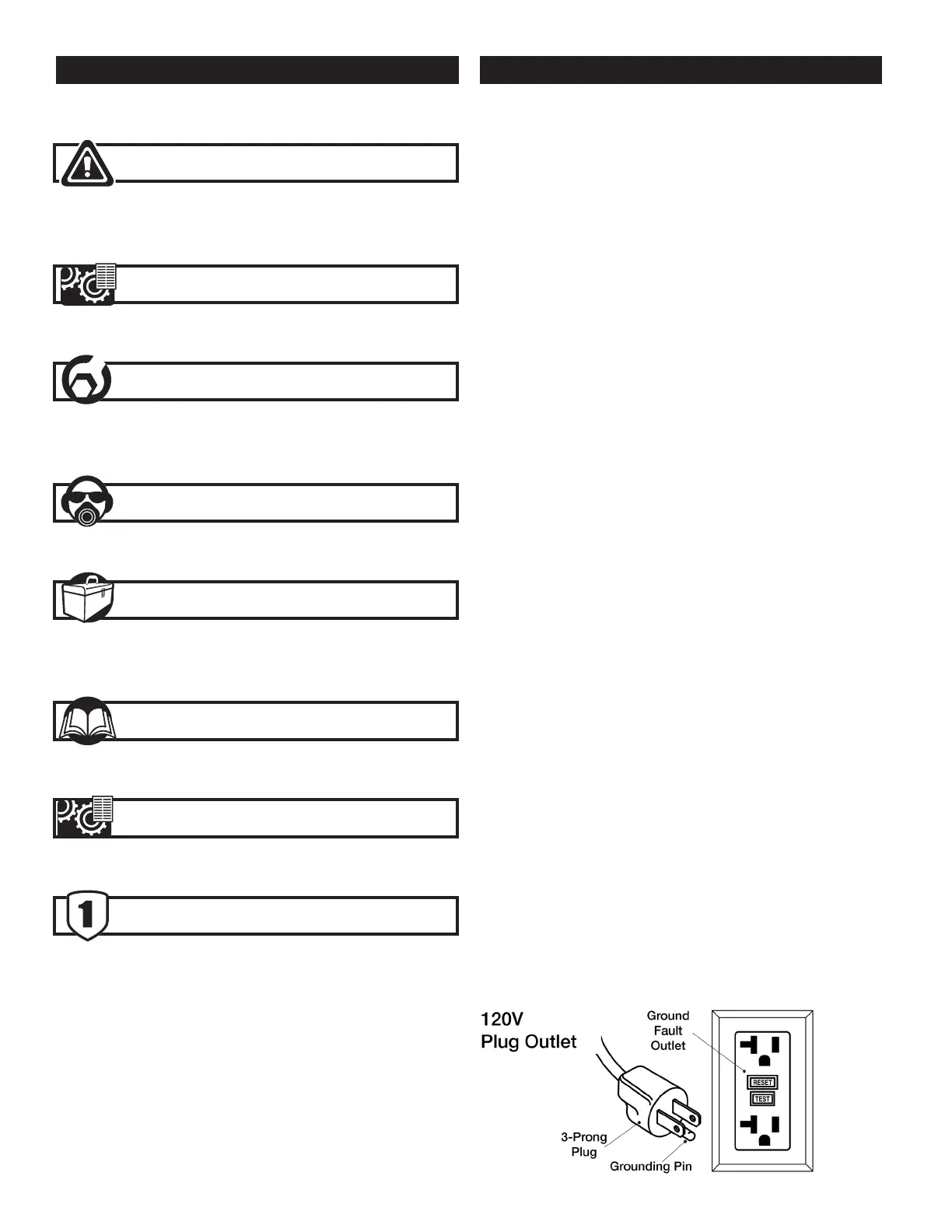

GROUND CONNECTION INSTRUCTIONS
All tools must be connected to ground.
In case of malfunction or fault, the ground connection provides
a path of least resistance for the electrical current in order to
reduce the risk of electric shock. This tool is equipped with an
electrical cable for connecting the equipment to ground and a
grounded plug. The plug must be plugged into a corresponding
power outlet that is correctly installed and connected to ground in
accordance with all the local codes and ordinances.
Do not modify the plug provided. If it does not t the power
outlet, get a qualied electrician to install a suitable power outlet.
Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If repair
or replacement of the electric cord or plug is necessary, do not
connect the equipment grounding conductor to a live terminal.
Check with a qualied electrician or service personnel if you do not
fully understand the ground connection instructions, or if you have
any doubts whether the tool is correctly connected to ground.
Immediately repair or replace a damaged or worn cable.
This tile saw is designed for use in a 120 V nominal circuit and
has a grounded plug. Only connect the tile saw to a power outlet
that has the same conguration as the plug. Do not use an
adapter with this tile saw.
