Flotrol F60 - Flow Meter Assembly; Flow Meter Parts List

Page 18
1
2
3
4
5
6
7
8
9
10
11
14
13
12
MECHANICAL METER COVER ASS'Y ELECTRONIC METER COVER ASS'Y
MODEL F60

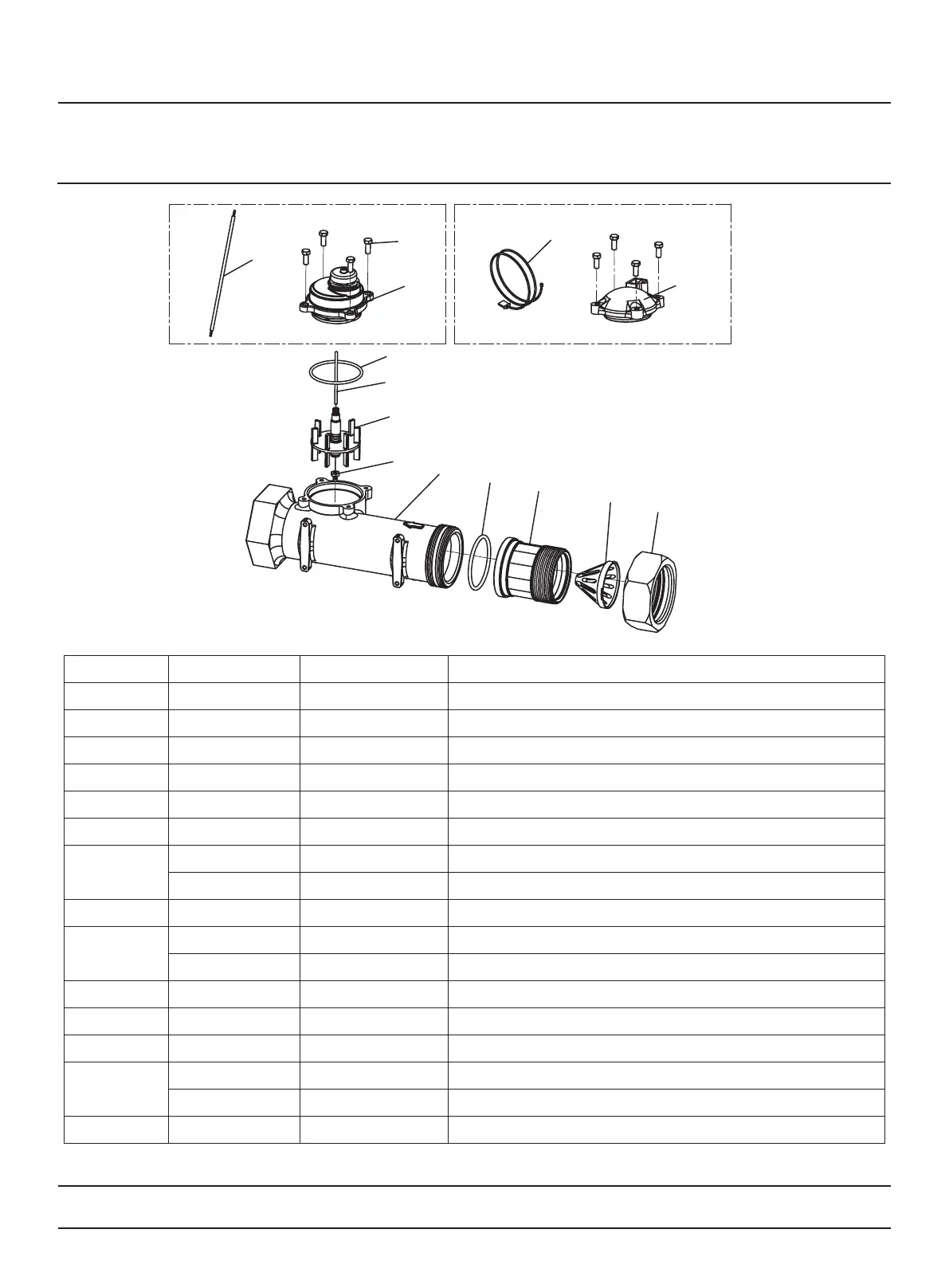

Assembly Drawings and Part Numbers
2" Flow Meter Assembly & Parts List
Item No. Quantity Part No. Description
1 1 052-00086-00 Impeller Shaft Retainer
2 1 051-00195-00 Impeller
3 1 052-00085-00 Impeller Shaft
4 1 060-00026-00 O-Ring
5 1 099-00734-00 Meter Cover Assembly (Mechanical)
6 4 066-00020-00 Screw-Hex Hd,M5*12
7
1 052-00320-00 2” Meter Body (NPT)
1 052-00070-00 2” Meter Body (BSP)
8 1 060-00030-00 O-Ring-227
9
1 052-00321-00 Nipple Quick Connect (NPT)
1 052-00071-00 Nipple Quick Connect (BSP)
10 1 051-00181-00 Flow Straightener
11 1 052-00072-00 Nut Quick Connect
12 1 061-00003-00 Meter Cable Assembly (17.5”)
13
1 047-00013-00 Meter Cable Assembly (99.5”)
1 047-00038-00 Meter Cable Assembly (300”)
14 1 099-01754-00 Meter Cover Assembly (Electronic)
Bold faced items are recommended spare parts.
