Page 5
Rotate the skipper wheel until the number “1” is at the red
pointer. Set the days that regeneration is to occur by sliding
tabs on the skipper wheel outward to expose trip fingers.
Each tab is one day. Finger at red pointer is tonight. Moving
clockwise from the red pointer, extend or retract fingers to
obtain the desired regeneration schedule.
Press and hold the red button in to disengage the drive gear.
Turn the Iarge gear until the actual time of day is at the time
of day pointer.
Release the red button to again engage the drive gear.
Turn the manual regeneration knob clockwise.
This slight movement of the manual regeneration knob
engages the program wheel and starts the regeneration
program.The black center knob will make one revoIution
in the following approximately
three hours and stop in the position shown in the drawing.
Even thought it takes three hours for this center knob to
complete one revolution, the regeneration cycle of your
unit might be set only one half of this time.ln any event,
conditioned water may be drawn after rinsewater stops
flowing from the water conditioner drain Iine.
1. Disconnect the power source.
2. Locate the three screws behind the manual regeneration
knob by pushing the red button in and rotating the 24 hour dial
until each screw appears in the cut out portion of the manual
regeneration knob.
3. Loosen each screw slightly to reIease the pressure on the
time plate from the 24 hour gear.
4. Locate the regeneration time pointer on the inside of the
24 hour dial in the cut out.
5. Turn the time plate so the desired regeneration time aligns
next to the raised arrow.
6. Push the red button in and rotate the 24 hour dial. Tighten
each of the three screws.
7. Push the red button and Iocate the pointer one more time
to ensure the desired regeneration time is correct.
8. Reset the time of day and restore power to the unit.
How To Set Days On Which Water Conditioner Is To
Regenerate:
How To Set The Time Of Day:
How To Manually Regenerate Your Water
Conditioner At Any Time:
How to Adjust Regeneration Time:

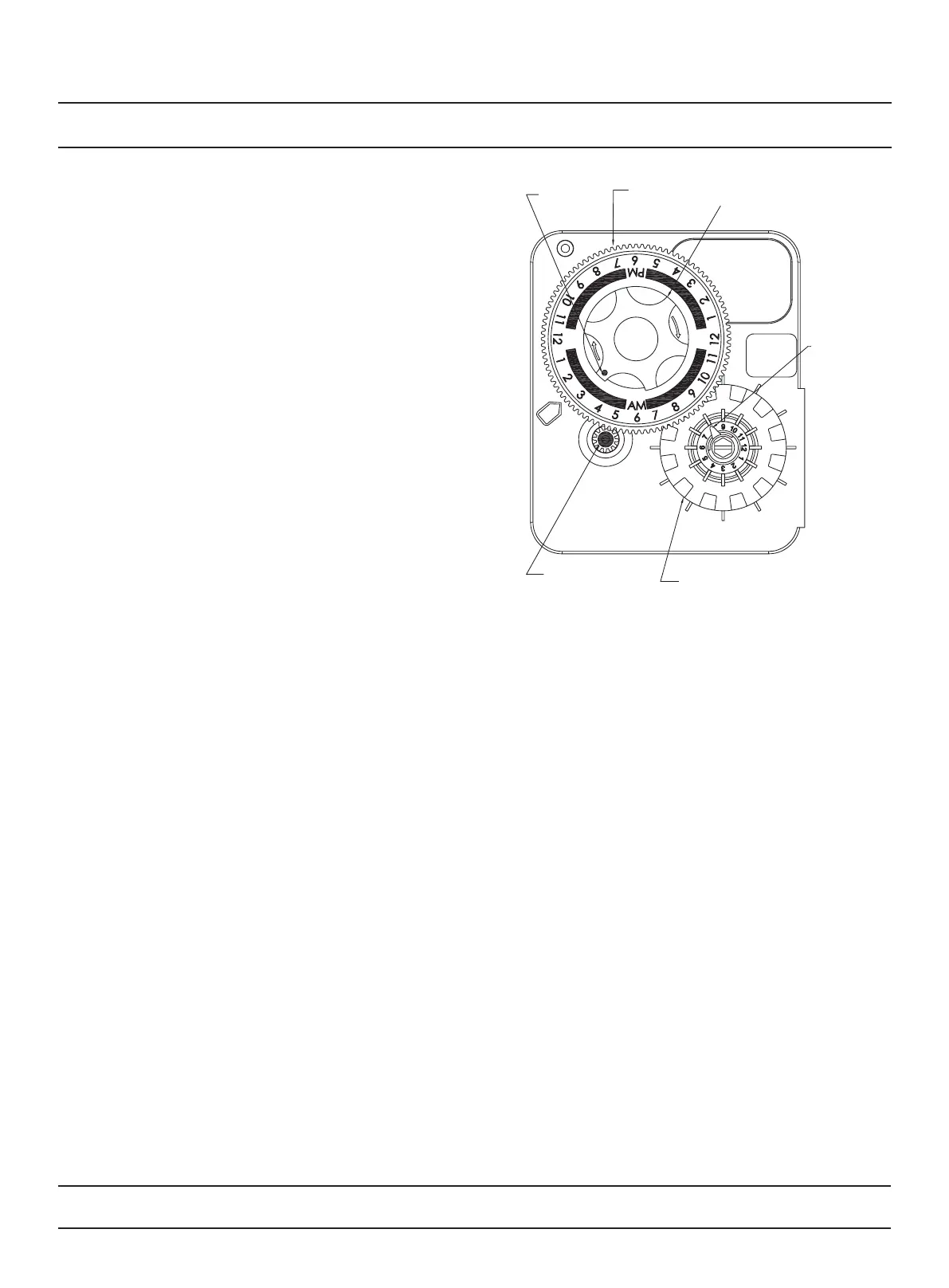

MODEL F60
Timer Setting Procedure
TIM E
OF DAY
Manual
Regeneration
Knob
24 HR. Gear
Service
Position
Indicator
Red Time
Set Button
TO MANUALLY
TO SET TIME OF DAY-
PRESS RED BUTTON AND
TURN LARGE D
IAL UNTIL
TIME IS AT ARROW.
START CYCLE
TURN KNOB
CLOCKWISE.
Skipper Wheel,12 Day
(Shows Every Other
Day Regeneration)
Red Pointer
To Next Page
