Page 6
PIN STORAGE
RAPID RINSE SETION
(2MIN. PER PIN)
BACKWASH SECTION
(2MIN. PER PIN)
BRINE & RINSE
(2MIN.PER HOLE)
BRINE TANK
PROGRAM WHEEL FOR
REGENERATION CYCLE
The regeneration cycle program on your water condi-
tioner has been factory preset, however, portions of the
cycle orprogram may be Iengthened or shortened in
time to suitlocal conditions.
Conditioner will rapid rinse (2 min. per pin).
To change the length of rapid rinse time, add or
remove pins at the higher numbered end of this section
as required. The number of pins times two equals the
rapid rinse time in minutes.
The second group of holes in the program wheel
determines the Iength of time that your water condi-
tioner will refill the brine tank (2 min. per hole).
To change the Iength of refill time, move the two pins at
the end of the second group of holes as required.
The regeneration cycle is complete when the outer
microswitch is tripped by the two pin set at end of the
brine tank refill section. The program wheel, however,
will continue to rotate until the inner microswitch drops
into the notch on the program wheel.
To expose cycle program wheel, grasp timer in upper
Ieft Hand corner and pull, releasing snap retainer and
swinging timer to the right.
To change the regeneration cycle program, the
program wheel must be removed. Grasp program
wheel and squeeze protruding Iugs toward center, Iift
program wheel off timer. (Switch arms may require
movement to facilitate removal.)
Return timer to closed position engaging snap retainer
in back plate. Make certain all electrical wires locate
above snap retainer post.

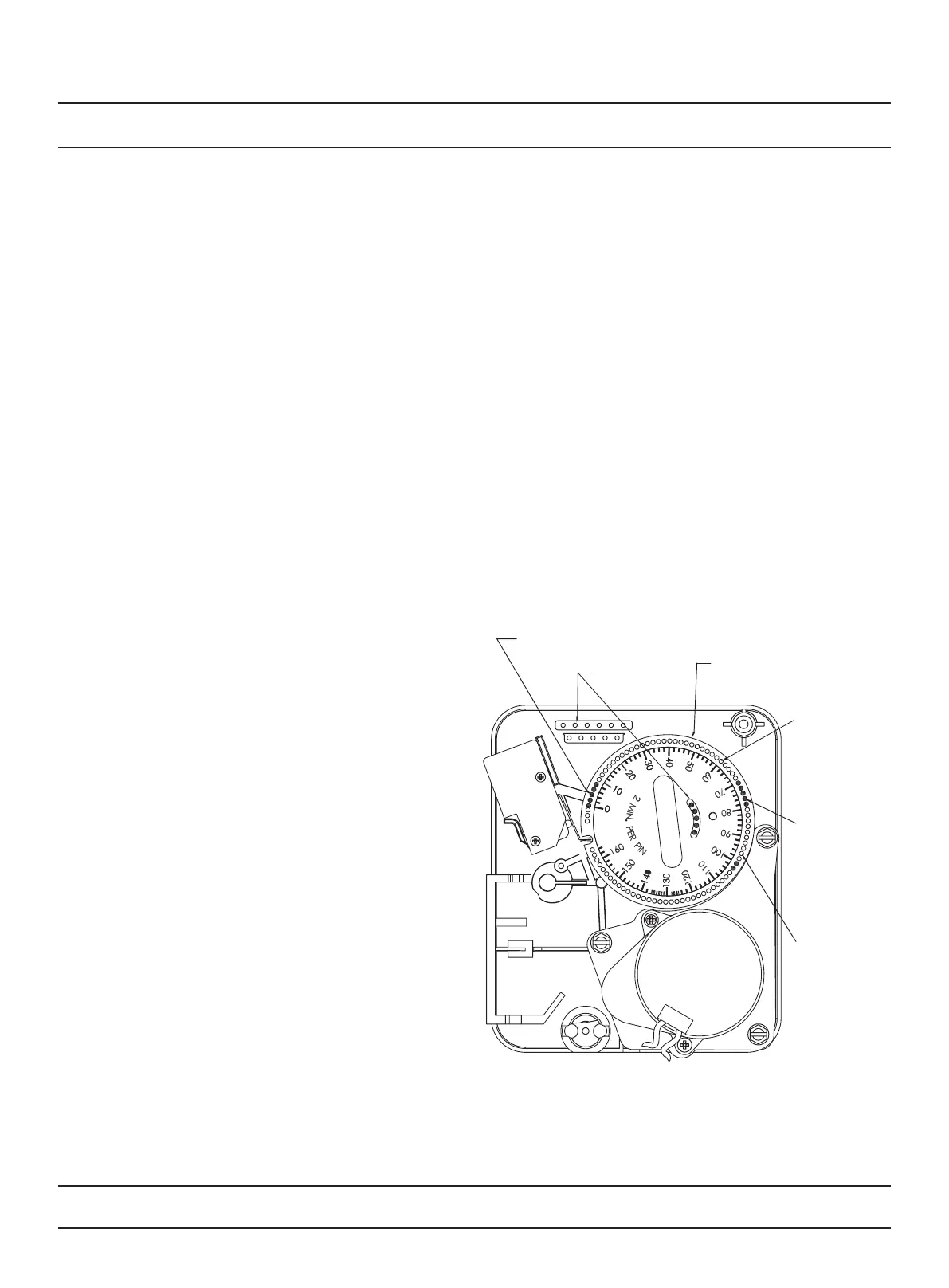

The program wheel as shown in the drawing is in the
service position. As you Iook at the numbered side of
the program wheel, the group of pins starting at zero
determines the Iength of time your unit will backwash.
FOR EXAMPLE: If there are six pins in this section, the
time of backwash will be 12 min. (2 min. per pin). To
change the Iength of backwash time, add or remove
pins as required. The number of pins times two equal
the backwash time in minutes.
The group of holes between the Iast pin in the back-
wash section and the second group of pins determines
the length of time that your unit will brine and rinse (2
min. per hole).
To change the Iength of brine and rinse time, move the
rapid rinse group of pins to give more or fewer holes in
the brine and rinse section. Number of holes times two
equals brine and rinse time in minutes.
The second group of pins on the program
wheel determines the Iength of time that your water
How To Change The Length Of Brine Tank Refill
Time:
3200 & 321 0 Series Timers (Figure to Right)
How To Set Regeneration Cycle Program:
Timer Setting Procedure for 3200 & 3210 Timer
How To Change The Length Of The Backwash
Time:
How To Change The Length Of Brine And Rinse
Time:
How To Change The Length Of Rapid Rinse:
MODEL F60
Regeneration Cycle Program Setting Procedure
