Page 7
Calculate the gallon capacity of the system, subtract
the necessary reserve requirement and set the gallons
required by Iifting the gallon dial and rotating it so that
the number of gallons required is aligned with the
white dot on program wheel gear. Release and check
for firm engagement with gear.
5. In any event, conditioned water may be drawn
after rinse water stops flowing from the water condi-
tioner drain Iine.
These timers do not have a 24 hour gear. Setting the
gallons on the program wheel and manual regenera-
tion procedure are the same as previous instructions.
To set Meter capacity at initial start-up either
1. Rotate manual regeneration knob one full
revolution.
—or—
2. Rotate program wheel manually clockwise or
counter clockwise and align white dot with capacity
arrow.
This procedure must be followed any time the program
wheel setting is changed.
1. Press and hold the red button in to is engage the
24 hour gear.
2. Turn the 24 hour gear until the actual time of
day is at the time of day pointer
3. Release the red button to again engage the 24
hour gear.
1. Turn the manual regeneration knob clockwise
one “click.”
2. This slight movement of the manual regeneration
knob engages the program wheel and starts the
generation program.
3. The black center knob will make one revolution
in the following approximately three hours and stop in
the position shown in the drawing.
4. Even though it takes three hours for this center
knob to complete one revolution, the regeneration
cycle of your unit might be set for only one half of this
time.

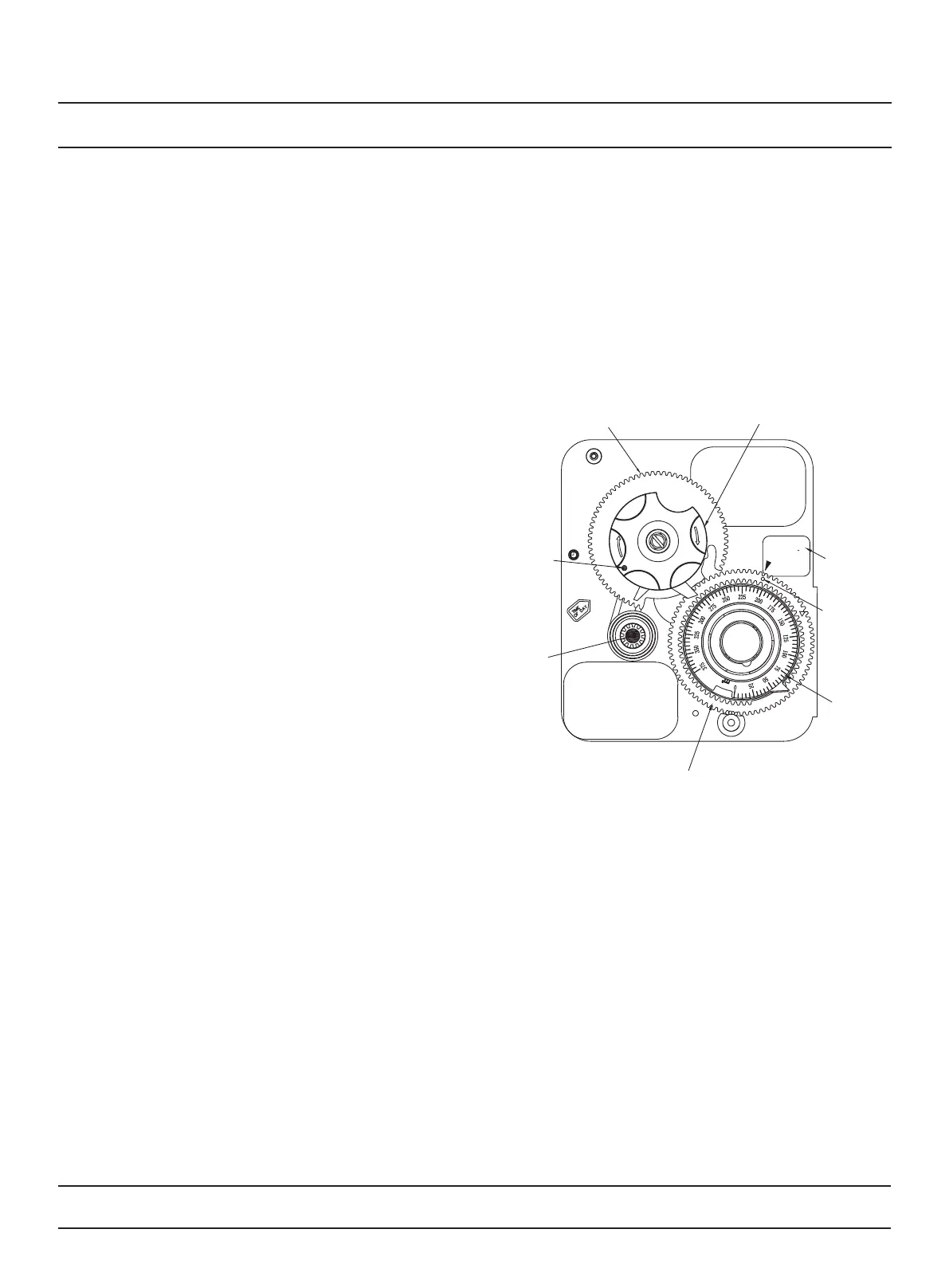

Note, drawing shows 8,750 gallon setting. The capac-
ity (gallons) arrow denotes remaining gallons exclusive
of fixed reserve.
Typical Programming Procedure
Immediate Regeneration Timers:
Note:
How To Set The Time Of Day:
How To Manually Regenerate Your Water Condi-
tioner At Any Time:
MODEL F60
Commercial Demand Regeneration Control Timer Settings
TO MANUALLY
TO SET TIME OF DAY-
PRESS RED BUTTON AND
TURN LARGE AIAL UNTIL
TIME IS AT ARROW.
START CYCLE-
TURN KNOB
CLOCKWISE.
CAPACITE
CAPACITY
KAPAZITAT
CAPACITA
CAPACIDAD
M
3
CAUTION
ALWAYS REMOVE CABLE
FROM METER BEFORE
SWINGING TIMER OPEN.
Program Wheel
Manual Regeneration Knob
Red Time
Set Button
White Dot
(M
3
Capacity)
M
3
Label
Service
Position
Indicator
Capacity
(M
3
Remaining)
24 HR. Gear
