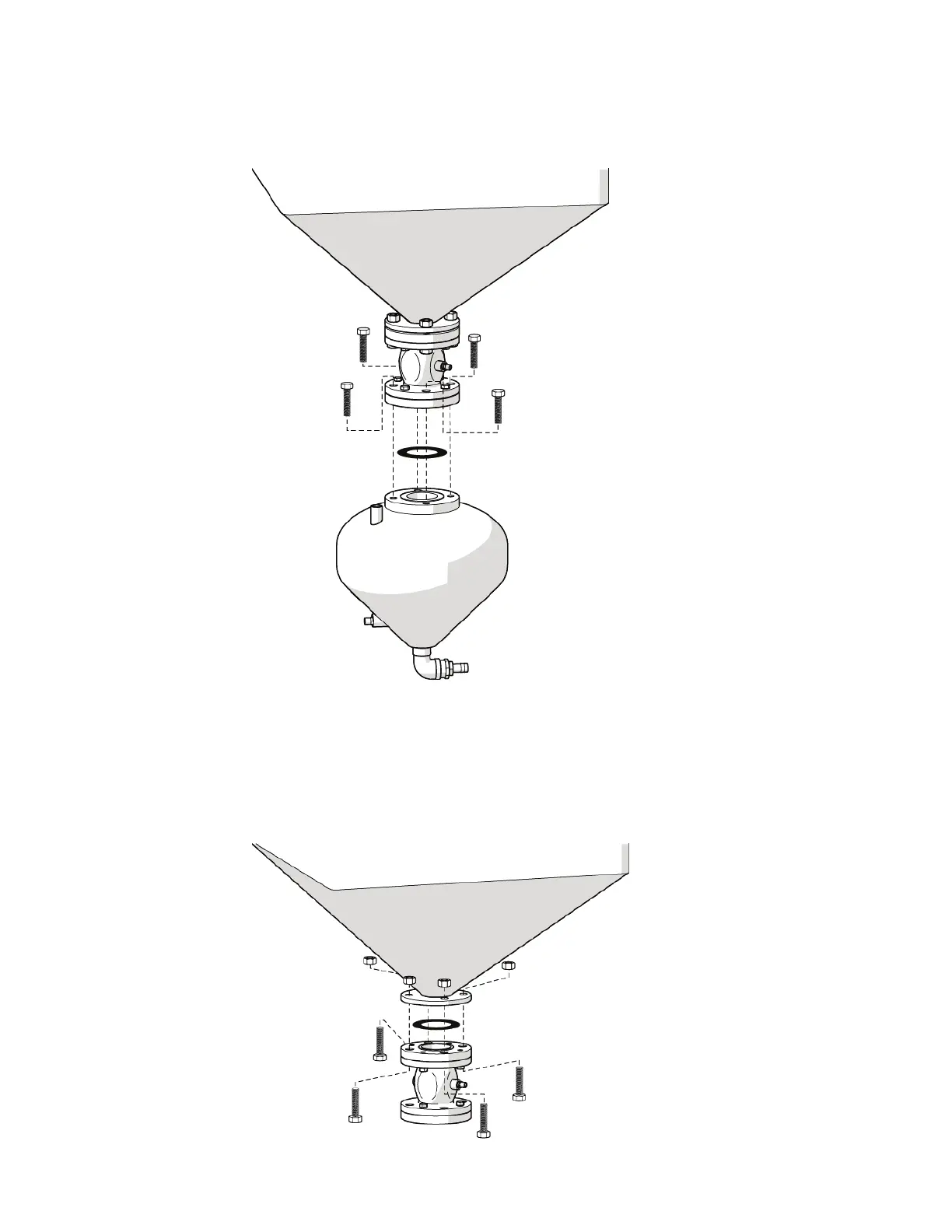

11. An assistant is required for this step. Remove the four M16 hex screws, and then
lower the vessel onto the wooden blocking.
12. Move the vessel and the wooden blocking away from the pinch valve.
13. Remove the gasket from between the vessel and the pinch valve housing. Clean
the gasket with a lint-free rag, and then set gasket aside.
14. Remove the M16 hex screws and nuts, and then remove the pinch valve.
© 2016–2017 Flow International Corporation
