Control cabinet
The control cabinet uses alternating current (AC) from 100 to 240V
at 50/60Hz, or 24V
direct current (DC). The internal control voltage is 24V DC.
The control cabinet contains the PLC, terminal strip, and warning indicators.
The PLC constantly monitors the operating conditions and sends control signals to the
solenoid valves, the warning indicator, and the audio signal.

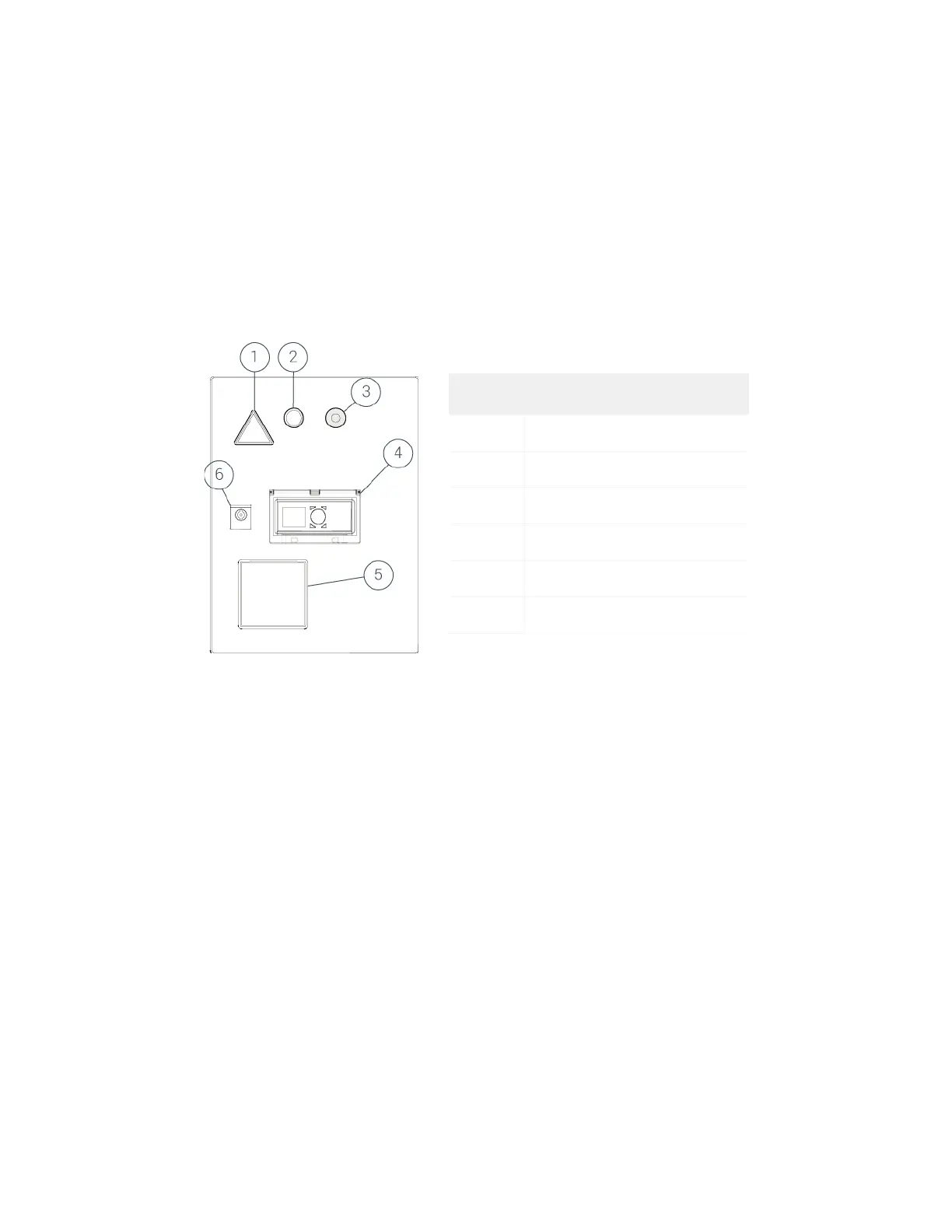

Number Description
1 Electrical hazard warning label
2 Yellow warning indicator
3 Audio signal
4 Display panel
5 CE label
6 Panel lock
