15
Schmidt Armaturen
AI - FlowTop

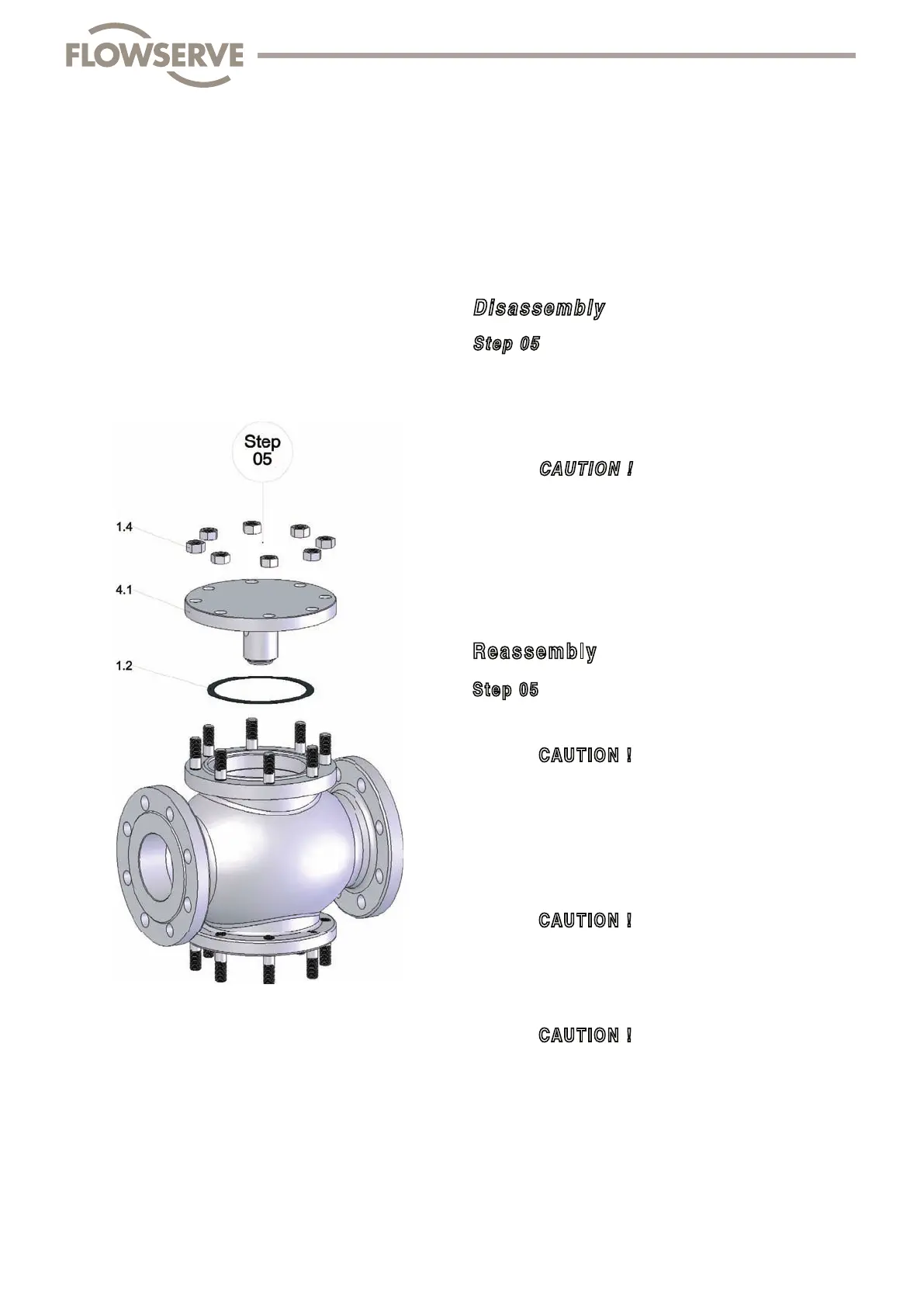

Disassembly
Step 05
• Turn body
• Unscrew hexagon nuts (1.4)
• Remove cover (4.1)
• Remove fl at gasket (1.2)
CAU TION !
Remove remains of fl at gasket (1.2) in the body
and on the cover (4.1).
Do not damage sealing surface !
Reassembly
Step 05
Reassembly takes place in reverse order.
CAUTION !
Clean parts and check sealing surfaces for damage.
   Usenewatgasket(1.2)!
• Lay  at gasket (1.2) in the body
• Put cover in place (4.1).
• Grease stud screws
CAUTION !
Lubrication as per Table 06 (Page 65)
• Screw hexagon nuts in place (1.4) and tighten in a
diagonally opposite sequence using the torque wrench
CAUTION !
Nut tightening moment (1.4)
as per Table 01 (Page 64)
