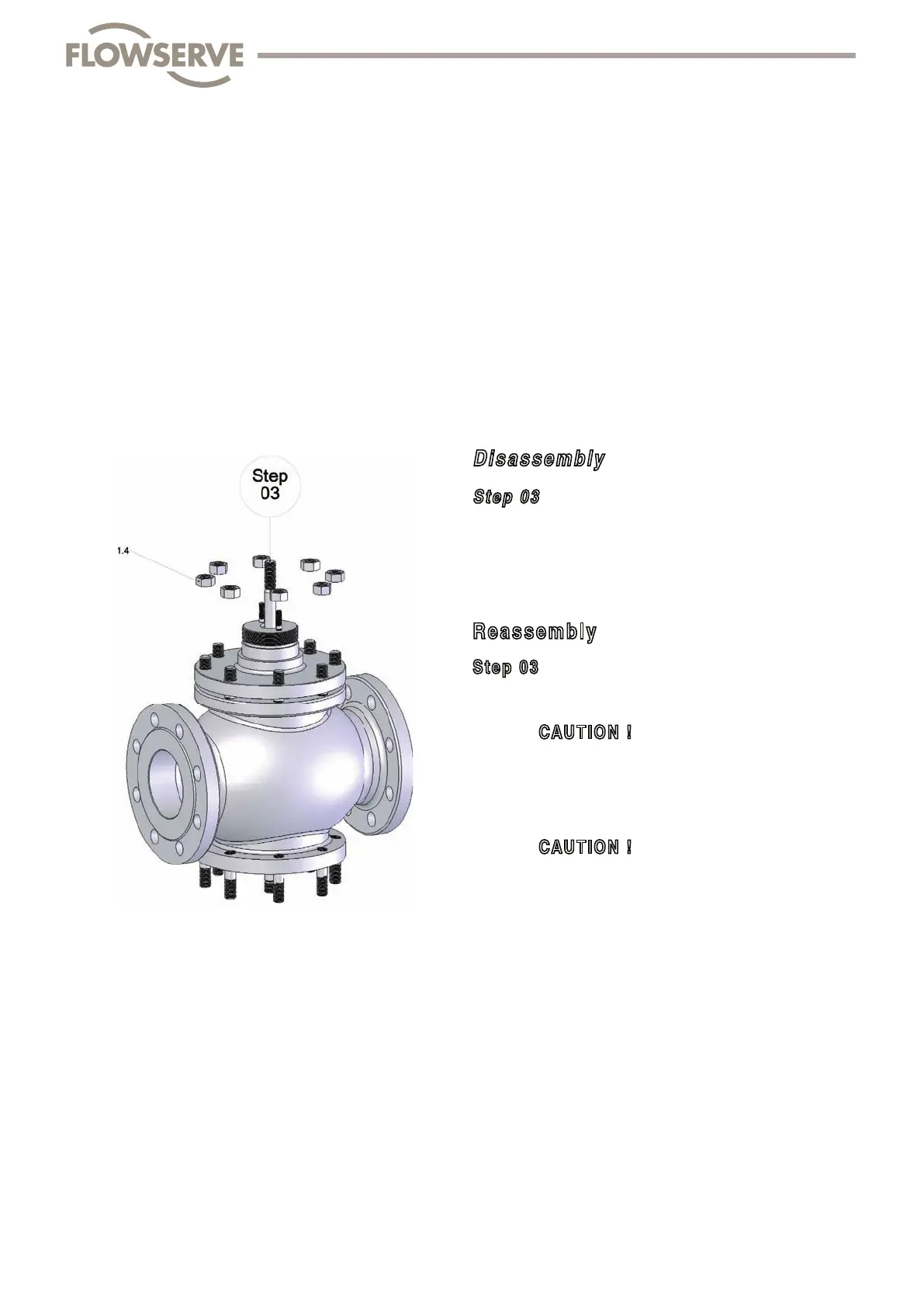

Disassembly
Step 03
• Unscrew hexagon nuts (1.4)
Reassembly
Step 03
• Grease stud screws
CAUTION !
Lubrication as per Table 06 (Page 65)
• Screw hexagon nuts in place (1.4) and tighten in a
diagonally opposite sequence using the torque wrench
CAUTION !
Nut tightening moment (1.4)
as per Table 01 (Page 64)
When tightening the nuts pay attention to the
alignment of the plug ( do not rub or insert the
plug in the open / closed movement )
