Disassembly
Step 06

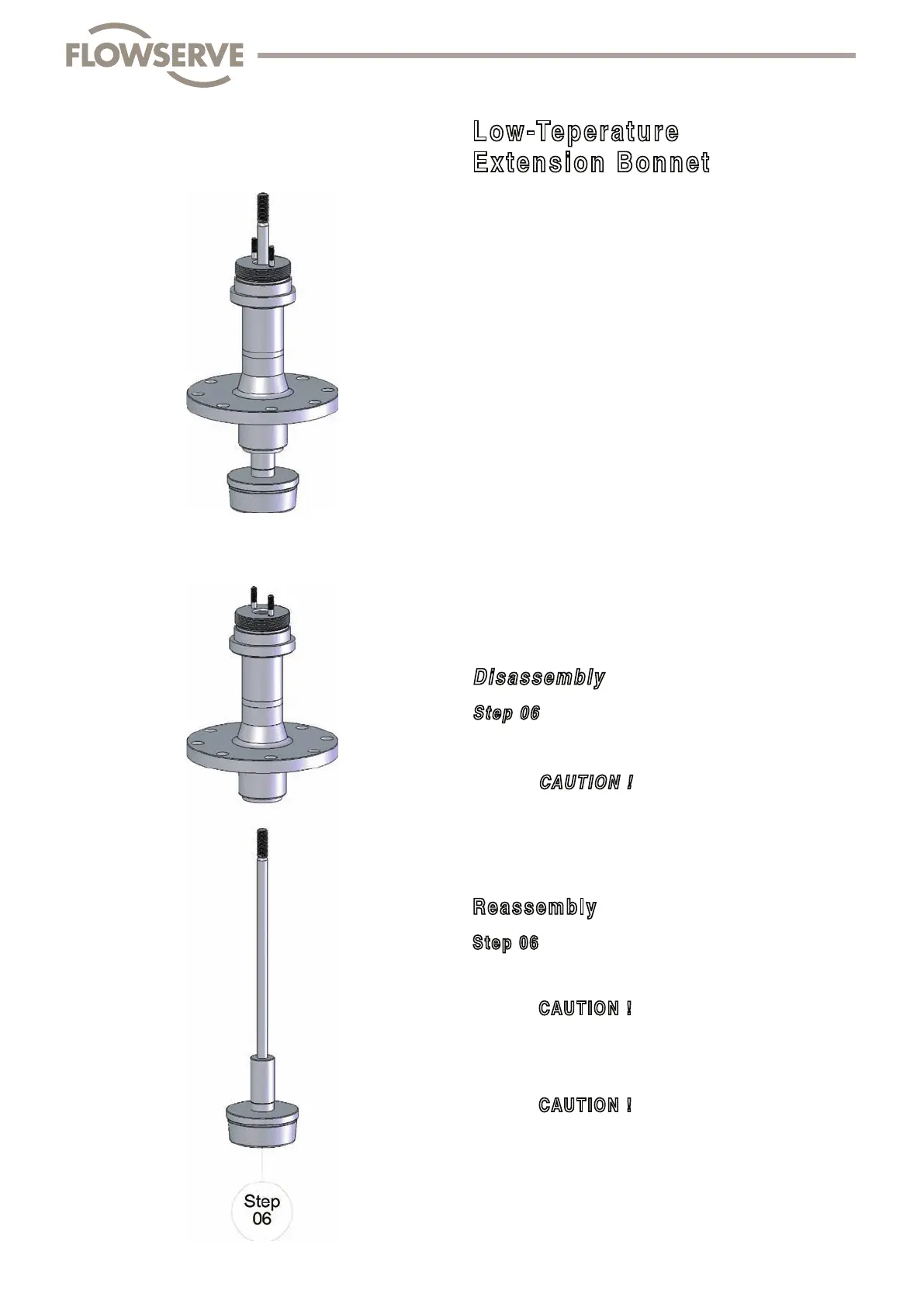

• Remove plug unit from the bonnet
CAU TION !
Do not damage high quality stem surface
and plug guide !
Reassembly
Step 06
Reassembly takes place in reverse order.
CAUTI ON !
Clean parts and check sealing surfaces for damage
• Grease plug shaft lightly and insert in the bonnet
CAUTI ON !
Lubrication as per Table 06 (Page 65)
Do not grease stem !
Low-Teperature
Extension Bonnet
SPM - Code : V7xx xxVKx
