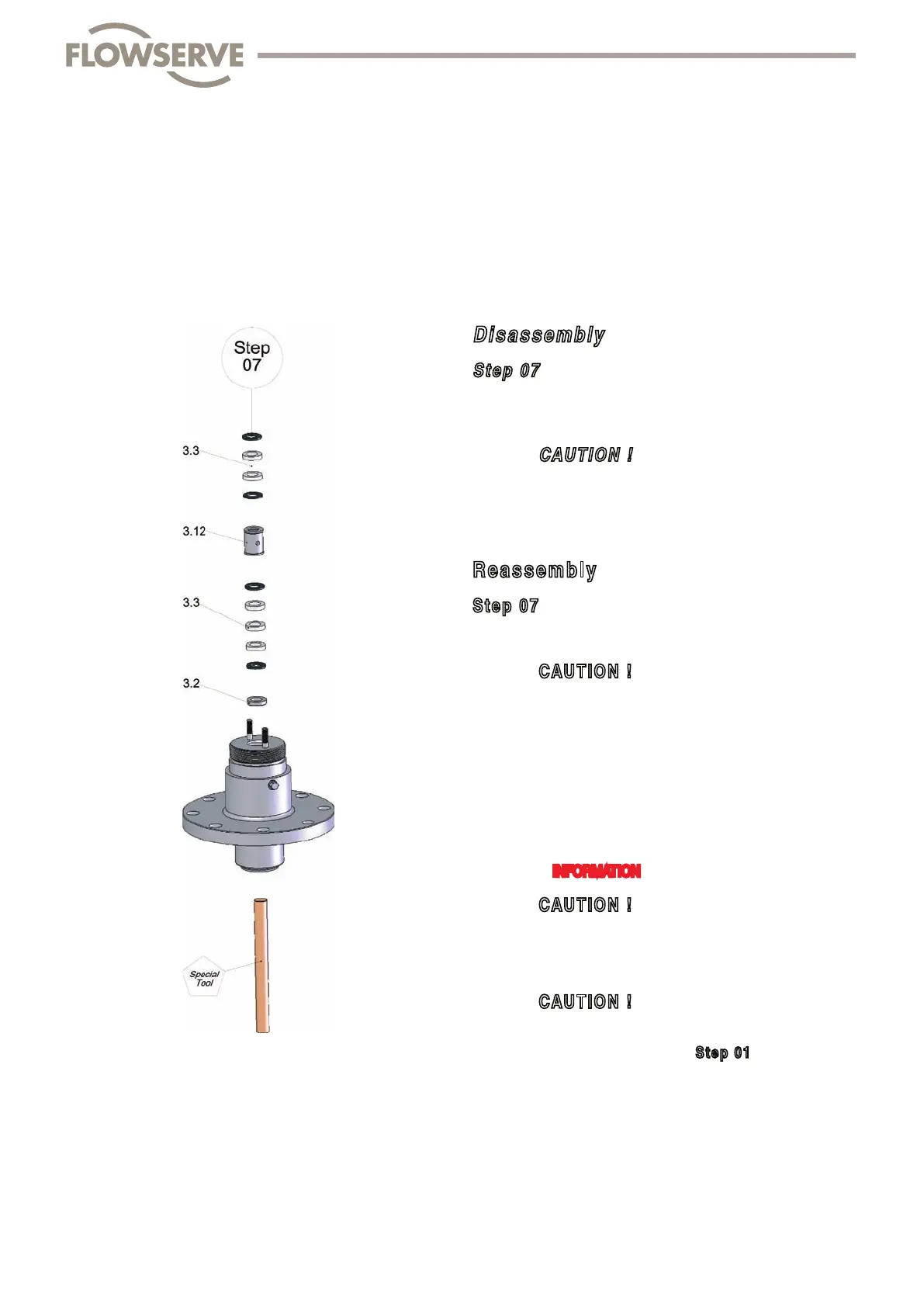

Disassembly
Step 07
• Remove packing (3.3) and bottom ring (3.2)
with Special Tool (Packing driver tool)
CAU TION !
Do not damage packing area and guide !
Reassembly
Step 07
Reassembly takes place in reverse order.
CAUTI ON !
Clean parts, check packing area and guide for
damage, grease stud screws !
( Damage to the packing packing area will lead to early
leaks in the packing unit )
Lubrication as per Table 06 (Page 65)
• Fit bottom ring (3.2), packing (3.3), lantern (3.12),
gland  ange (3.4), washers (3.8) and
hexagon nuts (3.6) in the sequence given,
follow INFORMATION on page 63 !
CAUTI ON !
Use new packing (3.3) !
• Tighten hexagon nuts (3.6 / 3.9) by hand  rst
CAUTI ON !
The hexagon nuts (3.6 / 3.9) are tightened
at the "Reassembly" step Ste p 01
as per Table 06 (Page 65)
