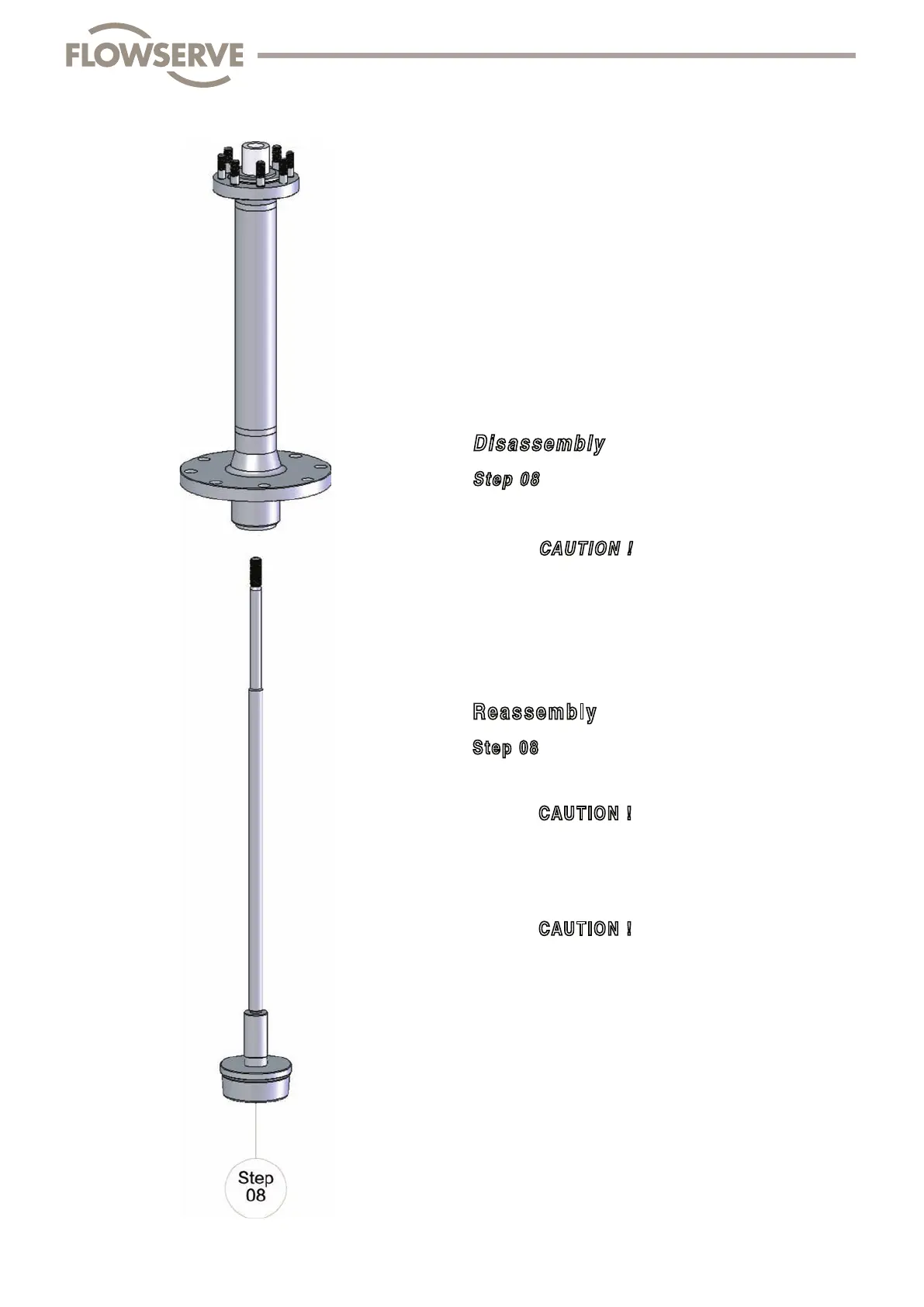

Disassembly
Step 08
• Remove plug unit from the bonnet
CAU TION !
Do not damage high quality stem surface
and plug guide !
Reassembly
Step 08
Reassembly takes place in reverse order.
CAUTI ON !
Clean parts, check plug unit and plug guide
in the bonnet for damage.
• Grease plug shaft lightly and insert in the bonnet
CAUTI ON !
Lubrication as per Table 06 (Page 65)
Do not grease stem !
