JetFlow Relay User Instruction – AIIOM000287
8
3.4 Label Verification
Verify that the labels match the intended application. See section 13, Hazardous Location Specifications, for more details.
 NOTE: The installer should mark the checkbox on the label that is appropriate for the intended use of the Logix 3800JF.

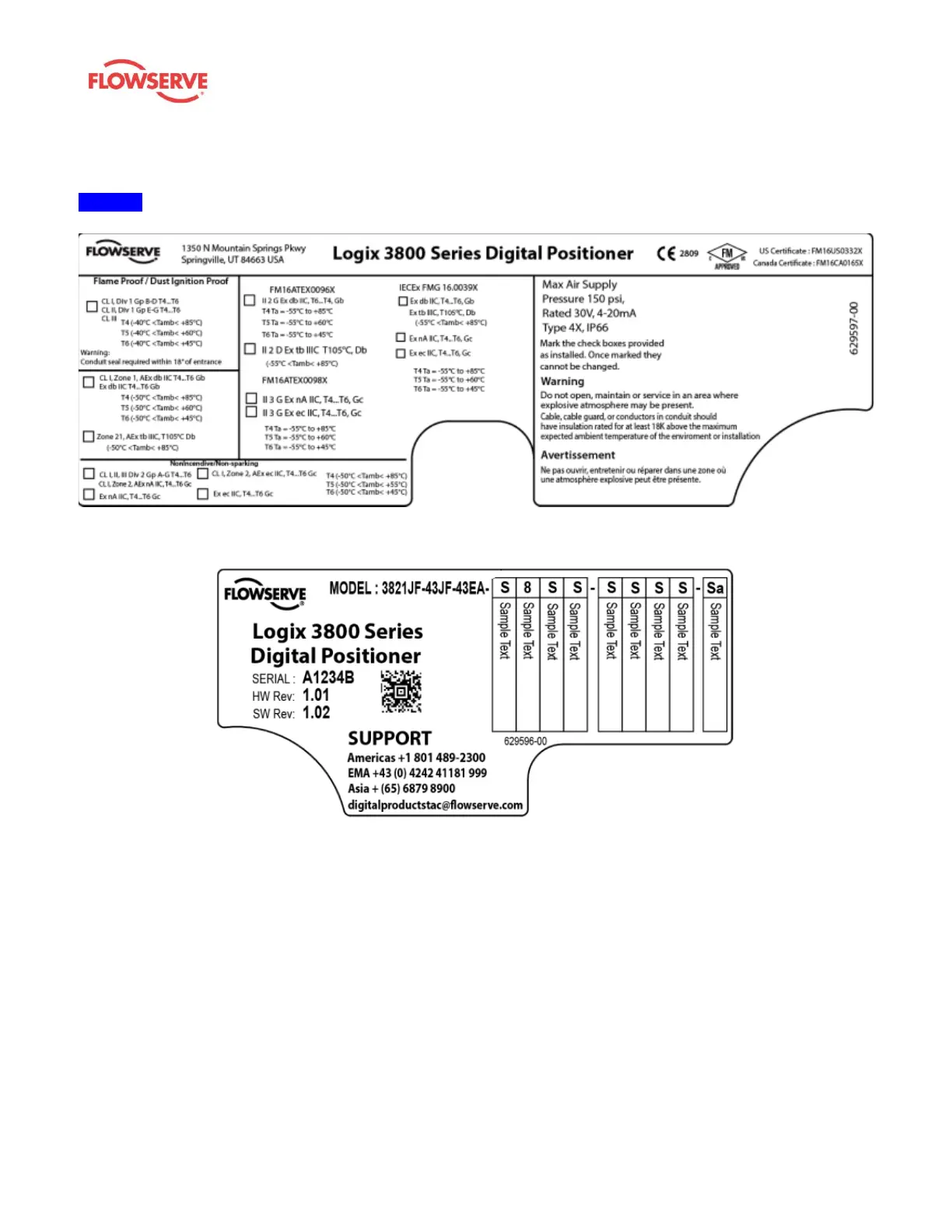

Figure 1: Certification Labels (Explosion Proof Housing)
Figure 2: Certification Labels (Explosion Proof Housing)
Figure 3: Model Code Label
