Cartridge Alignment Protractor
Correct cartridge alignment ensures the stylus is positioned properly relative to the
grooves on the record. Incorrect alignment can cause distortion and can also cause
unwanted wear and tear on your stylus.
Follow the instructions below to ensure your cartridge is mounted correctly.
Instructions
1. Cut out the Cartridge Alignment Protractor* and carefully cut out the spindle hole (S).
*See page 23 for cutout.
2. Place the protractor on the spindle.
3. With the stylus guard removed, gently place the stylus on point A.
4. Rotate the cartridge so that the sides of the cartridge are parallel with the grid lines (C).
5. PlacethestylusonpointBandconrmthesidesareparallelwiththegridlines(D).
6. IfthecartridgesidesarenotparallelatpointBmovethecartridgeforward(g.1)or
backward(g.2)andrepeatsteps4-6untilthesidesareparallelatbothpoints.

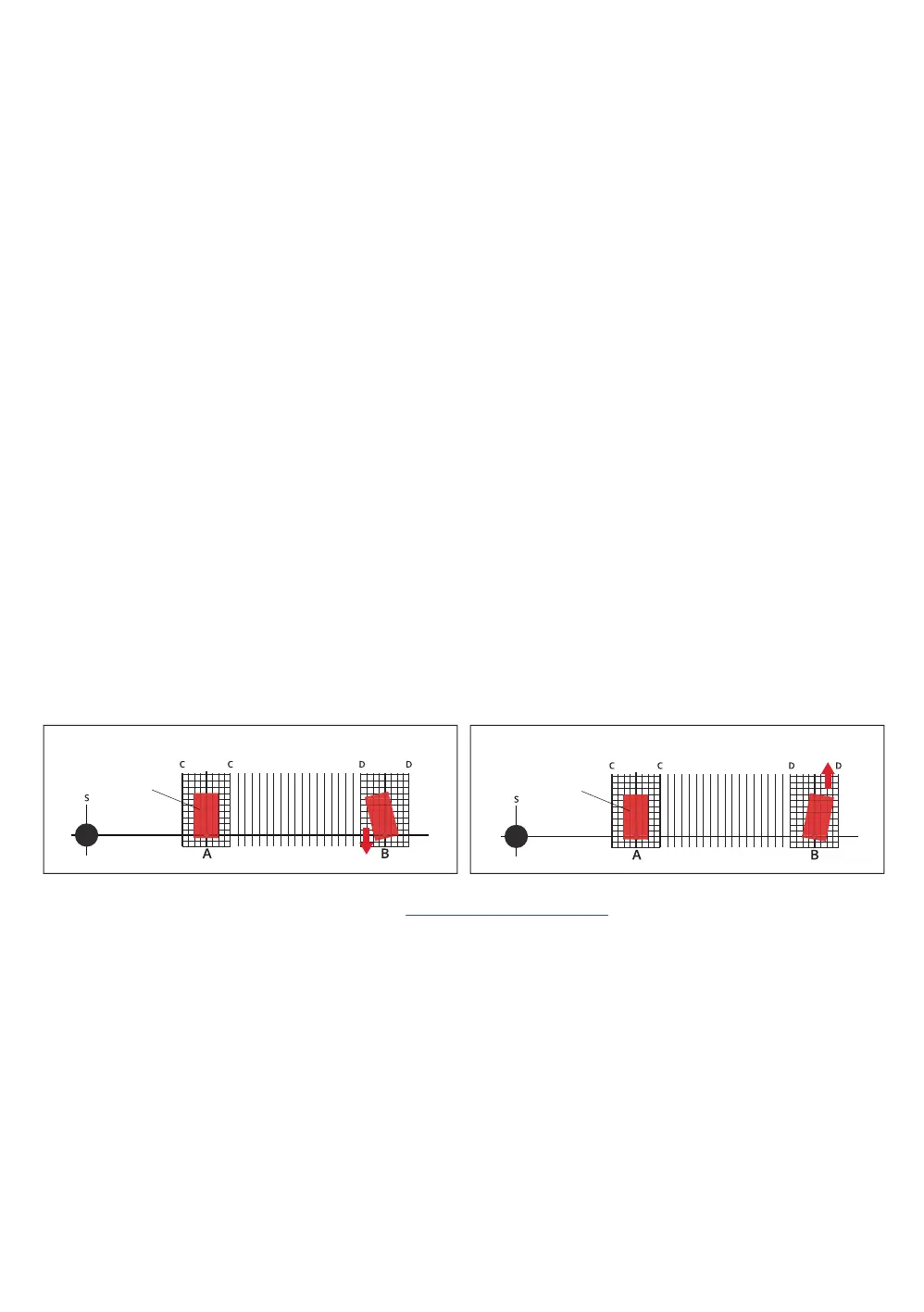

(fig.1)
cartridge
cartridge
(fig.2)
