Fluid Audio SRI-2 - Panel Descriptions; Top Panel Layout and Controls

12 pages

To Next Page

To Previous Page

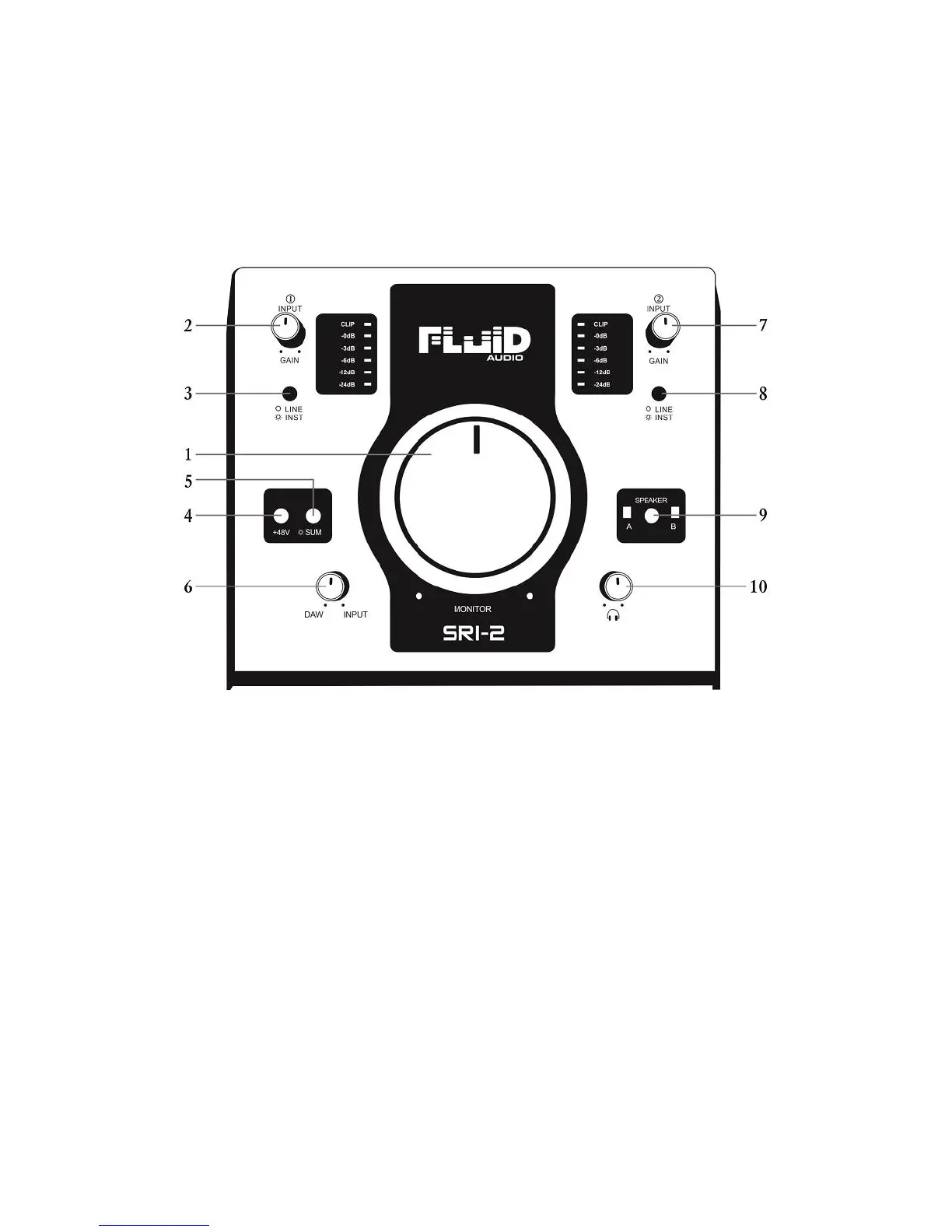

Top Panel

1. Master Volume Knob (monitor output) 6. Direct Monitoring Knob

2. Input Gain Control Knob (Ch. 1) 7. Input Gain Control Knob (Ch. 2)

3. Line/Mic/Instrument Button (Ch. 1) 8. Line/Mic/Instrument Button (Ch. 2)

4. 48V Phantom Power Button 9. Speaker AB Switch

5. SUM (Input summing) Button 10. Headphone Volume Knob
