List of Replaceable Parts
Service Centers
5
5-17
Table 5-2. A1 Motherboard PCB Assembly
Reference
Designator Description
Fluke
Part No.
Total
Quantity
J10, J20, J30,
J40, J50, J70, J90
Connector, PCB Edge, Rec., 0.150 CTR, 40 Position 422550 7
J1 Header, 1 Row, 0.156 CTR, 10 Pin 446724 1
J10, J85 Connector, PCB Edge, Rec., 0.150 CTR, 24 Position 295352 2
J80 Connector, PCB Edge, Rec., 0.150 CTR, 22 Position 459883 1
MP1 Cover, AC Switch 475681 1
MP2 Pushbutton, SML Rect. C L Repl., Green 419747 1
MP3 Pin, Single, PCB, 0.025 Sq. 267500 3
MP4 Connector, Accessory, PCB Edge, Polarizing Insert 424572 19
MP5 Bushing, Snap-In, Nylon, 0.250 ID 102996 2
MP6 Spacer, Swaged, Round, Brass, 6-32 x 0.500 284380 4
S4 Switch, On-Off 453605 1
ajs35f.wmf

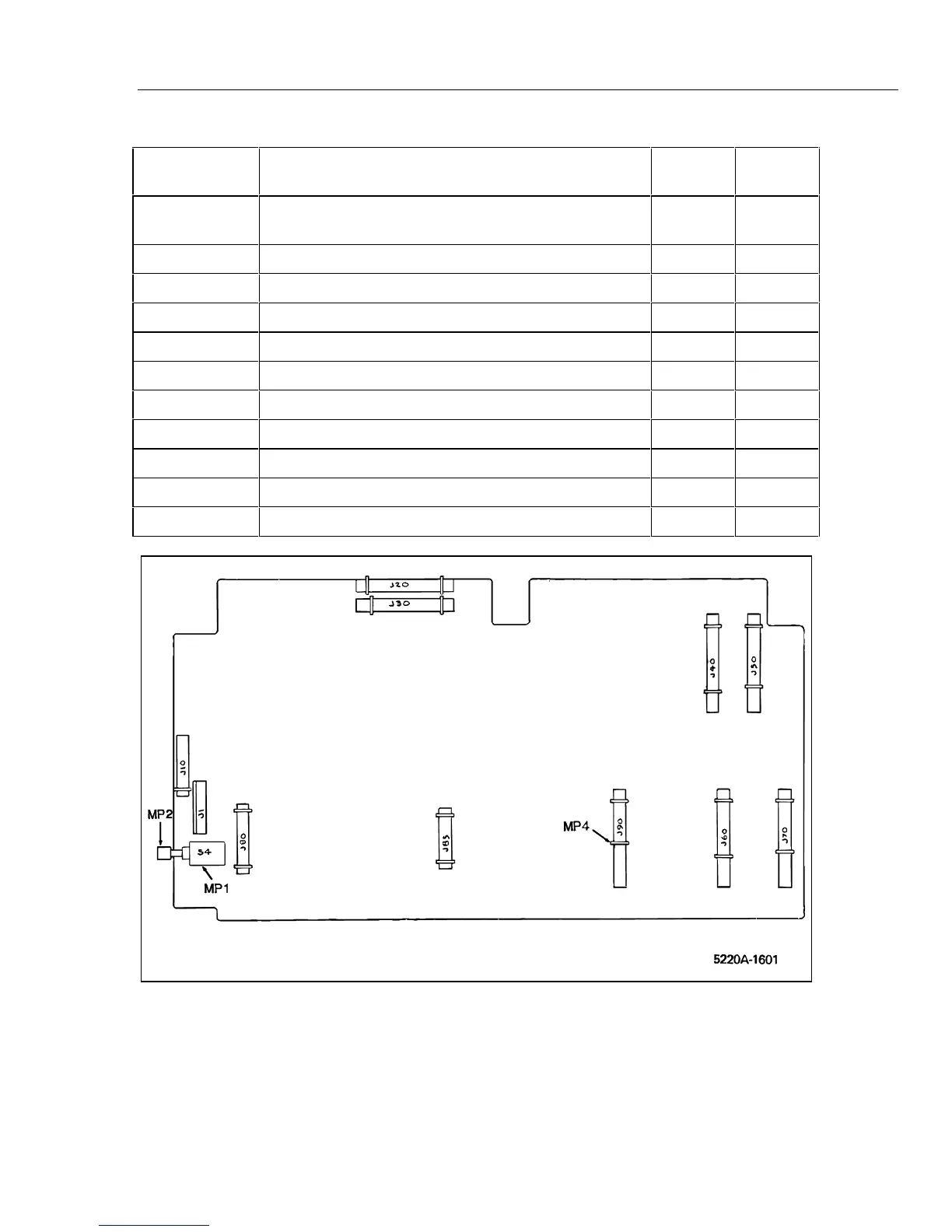

Figure 5-2. A1 Motherboard PCB Assembly
