Table 5-3. A2 Power Transformer Assembly
Reference
Designator Description
Fluke
Part No.
Total
Quantity
F4 – F7 Fuse, 0.25 x 1.25, 0.5 A, 250 V, Slow 109322 4
H1 Screw, Machine, PH, P, Steel, 8-32 x 0.250 228890 8
H2 Screw, Machine, PH, P, Steel, 6-32 x 0.250 152140 8
MP1 Transformer Plate, Inboard 489468 1
MP2 Transformer Plate, Outboard 489476 1
MP3 Forward Transformer Terminator Assembly 660217 1
MP4 Aft Transformer Terminator Assembly 660225 1
MP5 Grommet, Slot, Rubber, 0.750, 0.875 380782 1
S1–S3 Switch, Slide, DPDT, Power 234278 3
T1 Power Transformer 477000 1
XF4–XF7 Fuse, Clip, PCB, 1/4 x 1-1/4 756460 8
ajs37f.wmf

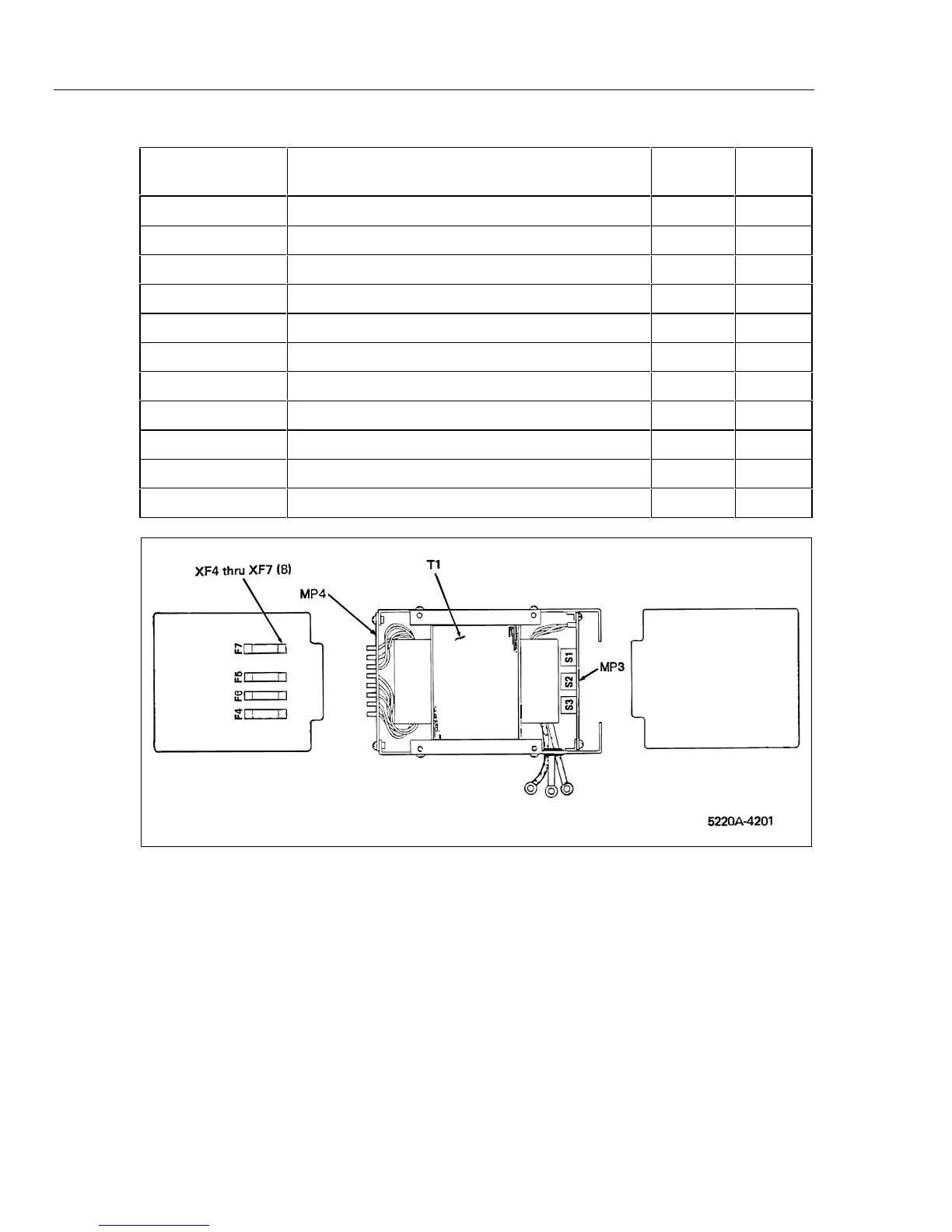

Figure 5-3. A2 Power Transformer Assembly
