Table 5-7. A6 Driver PCB Assembly (cont.)
Reference
Designator Description
Fluke
Part No.
Total
Quantity
R28, R29 Resistor, CF, 6.8 k, ±5 %, 0.25 W 368761 2
R30, R31 Resistor, CC, 10 Ω, ±10 %, 0.5 W 108092 2
TP1 – TP4 Terminal, Un-insulated, Feed-through, Hole, Turret 179283 4
VR1, VR2 h Zener, Uncompensated, 4.3 V, 5 %, 20.0 mA, 0.4 W 180455 2
h Indicates a static-sensitive part.
ajs41f.wmf

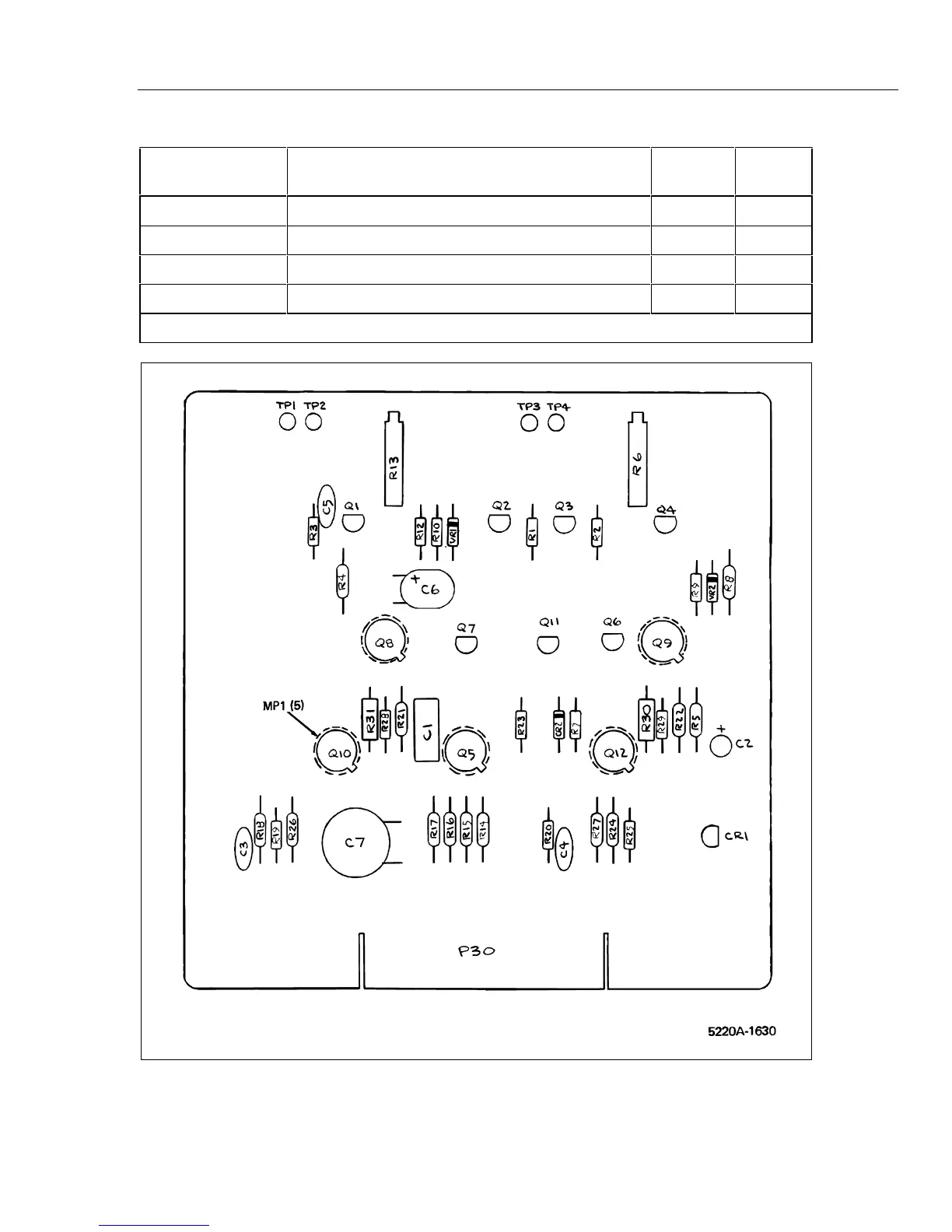

Figure 5-7. A6 Driver PCB Assembly
