ASSEMBLY MANUAL __ REL . 1.1
___________________________________________________________________________
© Copyright by
FLY
PRODUCTS s.r.l. Pag.

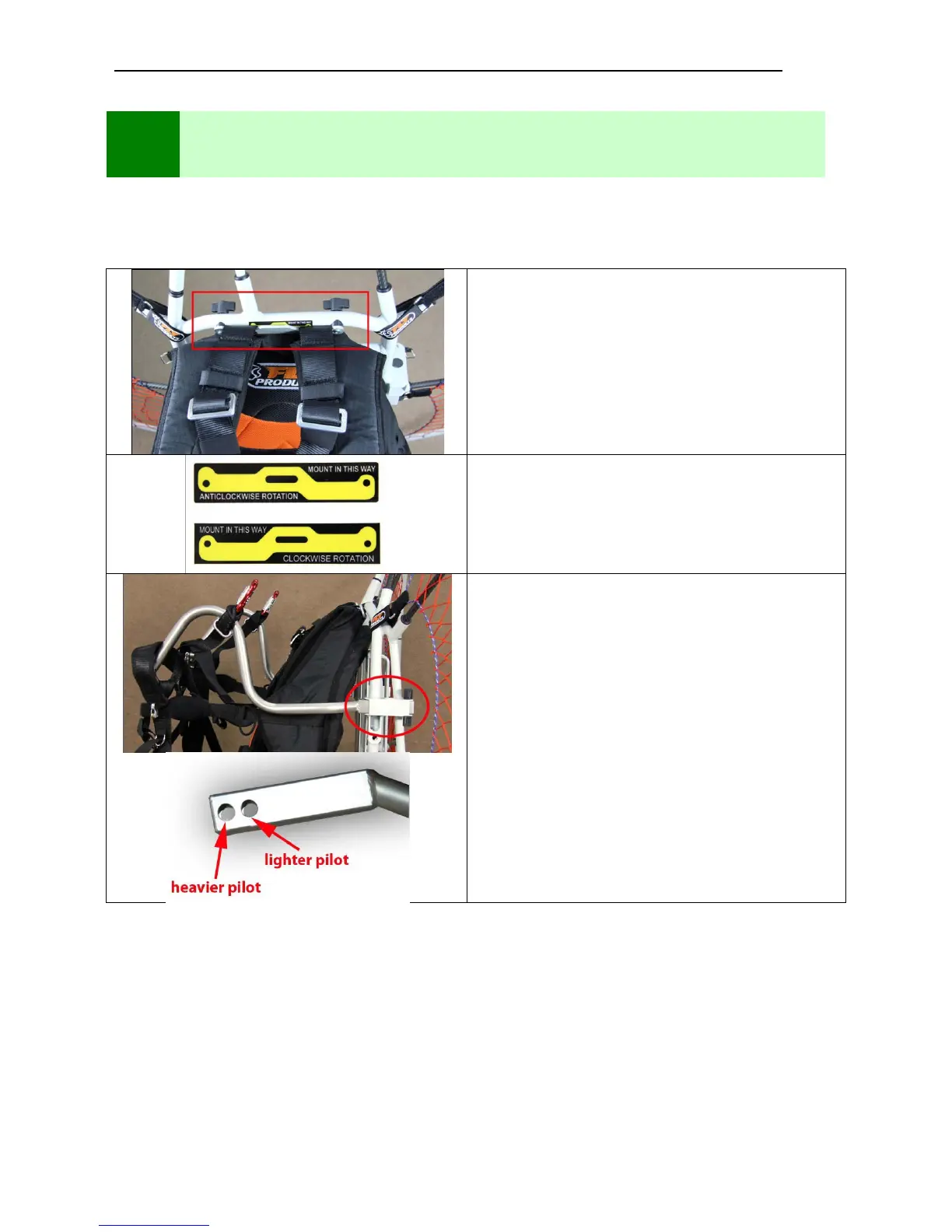

The harness is fastened to the frame on three anchor points: at the top with two Butterfly bolts sideways
with two distance bar and bottom with three belts.
1) Upper hooks harness with two
Butterfly bolts
Attach the harness to the chassis with the plate and
tighten the two bolts with the butterflies.
ATTENTION
Mount the plate as is indicated on the sticker of
your paramotor
2)
Assembly of the spacer bars
Insert the distance bar into the square slot located
on the Central frame and secure them with bolts
and butterflies
Assemble the distance bar in one of two holes
according to the pilot weight.
5
ASSEMBLY OF: (FIXED HANG POINT)
