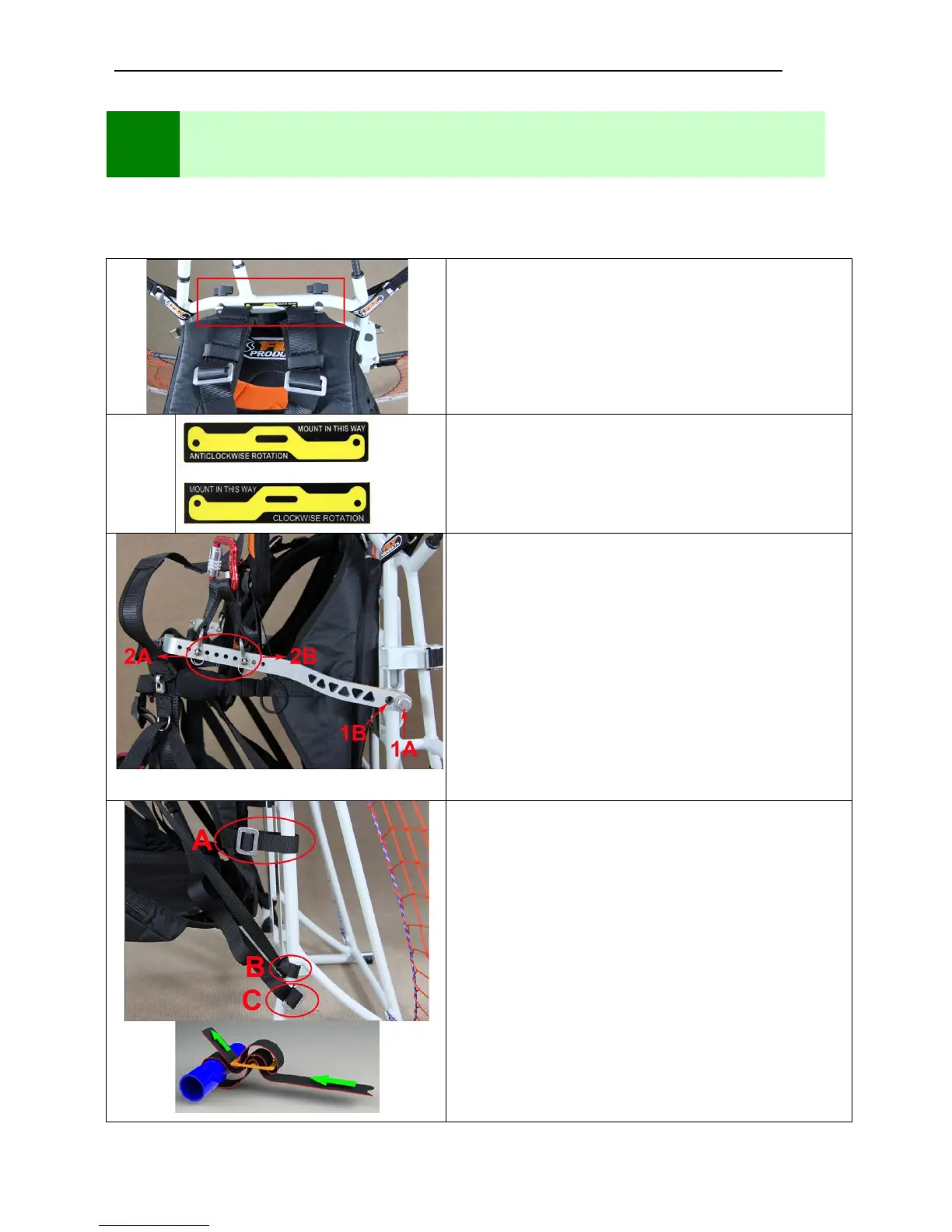

The harness is fastened to the frame on three anchor points: at the top with two Butterfly bolts sideways
with two distance bar and bottom with three belts.
1) Upper hooks harness with two Butterfly
bolts
Attach the harness to the chassis with the plate and
tighten the two bolts with the butterflies.
ATTENTION
Mount the plate as is indicated on the sticker of your
paramotor
2) Fixing the frame distance bars
Mount distance bars according to two
regulations:
Regulation 1:
1A = Pilots over 85 kg.
1B = Pilots less 85 kg.
Regulation 2:
Direction 2A (forward) Heavy Pilots
Direction 2B (back) Light Pilots
3)
Bottom bracket of the frame with three straps
4
ASSEMBLY OF (LOW ACTIVE HANG POINT)
