Step n. 3 : Lock the velcros.
Once mated the connections is better to lock the velcro straps immediately as shown below:

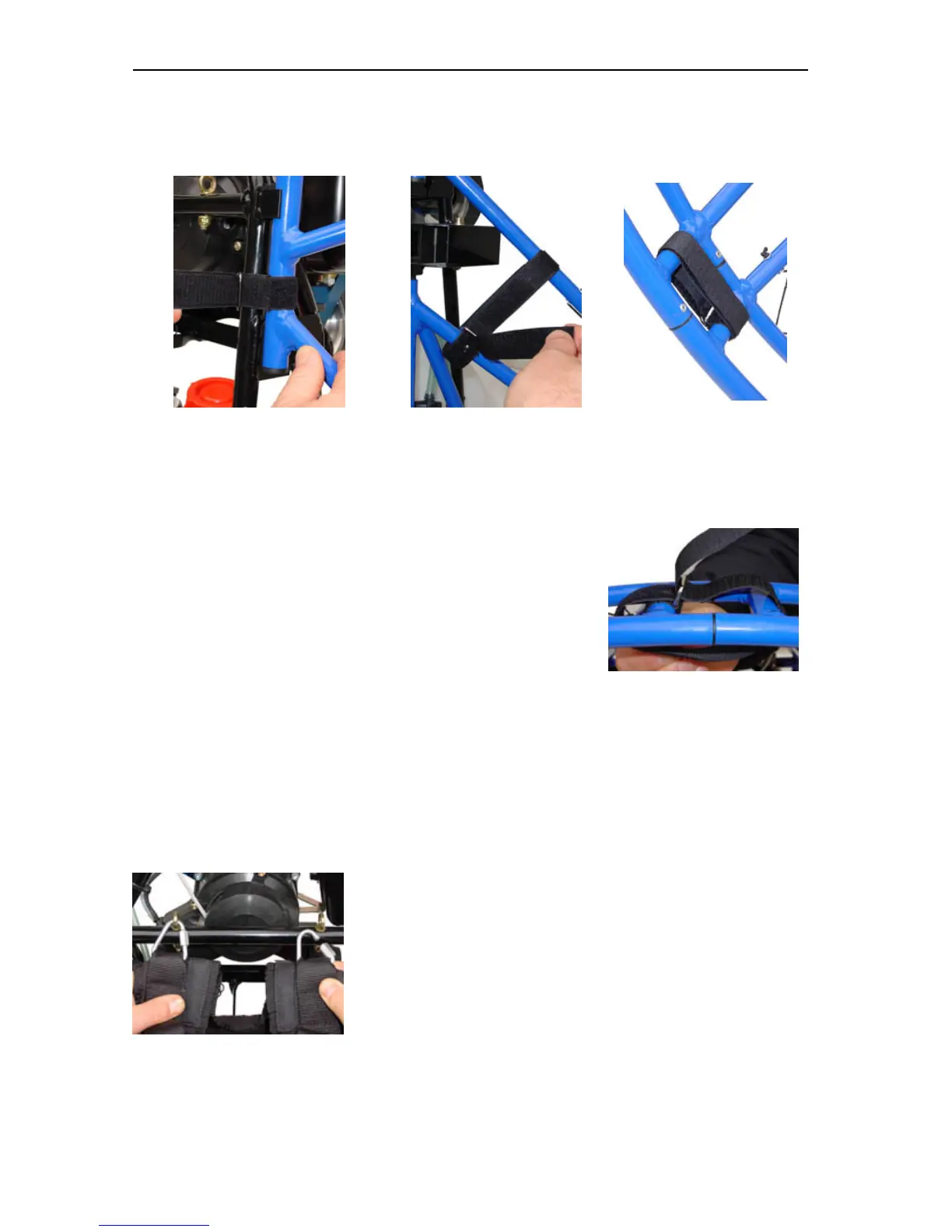

Fig. 7 - Lock the central Fig. 8 - Lock the middle Fig. 9 - Lock the lower
Step n. 4 : Mount the other side frame.
NOTE! When finished, check all velcro straps locking.
This completes the assembly of the prop cage.
2.2 Harness Mounting
The harness mounts to the central frame with six attachment points.
They are: the top harness triangular carabiners, the ground handling straps, and the distance bars.
Mount the other side frame repeating the previous step 2.
When done, join upper frames inserts and lock with velcro strap
as in fig. 10
Repeat step 3 on this side. Fig. 10 - Lock the upper
Fig. 11 - upper hooks
First engage the arness to the central unit
hooking the two triangular carabiners to
the eyelets bolts as shown in Fig. 11.
