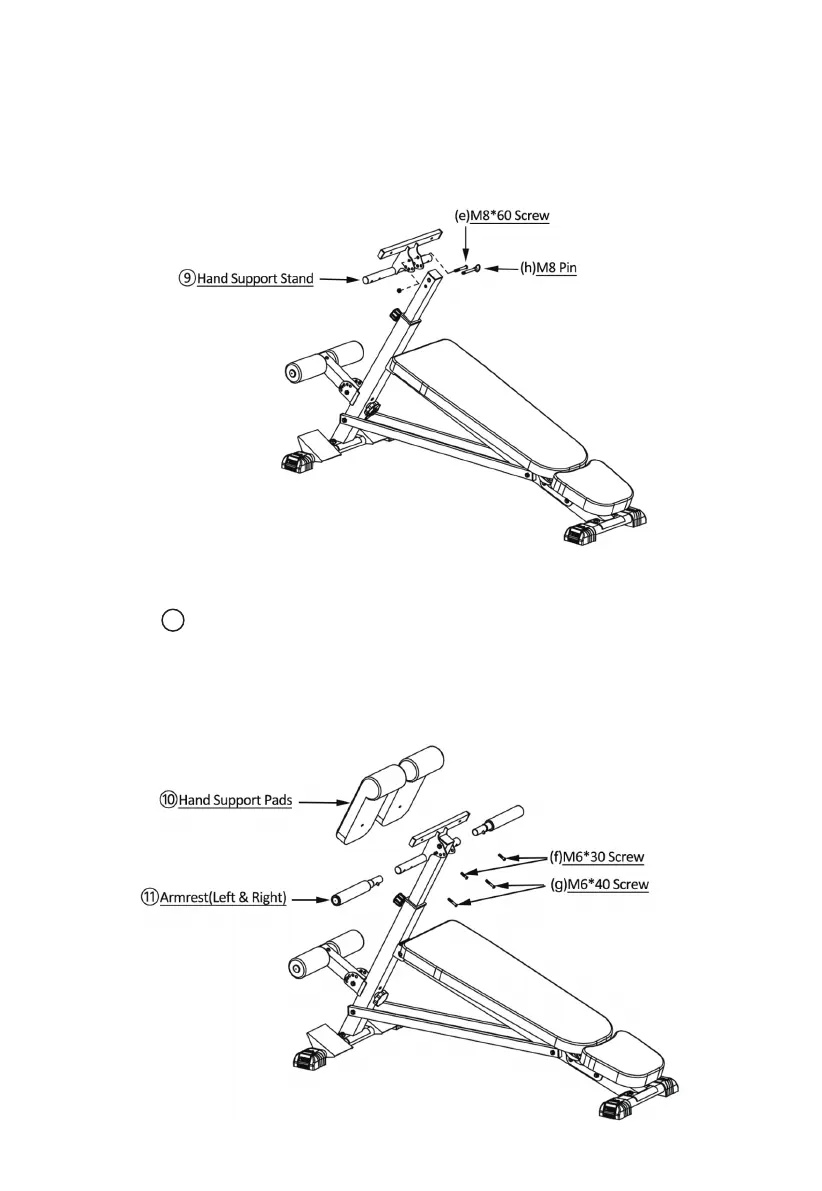

- Connect ⑨Hand Support Stand to Front Support Tube with
(e)M8*60 Screw, then put (h)M8 Pin in the Tube to fix the
angle
STEP 5
-Install 2 Armrest(Left & Right) into Hand Support Stand
-Connect ⑩Hand Support Pads to the Stand, with 4 Screws.
-Pay attention that the TOP 2 screws are (f)M6*30 Screw, the 2
screws BELOW are (g)M6*40 Screw
STEP 6
11
To Next Page
