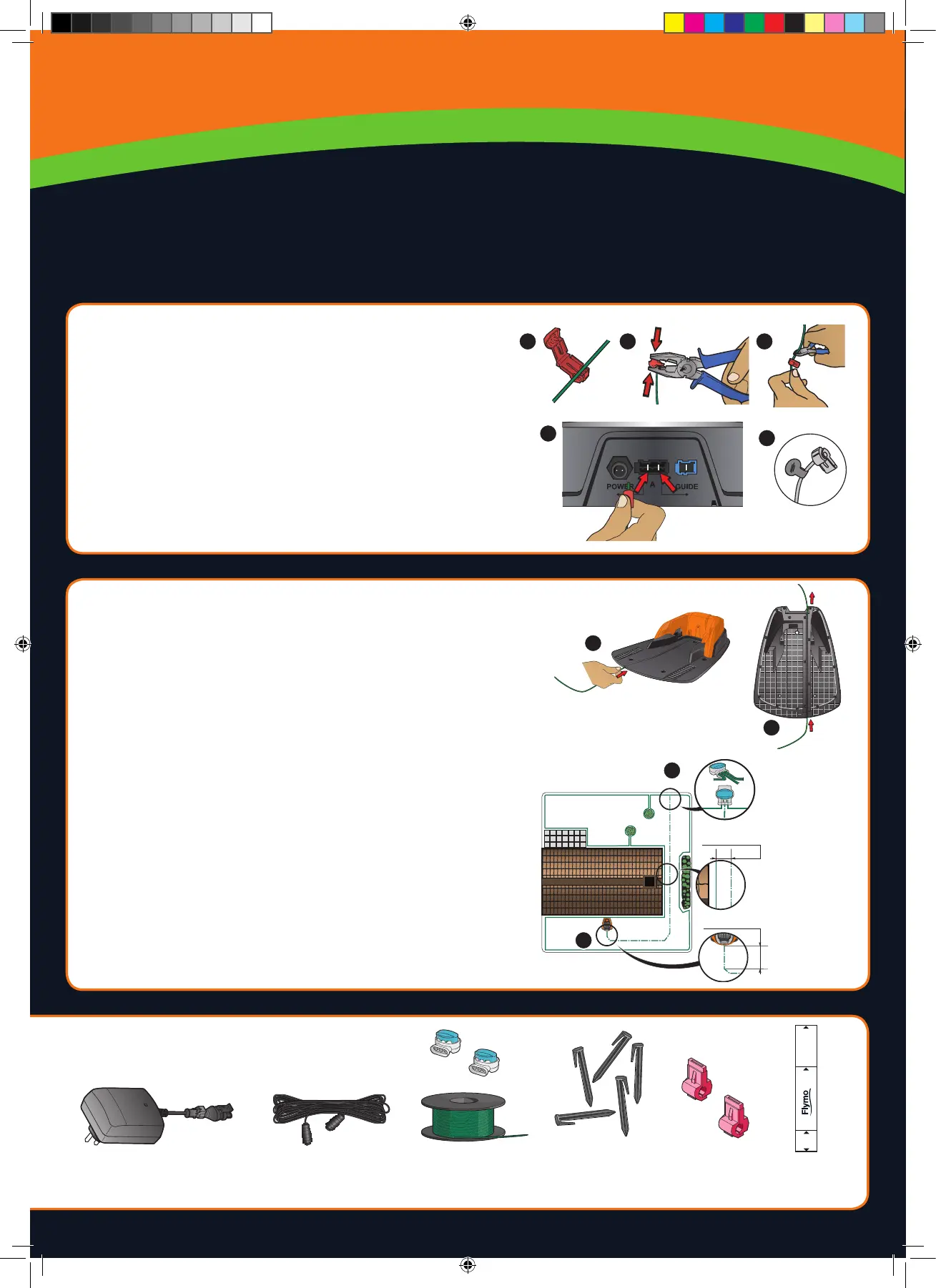

4. Placement of and connecting the
guide wire
See chapter 3.6 in the Installation Manual
1. Run the guide wire through the slot at the bottom of the charging
station.
2. Fit the connector to the guide wire in the same way as for the
boundary wire, according to the instructions above.
3. Fasten the connector to the contact pin marked Guide on the
charging station.
4. Lay the guide wire at least 2 metres straight out from the front edge
of the charging station.
5. Run the guide wire to the point on the boundary loop the connection
will be made. Avoid laying the wire at tight angles.
6. Cut the boundary wire with a wire cutters at the centre of the eyelet
that was made in point 2.3.
7. Connect the guide wire to the boundary wire using the
accompanying couplers. Press the couplers completely together
with a pair of pliers.
1 2
4
3
3. Connecting the boundary wire
See chapter 3.5 in the Installation Manual
1. Open the connector and lay the wire ends in the recesses on each
connector.
2. Press the connectors together using a pair of pliers.
3. Cut off any surplus boundary wire. Cut 1 to 2 cm above the connectors.
4. Press the connectors onto the contact pins, marked A, on
the charging station. It is important that the right-hand wire
is connected to the right-hand contact pin, and the left-hand
wire to the left-hand pin.
5. Mark the wires with the accompanying cable markers. This makes it easier
to reconnect the wires correctly.
Power supply Low voltage cable Boundary wire
and couplers
Pegs Connectors Measurement
gauge
GETTING STARTED WITH THE FLYMO
120 0 R ROBOTIC LAWNMOWER
5cm
0cm
20cm
30cm
30 cm / 12”
5
