Flymo CONTOUR User Manual

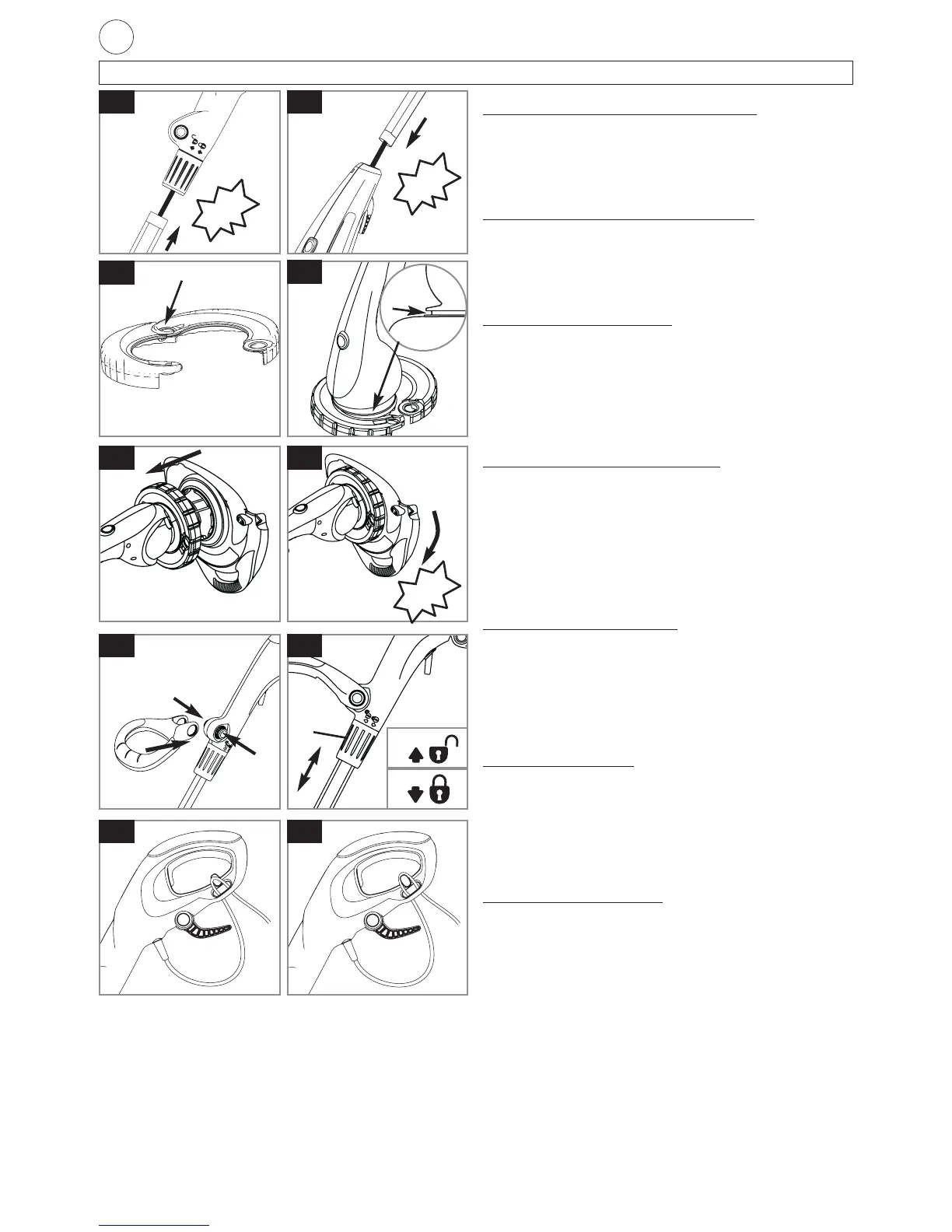

Assembly of Switch Handle to Tube (A1)
• Ensure that the internal cable is not twisted.
1. Insert the tube into the switch handle.
2. Push until it clicks into position.
• ENSURE THAT THE TUBE IS FULLY LOCATED BY
ATTEMPTING TO REMOVE IT.
Assembly of Trimmer Head to Tube (A2)
• Ensure that the internal cable is not twisted.
1. Insert the tube into the trimmer head.
2. Push until it clicks into position.
• ENSURE THAT THE TUBE IS FULLY LOCATED BY
ATTEMPTING TO REMOVE IT.
Wheel Assembly (B1) & (B2)
1. Fix the 2 halves of the wheel together as illustrated in
fig B1.
2. Attach the wheel to the trimmer making sure that it is
located into the groove on the trimmer head (B2).
3. Clip the wheel together on the other side, making
sure it is secure.
4. The wheel should turn freely.
Safety Guard Assembly (C1) & (C2)
1. Locate the safety guard over the cutting head. En-
sure the nylon line is fed through the hole in the
safety guard as illustrated in fig C1.
2. Push into location and turn safety guard in the direc-
tion illustrated in Fig C2, until a click is heard and the
safety guard is securely locked in position.
• ENSURE THE SAFETY GUARD IS SECURELY IN
PLACE BY ATTEMPTING TO TWIST GUARD.
Steady Handle Assembly (D)
1. Depress the two buttons on the sides of the switch
handle.
2. Locate the steady handle over the buttons and re-
lease the buttons.
3. Adjust the steady handle to the most comfortable op-
erating position by depressing the buttons and mov-
ing the handle.
Height Adjustment (E)
1. Turn height adjuster (E1) in the direction indicated to
un-lock (E2).
2. Adjust the length of the tube to the most comfortable
operating position.
3. Turn height adjuster in the opposite direction to lock
(E3).
• ENSURE THAT THE TUBE IS FULLY SECURED.
Cable Restraint (F1) & (F2)
1. Form loop in mains cable and push the loop through
the slot as illustrated in picture (F1).
2. To secure, position loop over the hook and pull the
cable back through the slot as illustrated in picture
(F2).
3
Assembly Instructions
A1 A2
F1 F2
B2
C1
B1
C2
1
CLICK!
CLICK!
CLICK!
D
E
1
3
2
1
2

Flymo CONTOUR Specifications

General

Brand	Flymo
Model	CONTOUR
Category	Trimmer
Language	English
