7
ASSEMBLY

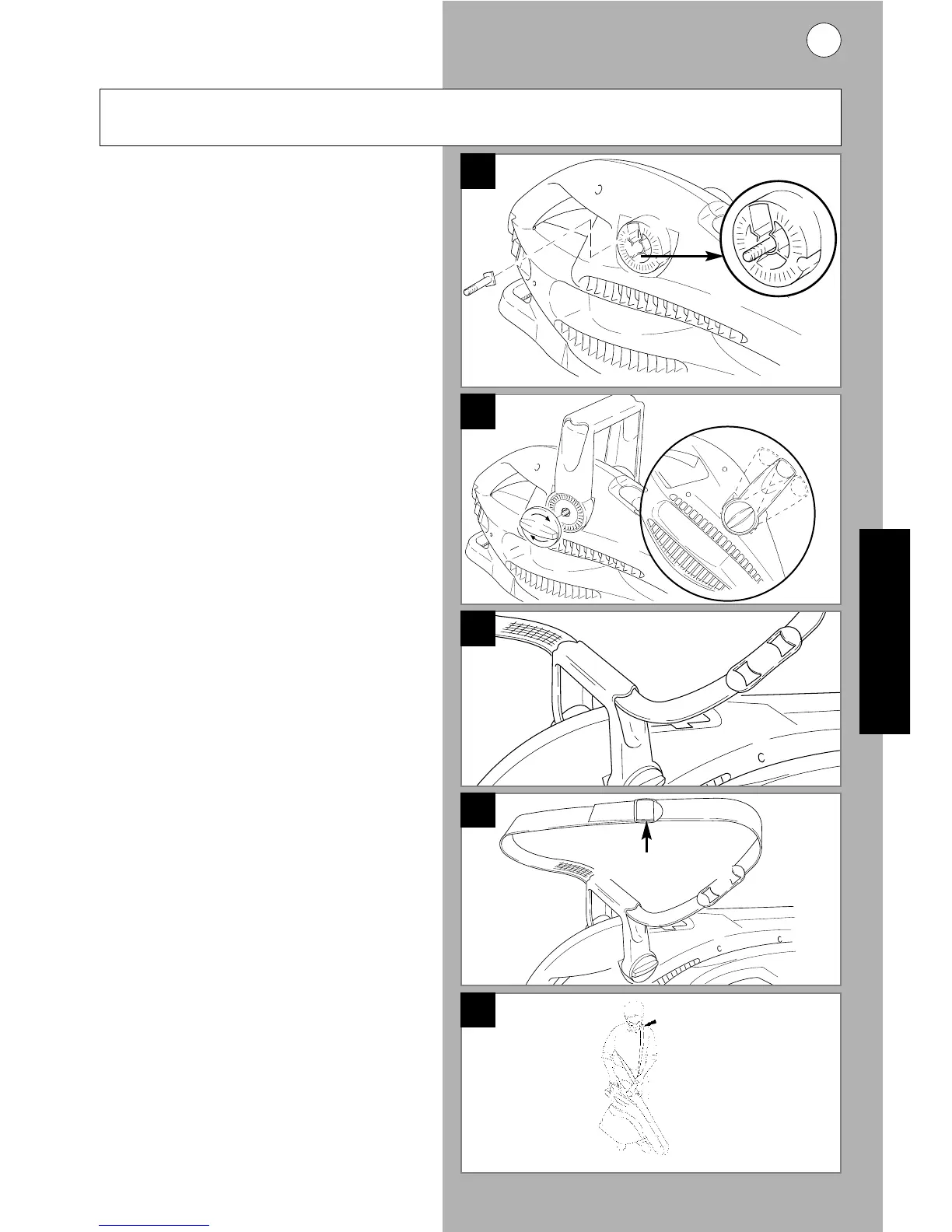

Fitting the Handle Bolt (H)
1. Place handle bolt into the
location slot on the product and
slide into place.
See Fig. H.
2. Repeat on the other side.
Fitting the Handle (J)
1. Locate handle onto handle bolts
on each side of the product.
2. Secure handle by turning handle
knobs clockwise. See Fig J.
3. The handle can be adjusted by
turning handle knobs 3 full turns
anti-clockwise, moving handle to
position required and
re-securing handle as described
in 2.
Fitting The Shoulder Harness (K),
(L) & (M).
1. Thread strap through the slots in
the handle
See fig K.
2. Thread strap through the buckle.
See fig L. Adjust as required to
ensure the shoulder pad is in the
most comfortable position. See
fig. M
Shoulder Harness
K
L
buckle
M
H
J
