Flymo HVT52 - Product Rating Label; Fuel Mixing Instructions; Assembly and Adjustment

4
(GB) ASSEMBLY

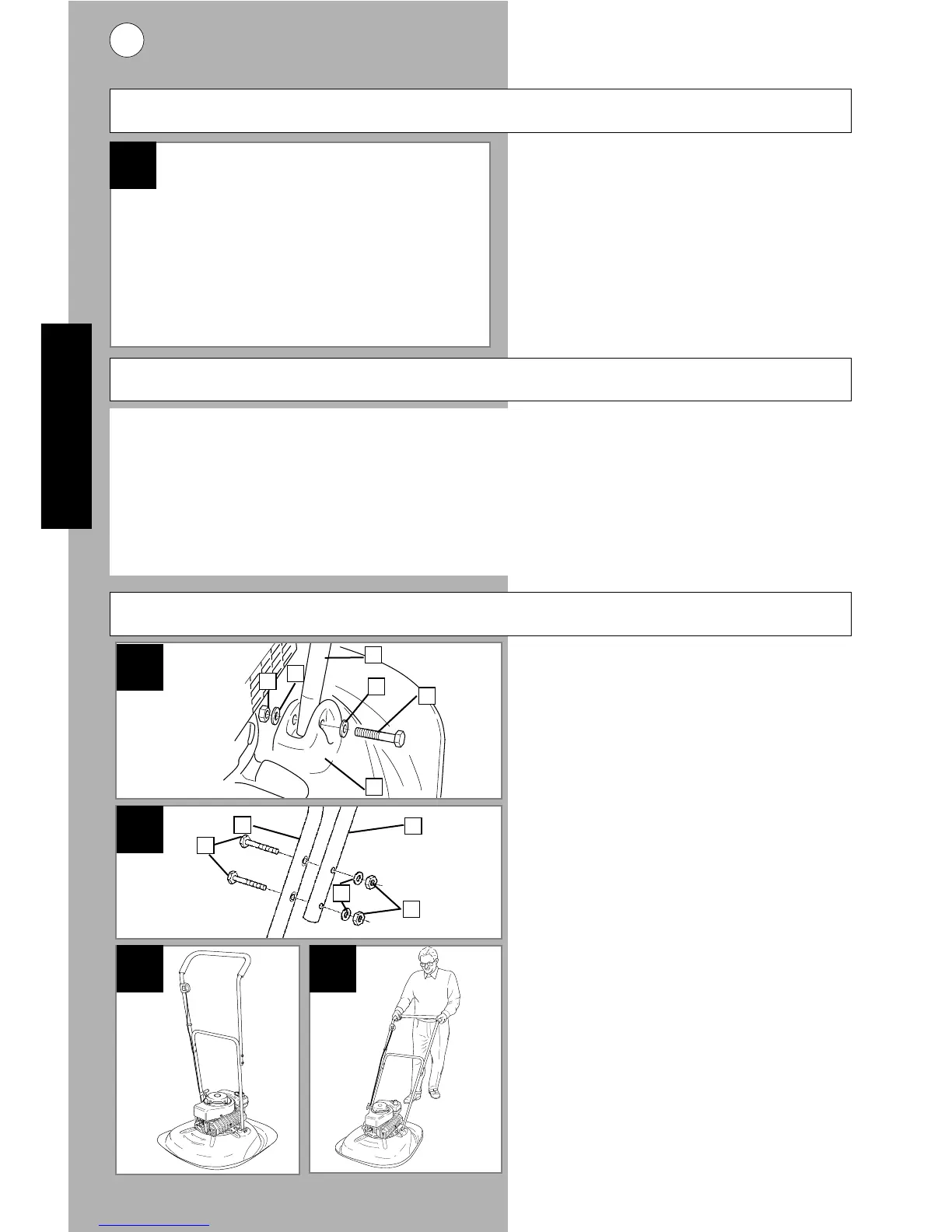

Assembly of lower handle to deck
(Fig C)
With the trimmer on the ground:-
1. Remove the bolts (C1), washers (C2)
and lock nuts (C4) from the polythene
bag.
2. Place one washer (C2) on to the bolt
(C1) and secure the lower handle (C4)
by placing bolt (C1) through deck
bracket (C5) and lower handle (C4).
3. Place washer (C2) on bolt and secure
with lock nut (C3).
Assembly of upper handle to lower
handle (Fig D)
Assemble upper handle (D5) to lower handle
(D4) by fitting bolts (D6) and washers (D2)
and securing with lock nuts (D3).
Handle Position
The handle position can be altered by
moving it forward for the park position (Fig
E) or back for the trimming position (Fig F).
Product Rating Label
Product Number . . . . . . . . . . . . . . . . . .
Model Number . . . . . . . . . . . . . . . . . . . .
Serial Number . . . . . . . . . . . . . . . . . . . .
Date of Purchase . . . . . . . . . . . . . . . . . .
Place of Purchase . . . . . . . . . . . . . . . . .
•PLEASE KEEP PROOF OF PURCHASE•
Every Flymo product is uniquely identified by
a silver and black product rating label.
To ensure you have full product information
when obtaining spares or advice from one of
our approved service centres, or if you need
to contact Flymo/Partner's own customer
service department, you should make a note
in the space provided of the information
shown in fig.B. It will also be useful to make
a note of the date and place of purchase
before you return your guarantee card.
B
Assembly and Adjustment
C
D
4
1
5
2
3
5
2
3
4
6
E F
2
Fuel Mixing Instructions
1. Ensure mixing bottle and cap are clean and standing on a level surface.
2. Add fresh regular grade unleaded petrol up to the 1 litre mark on the bottle.
3. Add a good quality 2 stroke oil, to the 25 : 1 mark (40 ml of oil) on the bottle.
4. Screw cap on, shake container until petrol and oil are thoroughly mixed.
5. Clean fuel tank filler cap and fill fuel tank.
● UK ONLY:- Flymo/Partner manufacture a specially designed fuel mixing bottle. For further
information contact your local Flymo/Partner Service Centre/Stockist or contact the
Flymo/Partner Customer Careline on 01325 300303
