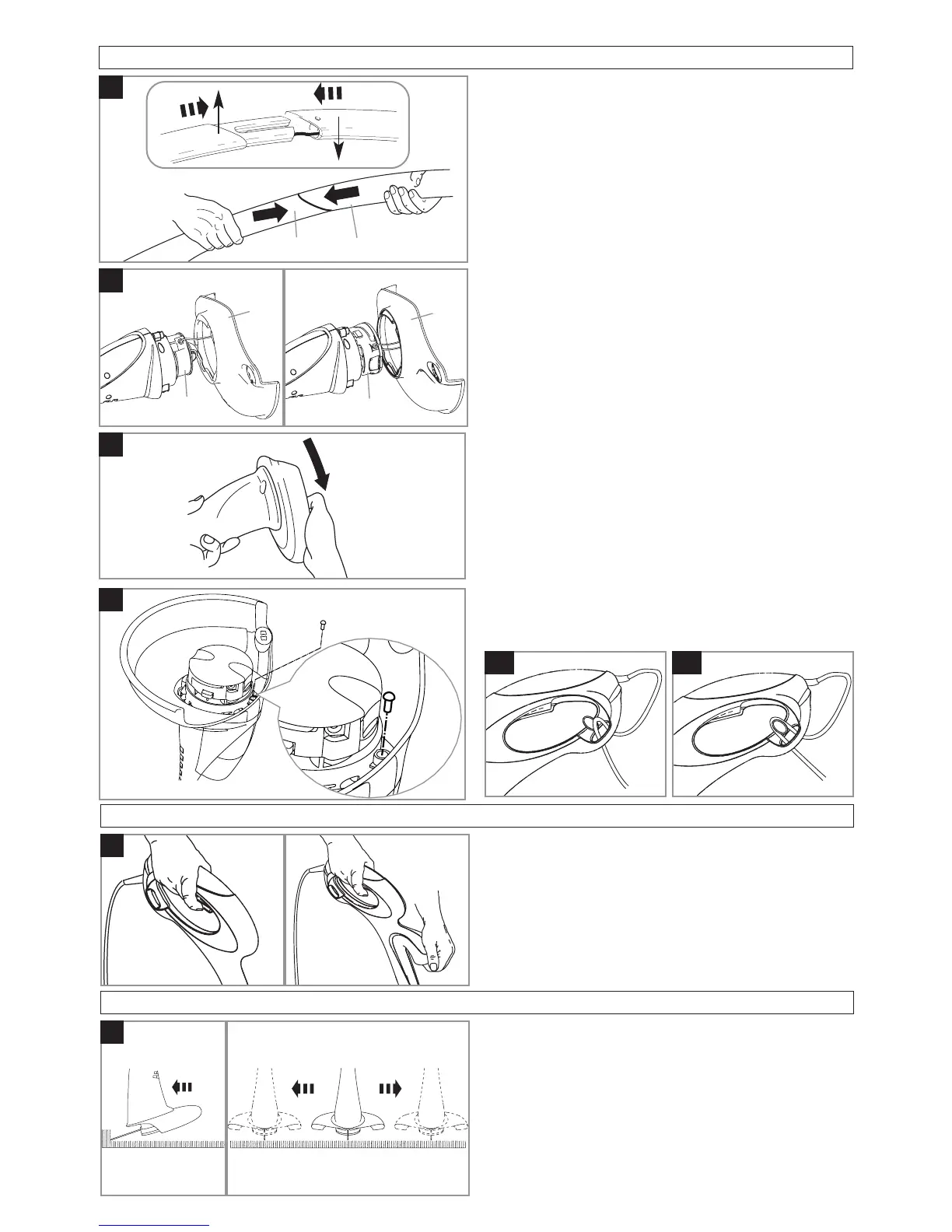

Assembly Instructions
Shaft Assembly (A)
1. Locate the lower shaft (A1) into the upper shaft (A2).
2. Grasp firmly and hold steady the lower shaft. Locate
the upper shaft and snap together firmly.
• The unit is correctly assembled when the gap be-
tween the upper and lower shaft has been
closed.
Safety Guard Assembly (B) & (C)
1. Locate the safety guard (B1) over the cutting head
(B2). Ensure the nylon line is fed through the hole in
the safety guard as illustrated in fig B.
2. Push into location and turn safety guard in the direc-
tion illustrated in Fig C, until a click is heard and the
safety guard is securely locked in position.
3. With the screw provided, insert into the guard as il-
lustrated in Fig D and tighten to secure.
• ENSURE THE SAFETY GUARD IS SECURELY IN
PLACE BY ATTEMPTING TO TWIST GUARD.
Cable Restraint (E1) & (E2)
1. Form loop in mains cable and push the loop through
the slot as illustrated in picture (E1).
2. To secure, position loop over the hook and pull the
cable back through the slot as illustrated in picture
(E2).
A
1
2
Starting and Stopping
1
2
B
Mini Trim/MT21
Mini Trim Auto/
Auto +/MT25
C
2
1
E1 E2
F
WARNING
Cutting head continues to rotate after the trimmer
has been switched off.
To start your trimmer
Squeeze the switch lever (F).
To stop your trimmer
Release the switch lever (F).
2
1
D
How to Trim
WARNING: The use of eye protection is recom-
mended. Do not lean over the trimmer guard whilst
trimming, objects may be thrown by the cutting line.
Do not allow cutting head to rest on the ground. Do
not overload your trimmer. Overloading can be
avoided by making sure the motor speed does not
drop unduly. Disconnect the mains electricity supply
before attempting any maintenance or adjustment.
1. Cut with cutting line at an angle using the tip (G).
2. Swing trimmer in and out of the cutting area taking
small cuts (G).
G
