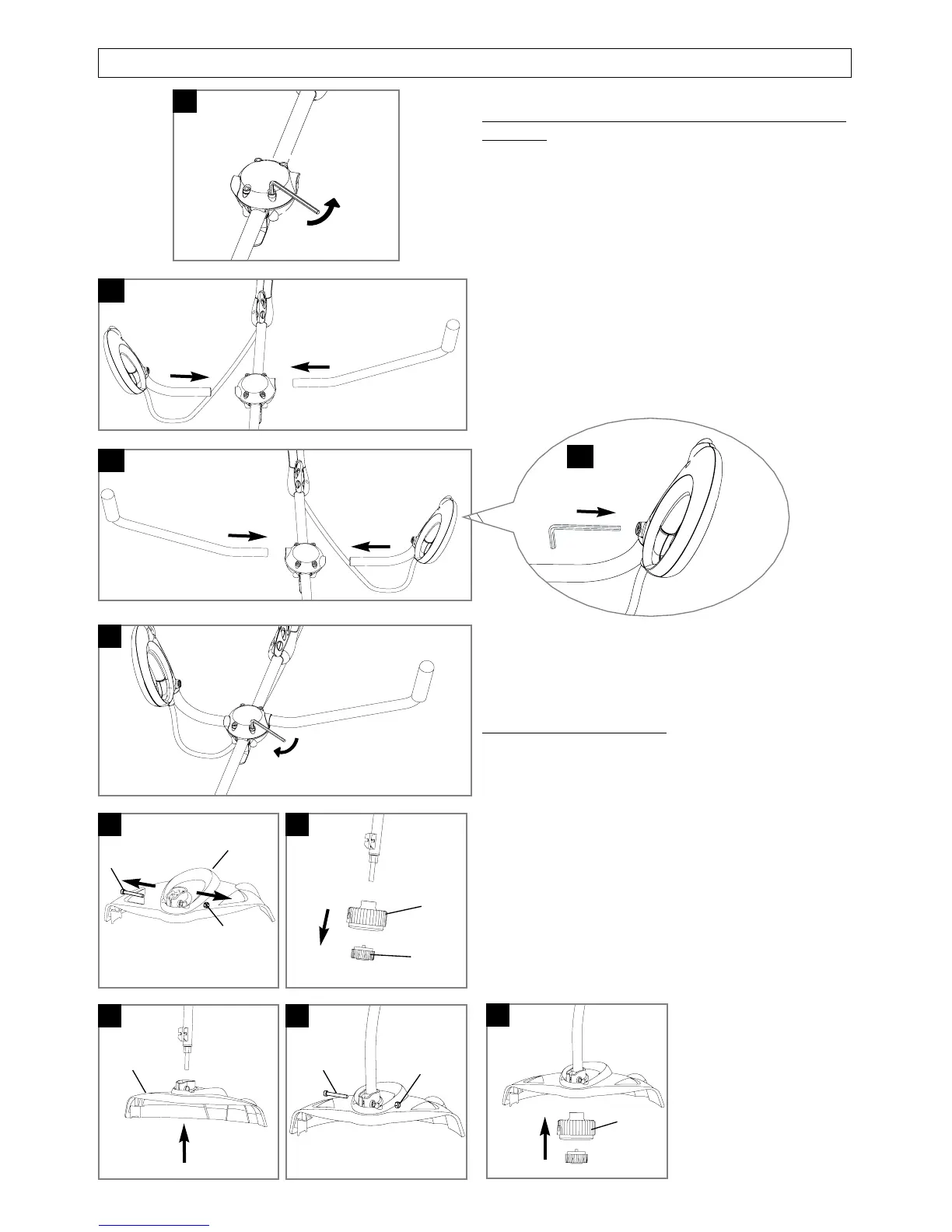

Flymo SAMURAI 1000XT - Assembly Instructions; Handle and Guard Assembly

Switch Handle and Handle Tube Assembly (A),
(B) & (C)
1. Loosen the four bolts on the Handle Clamp (A).
2. Insert the Switch Handle and the Steady
Handle into the holes at the side of the Handle
Clamp (B1 Right Handed) (B2 Left Handed)
- using the Hex Drive Tool to turn the
switch handle (B3)
3. Adjust the Handles to the most comfortable
operating position by moving the Handle
Clamp up or down the tube.
4. Secure the Handle Clamp by tightening the
four bolts (C)
Safety Guar
d Assembly
1. Remove the Nut (D1) and Bolt (D2) from the
Safety Guard (D3).
2. Remove the Cap (E1) and Spool Holder (E2)
from the tube.
3. Locate the Safety Guard (F1) onto the tube.
4. Secure the Safety Guard with the Bolt (G1)
and Nut (G2).
5. Replace the Spool Holder (H1) and Cap (H2).
Tighten the Cap to secure.
