6
❏

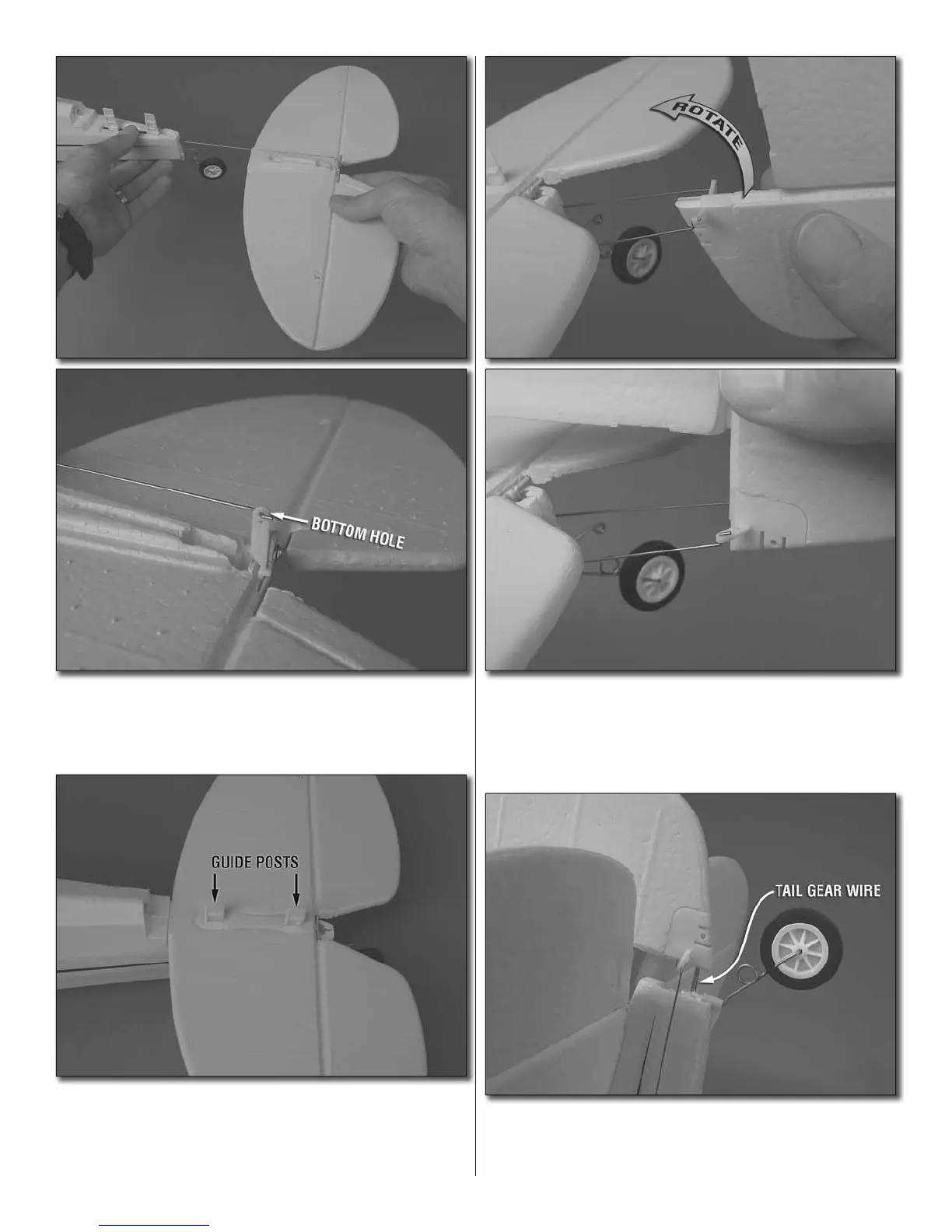

3. Insert the “Z-bend” of the wire into the bottom hole in
the elevator horn as shown.
❏
4. Turn the elevator over and fi t it over the molded-in guide
posts in the fuselage as you guide the pushrod up through
the tube in the fuselage.
❏
5. Same as the elevator pushrod, guide the two rudder
pushrods partway up through the guide tubes in the fuselage.
Connect the pushrods to the outer holes in the rudder horn,
then rotate the rudder 90° to lock the pushrods in.
❏
6. Prepare to join the vertical stabilizer assembly to the
fuselage by inserting the tail gear wire partway into the rudder.
