FMA PowerLab 6 - Configuration B: Single Pack Charging

15

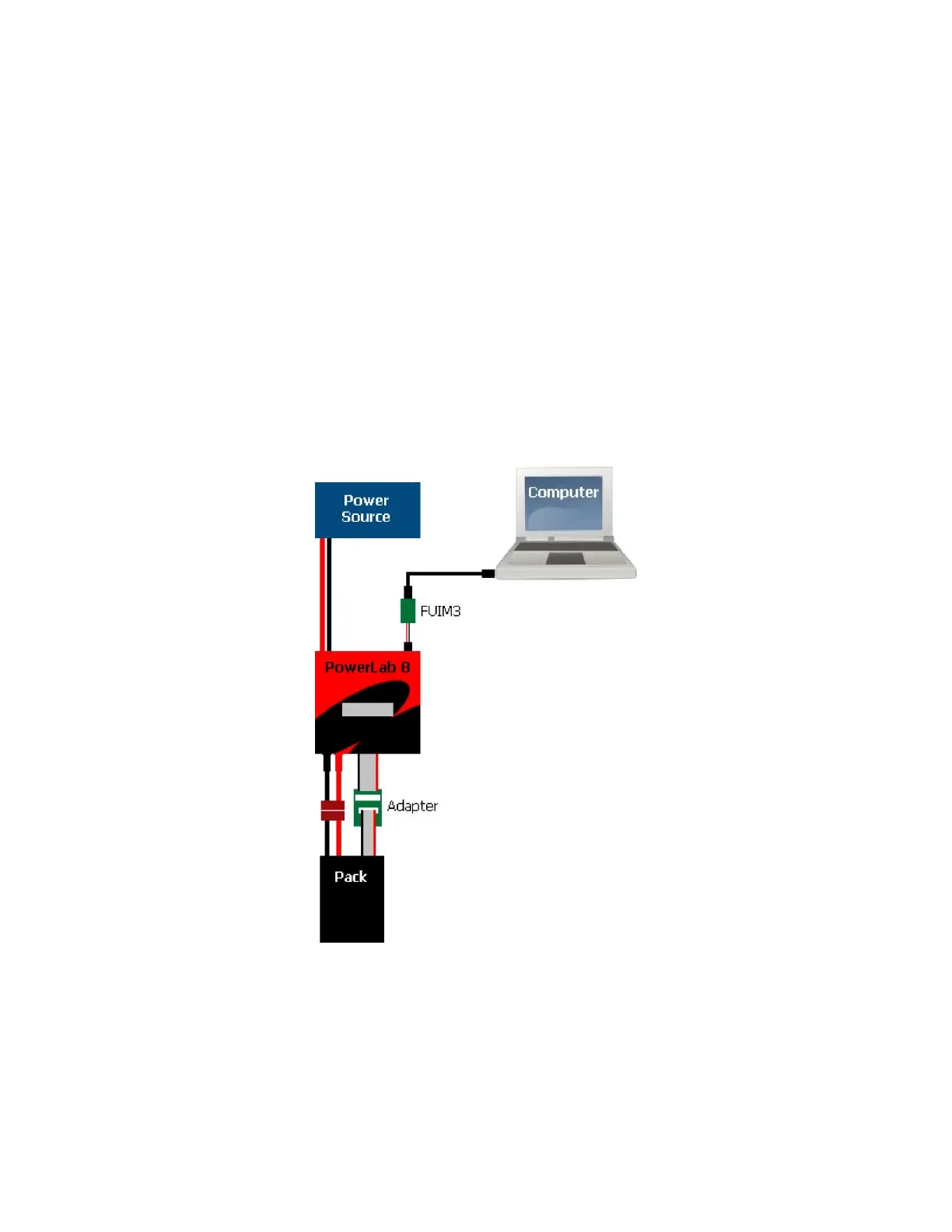

Configuration B
Summary: basic one-pack charging through balance and discharge wires.
Components:
 1 PowerLab 6 
 1 power source 
 1 standard adapter or Safe Adapter 
 1 pack 
 Optional FUIM3 for computer support 
PowerLab 6 mode (Normal or Expansion Channel): Normal.
PowerLab 6 maximum charge power: up to 1000W charge to one pack (6s) using
30VDC/1200W power source.
Note: above illustrations may read “PowerLab 8” because for purposes of these illustrations, both
models are identical.
