Section 3 – Meter Repairs (continued)
7. If fixture does not pass through cleanly, see Figure
61, then remove hold-down screws and cam. Check
housing for distortion in area of dwell on cam.
8. If fixture passes, but a gap is noticed between the
xtureandcamface:
a. Reinstall blade assembly into rotor and reas-
semble meter, observing specifically the Blade Tip
Toward Housing (see Page 12). If clearance is
acceptable, finish the reassembly. If blade tip
clearance is excessive, consider possible worn
blade and replace if necessary.
Note: Be sure to tighten the two hold-down screws before reassem-
bling the meter.

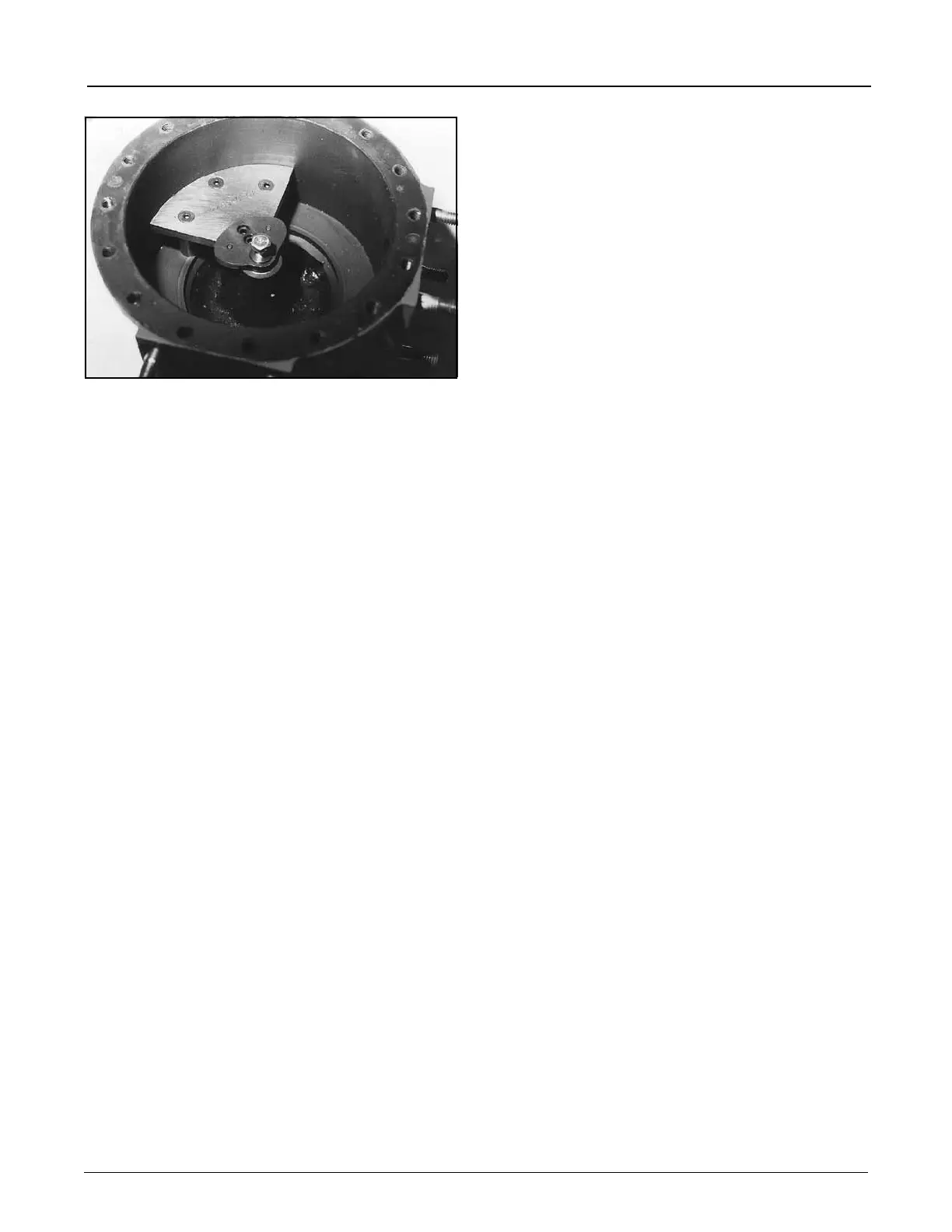

Figure 61
To Next Page
