The ESC parameters can be set by the 6-bit DIP Switch of the transmitter, that is, the DIP switch is located at differ-
ent positions and the corresponding parameter values are different. There are three parameters can be set for the
ESC, which are "Running Mode", "Battery Type" and "Drag Brake".
Running Mode
Forward/Reverse/Brake(F/B/R): This mode adopts "double click" reverse mode, that is, when the throttle trigger is
pushed from neutral range to the reverse area for the first time, the motor is only braking and will not reverse; when
the throttle trigger is moved back to the neutral range and pushed to the reverse area for the second time, it will
reverse. This mode is applicable to general models.
Forward/Reverse(F/R): This mode adopts "one click" reverse mode, that is, when the throttle trigger is pushed from
neutral range to the reverse area, the motor immediately generates reverse action, which is generally applied to rock
crawler.The switch marked 1 of the 6-bit DIP switch is used to set the ESC running mode. The switch on the upper
positionindicates that the running mode is Forward/Reverse; and the switch on the lower position indicates that the
running mode is Forward/Reverse/Brake.
Setup:
Toggle the switch 1 to the upper position, the buzzer will have one beep. Toggle the switch to the lower position, the
buzzer will have two beeps.
Battery Type
There are LiPo and NiMH cells. It can be set according to the actual use.
The switch 2 of the 6-bit DIP switch is used to set the battery type. The switch on the upper side indicates that the
battery type is NiMH cells; and the switch on the lower side indicates that the battery type is LiPo.
注：
1. 若设置过程中操作控件时发射机无响应则表示设置失败， 请按功能设置重新设置。
2. 除方向通道和油门通道外，其他通道可在设置完上一通道舵量后，操作相应的控件触发其它通道的舵量设置。如当设置 CH3 通道
舵量，在蜂鸣器关闭后，可按下 CH4 按键，此时蜂鸣器变为响 2 声循环提示，即可继续设置 CH4 通道舵量。
若设置完其他通道后再设置方向通道或油门通道舵量，则须使发射机重新进入舵量设置模式后方可设置。
3.在非油门通道舵量设置过程中，油门通道将保持正常输出。
System Functions
系统功能
18
ESC Parameters Setting
电调参数设置

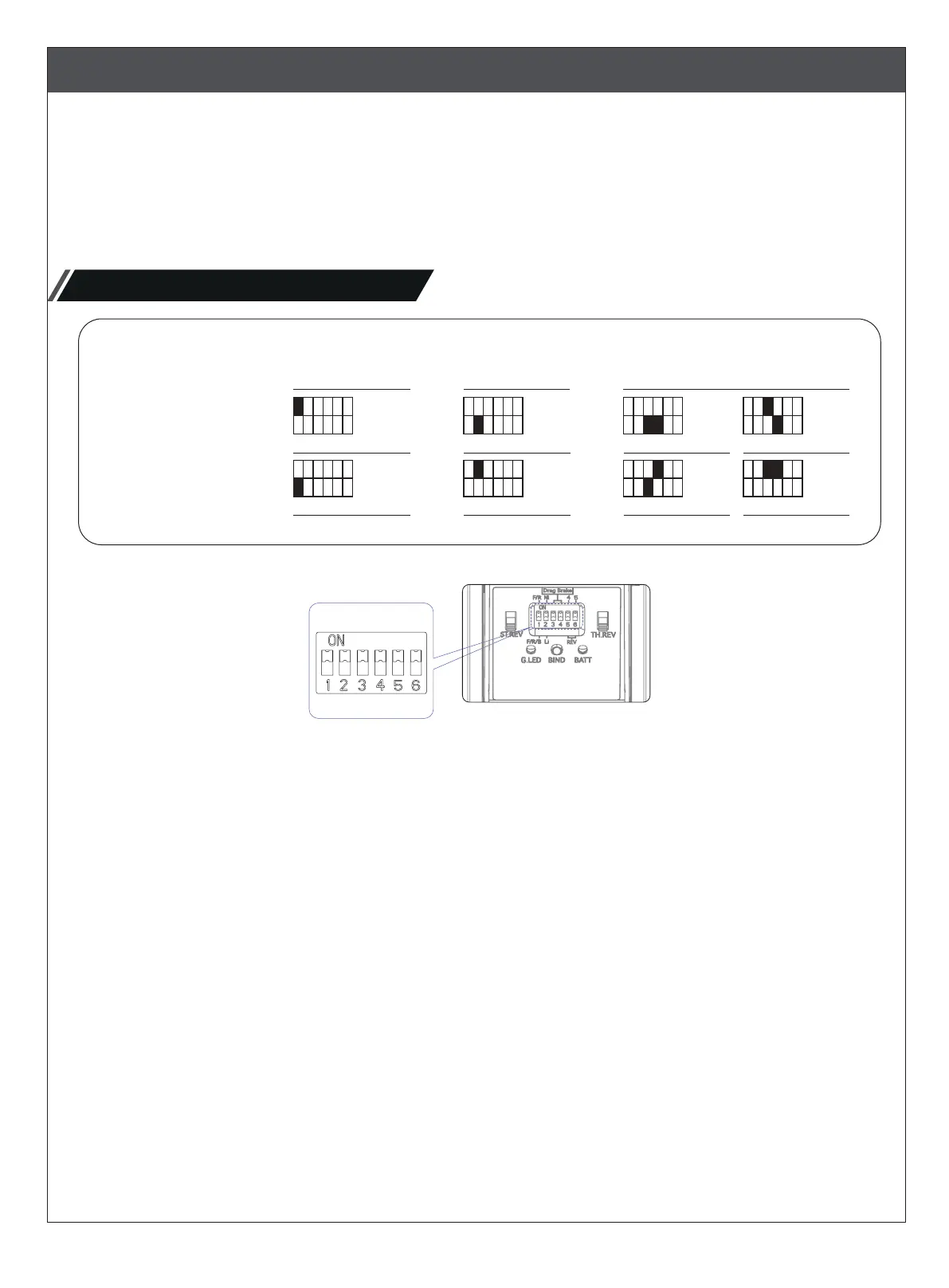

Running Mode Battery Type Drag Brake
F/R Lipo 0% 75%
F/R/B NiMH 50% 100%
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
6-bit DIP Switch Sign
6-bit DIP Switch
六位拨码开关
六位拨码开关标识
To Next Page
