More control throw
Less control throw
Horns Arms
a.
b.
c.
d.
e.
f.

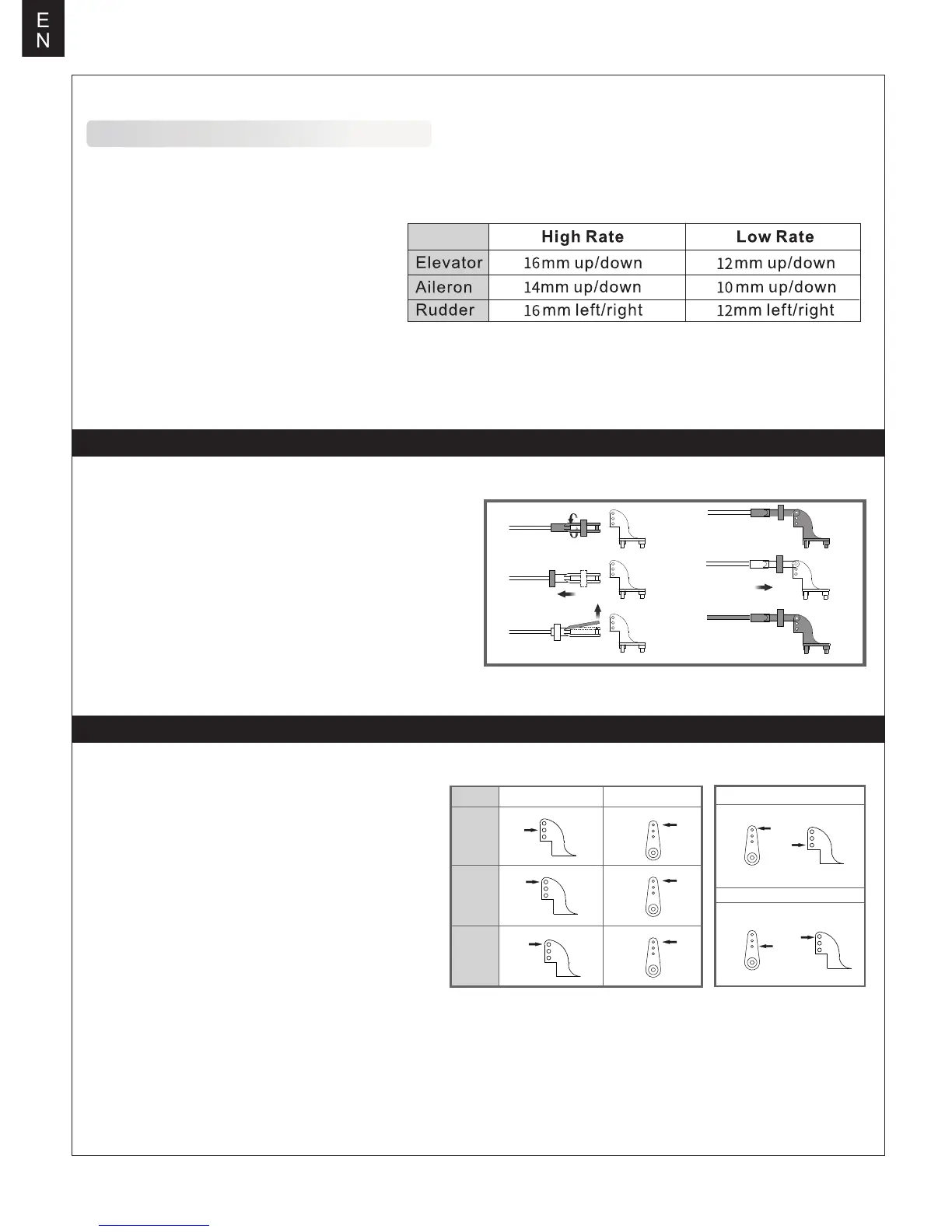

Check the control throws
The suggested control throw setting for the T-45 are as follows (dual rate setting):
Tips: On first flight, fly the model in low rate. The
first time you use high rates,be sure to fly at low to
medium speeds. High rate, as listed, is only for
EXTREME maneuvering.
EN
Clevis installation
1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the clevis pin into the
desired hole in the control horn.
3.Move the tube to hold the clevis on the control horn.
Control horn and servo arm settings
The table shows the factory settings for the control horns
and servo arms. Fly the aircraft at the factory settings
before making changes.
After flying,you may choose to adjust the linkage positions
for the desired control response.
ElevatorRudderAilerons
