Focal ISS 165 - Tweeter Connection Procedures; Connecting Tweeter Wires; Integrated Crossover Connection

INTEGRATION UNIVERSAL ISS
User manual
4

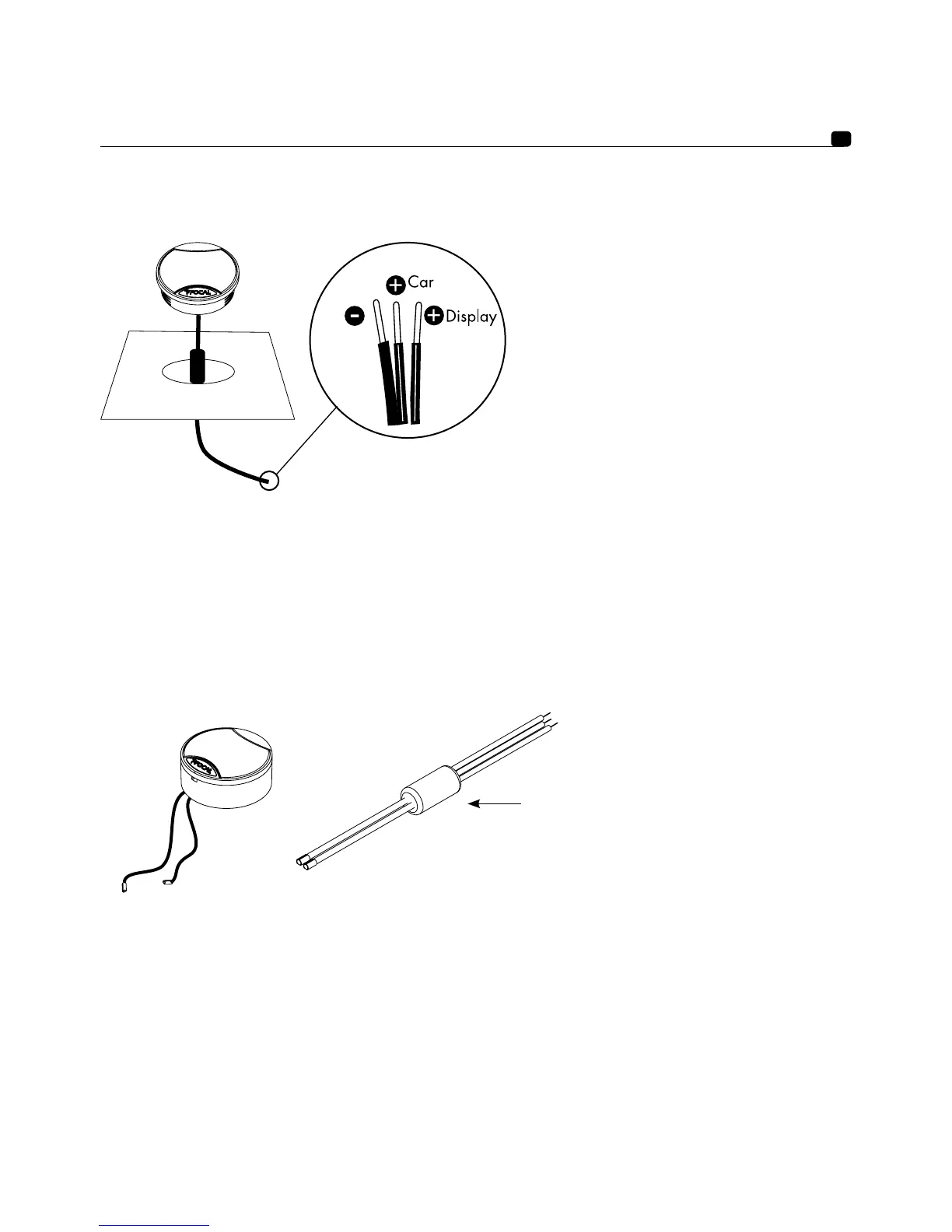

4/ Connecting the tweeters.
5/ Connecting the tweeters with crossover connector.
When installing on a demonstration display, connect the “display” wire.
When installing in a vehicle: connect the "car" wire.
The unmarked wire is "-" wire with both connection options.
Warning: the tweeter crossover is integrated into the connector. Ensure correct wiring thanks to the cable plugs
(tweeter/crossover connector) in order to ensure optimal performance of this Integration kit.
+
integrated crossover
NB: "+" is the wire with red line
