PERFORMANCE EXPERT
PS
165F/130F -
PS
165FX/165F3
User
manual
•

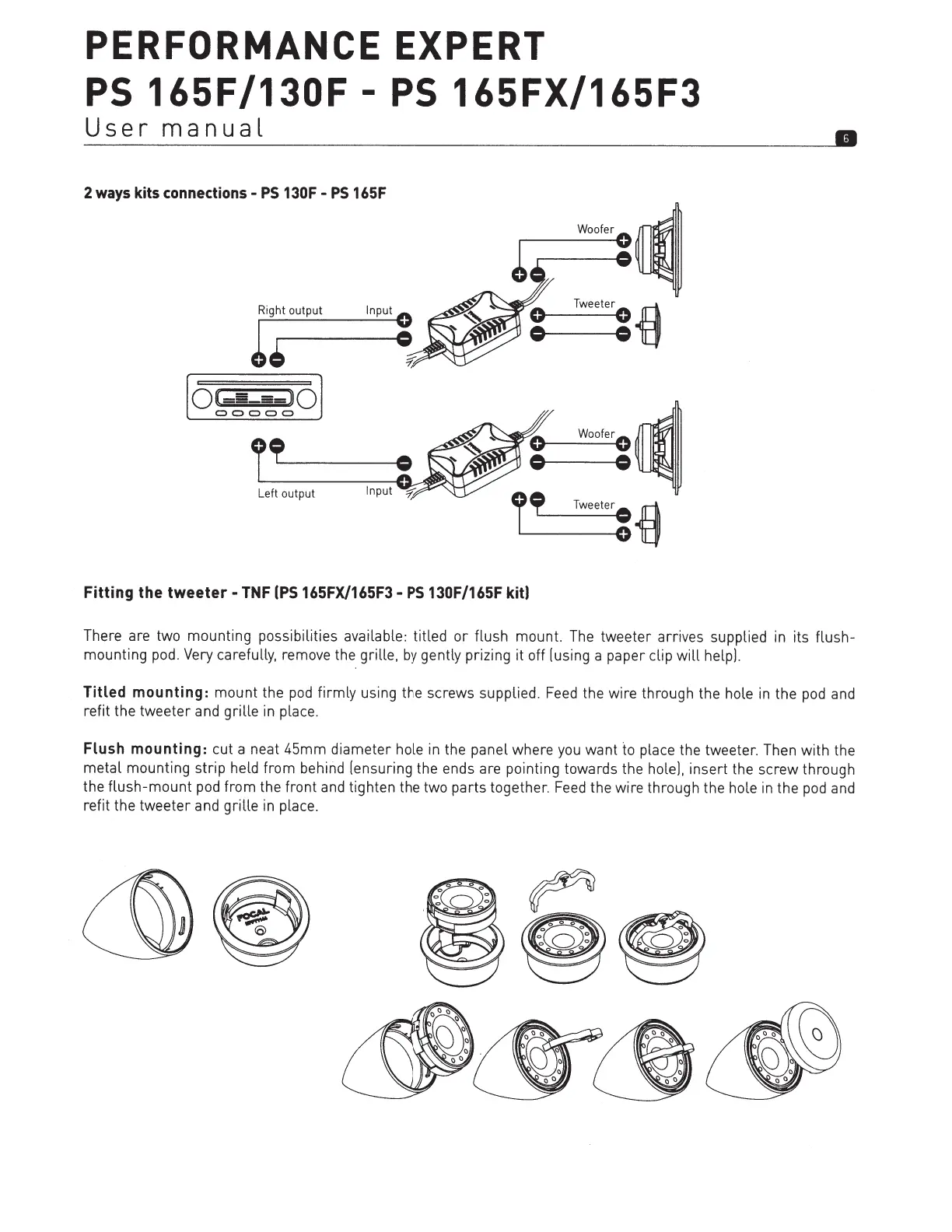

2 ways kits connections -
PS
130F
-
PS
165F
Woofer:~
Tweeter
0
n
•u
T.____•
_Tw-eeter:~
[
0(-==
=-10]
.
00000
.
Left
output
Woofer
0
~
·~
Fitting
the
tweeter-
TNF
(PS
165FX/165F3-
PS
130F/165F kit)
There are two mounting possibilities available: titled
or
flush mount.
The
tweeter arrives supplied in its flush-
mounting pod. Very carefully, remove the grille,
by
gently prizing it off [using a paper clip
will
help).
Titled mounting:
mount the
pod
firmly using the screws supplied.
Feed
the wire through the hole in the
pod
and
refit the tweeter and grille in place.
Flush mounting:
cut a neat 45mm diameter hole
in
the panel where
you
want
to
place the tweeter. Then with the
metal mounting strip held from behind [ensuring the ends are pointing towards the hole]. insert the screw through
the
flush-mount
pod
from the front and tighten the two parts together.
Feed
the wire through the hole
in
the
pod
and
refit the tweeter and grille in place.
