Focal ST6 SUB12 - Page 19

19
SOLO6 - TWIN6 - SUB12
Professional Analogue Monitoring System - User Manual
EN
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
10 100 1000 10000 100000
Magnitude (dBr)
Frequency (Hz)

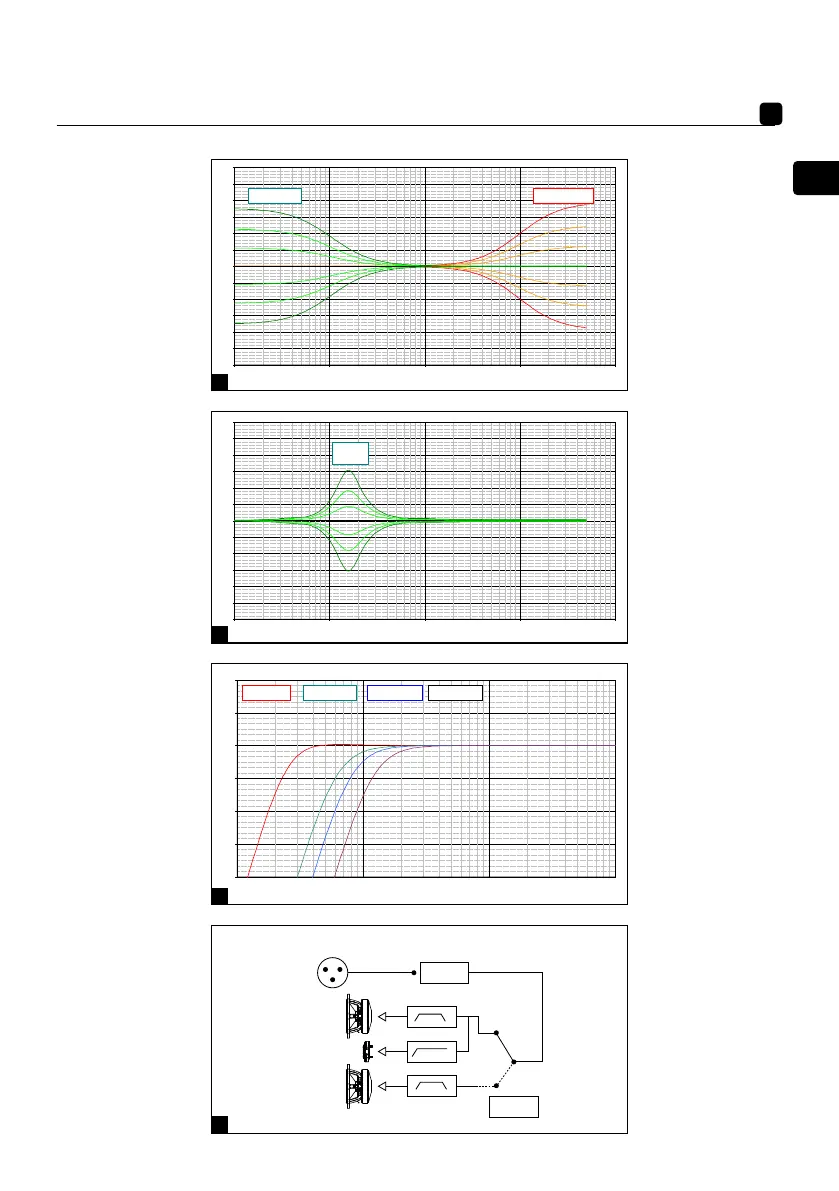

LMF EQ's
160Hz ±3dB
1dB step
Q = 1
H
LMF EQ
-12
-9
-6
-3
0
3
6
10 100 1000 10000
Magnitude (dBr)
Frequency (Hz)
HPF
HPF: 4 5Hz ( -6dB)
60Hz @ -3dB
HPF: Full r ange
25Hz @ -3dB
HPF: 6 0Hz ( -6dB)
80Hz @ -3dB
HPF: 9 0Hz ( -6dB)
120Hz @ -3dB
I
HPF
INPUT
EQ
FOCUS
J
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
10 100 1000 10000 100000
Magnitude (dBr)
Frequency (Hz)
LF / HF Shelving
LF Shelving 250Hz
±3dB / 1dB step
HF Shelving 4.5kHz
±3dB / 1dB step
G
LF/HF Shelving
