23
SUB AIR
User manual

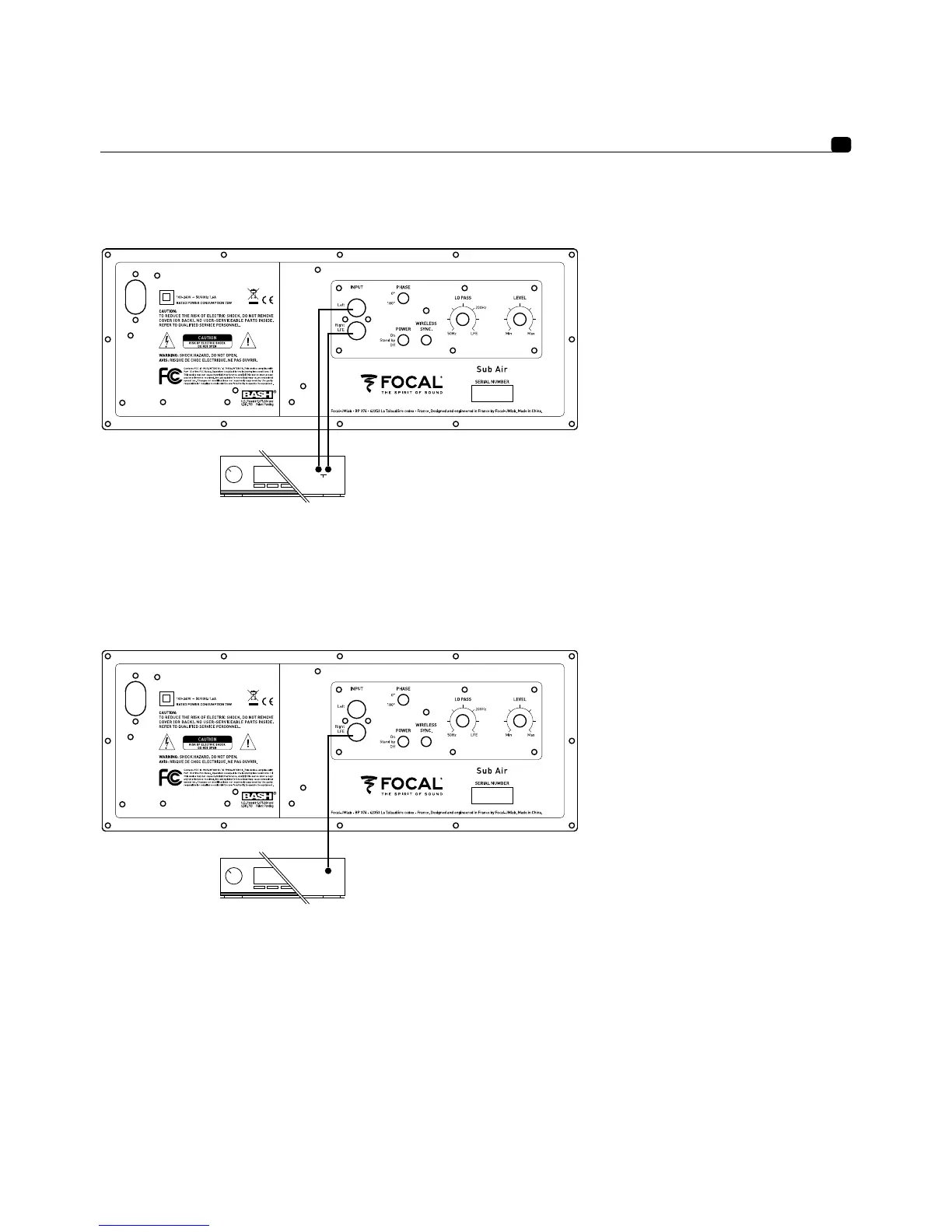

5. Wired connection of Sub Air
Pre-out
L R
Connection to low level RCA inputs
When a 2-channel amplifier with pre-out line outputs is used, Sub Air must always be connected using the RCA
stereo Right/Left inputs.
SUBWOOFER
Connection to LFE input
When a multi-channel audio/video amplifier is used, the Sub Air's single LFE input should be connected to the
"Subwoofer" output on the audio/video amplifier.
or

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Focal SUB AIR and is the answer not in the manual?

Focal SUB AIR Specifications

General IconGeneral
Subwoofer typeActive subwoofer
Wireless subwooferYes
Subwoofer peak power150 W
Subwoofer driver diameter210 mm
Subwoofer frequency range40 - 200 Hz
Subwoofer driver diameter (imperial)8 \
Product colorBlack
Power consumption (typical)1 W
Weight and Dimensions IconWeight and Dimensions
Subwoofer depth160 mm
Subwoofer width360 mm
Subwoofer height410 mm
Subwoofer weight7650 g
