Focus Paralane - Final Fender Stay Attachment; Final Fender Attachment

1
2
3
5
4
4
1
2
3
4
5
5
4
5
4
4
6
4
9
7
8
10
11
13
13
12
10
1973K0019028
KD1973K0019028

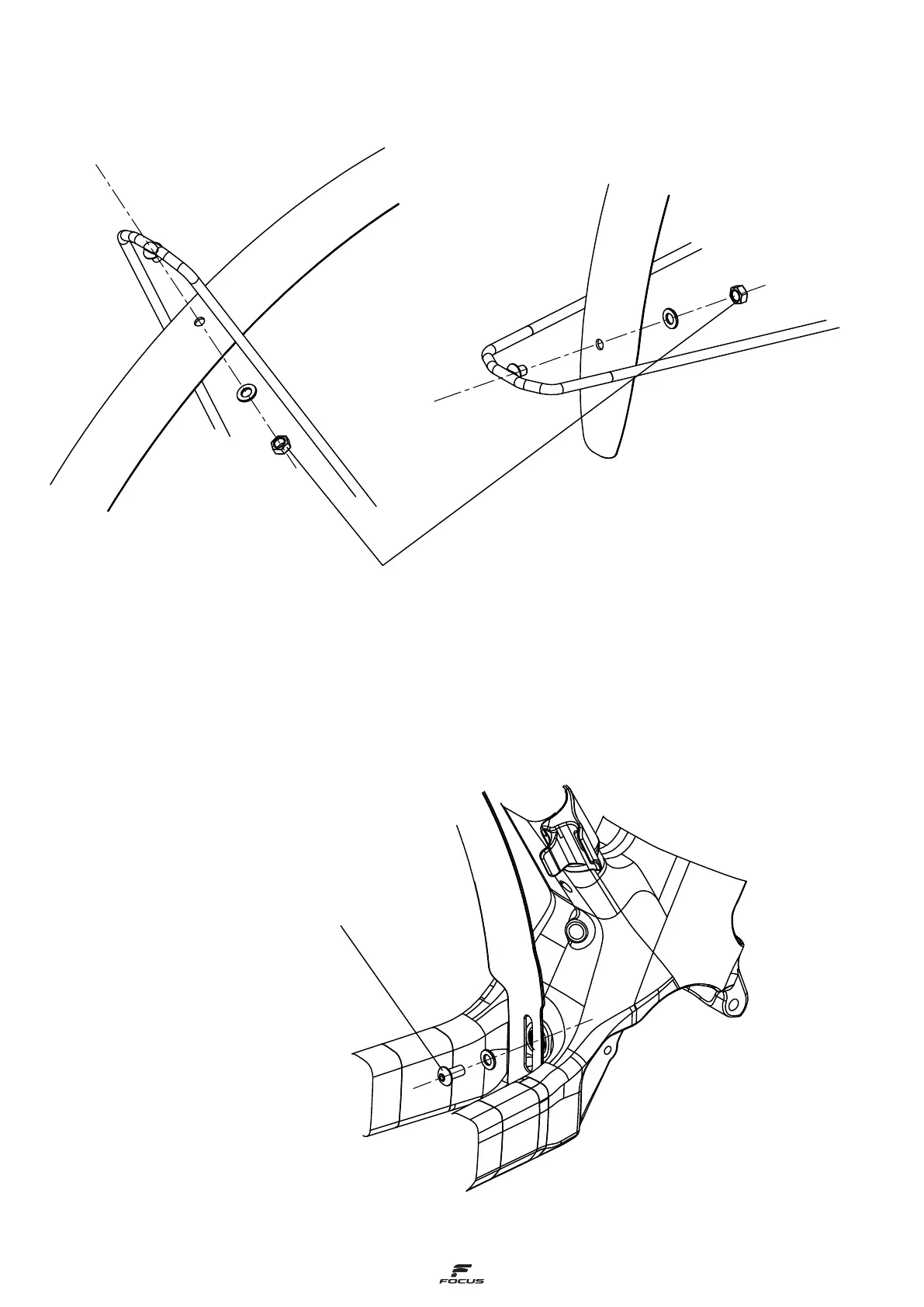

· With Fender and Stays placed
· Insert M5 Nuts and Washers
· Thighten it (8 mm wrench)
· This operation is required on Main and Auxiliary Stays
· With Fender placed
· Insert M5x10 Screw and Washer
· Thighten it (3 mm allen)
