Focusrite Saffire PRO 14 - Hardware; Back Panel

7
Hardware
Back Panel

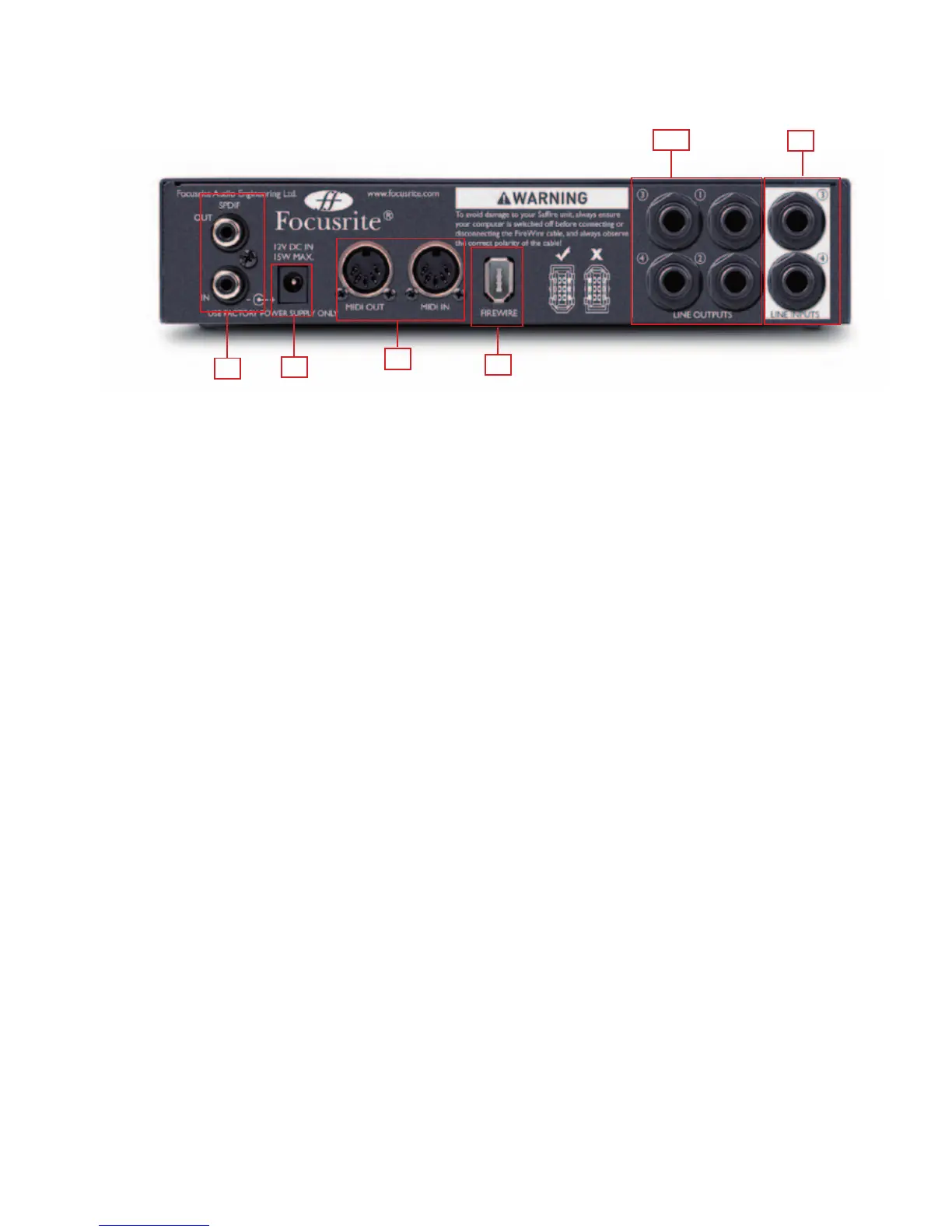

The Back Panel provides the majority of input and output connections on the Saffire PRO 14
1 2 x TRS jack sockets line inputs 3 and 4 *
2 4 x TRS jack sockets for line outputs 1-4 *
3 1 x IEEE1394 6 pin FireWire socket
4 2 x DIN5 MIDI input and output sockets
5 1 x 2.0mm DC power inlet socket - use supplied power supply only
6 2 x RCA S/PDIF input and output sockets
* Either 1/4 inch TRS (balanced) or TS (unbalanced) jack connectors can be used.
