DESCRIPTION
- PA amplifier.
- With phantom power supply and priority.
CONTROLS AND FUNCTIONS

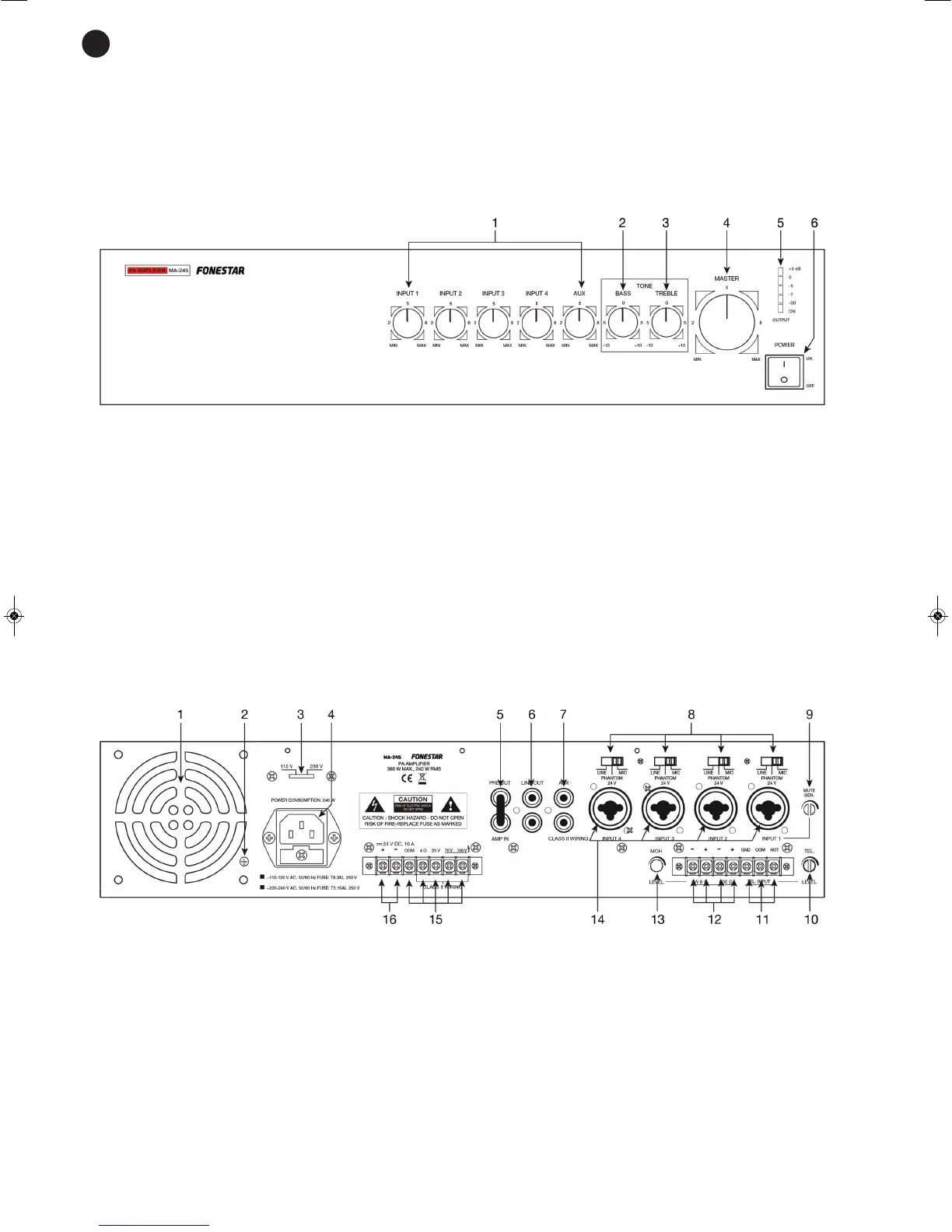

FRONT PANEL
1.- INPUT 1-4 and AUX: controls which regulate the volume of inputs 1 to 4 and the aux input.
2.- BASS: reinforces or attenuates bass frequencies ±10 dB.
3.- TREBLE: reinforces or attenuates treble frequencies ±10 dB.
4.- MASTER: control which regulates the general output volume of all the inputs.
5.- OUTPUT LEVEL: LED indicators for the output signal level. It regulates the individual volume controls
of the inputs or the general (MASTER) output volume control so that the level does not exceed the green
LED indicators. The red LED indicators indicate saturation or a distorted signal which could damage the
loudspeakers or the amplifier.
6.- POWER: amplifier on/off switch.
REAR PANEL
1.- Ventilation grille: to ventilate the output stage.
2.- GND. Earth: screw to earth the amplifier to be used in the case of the mains connection not having one
incorporated.
3.- 115V/230V: power supply voltage selector.
4.- AC socket: for the AC power supply cable connection.
5.- AMP IN/PRE OUT: the connection bridge between the two RCA connectors communicates the output
signal from the preamplifier (PRE OUT) with the amplifier input (AMP IN).
6.- LINE OUT: aux line output. Signal output for recording, mixer, amplifier etc., 2 x RCA connectors.
7.- AUX: aux input. Signal source input, allows connection of audio sources via RCA connectors.
