FONESTAR MA-66 - Page 2

EN
- 2 -
DESCRIPTION
- PA amplifier.
- Phantom power supply and priority.

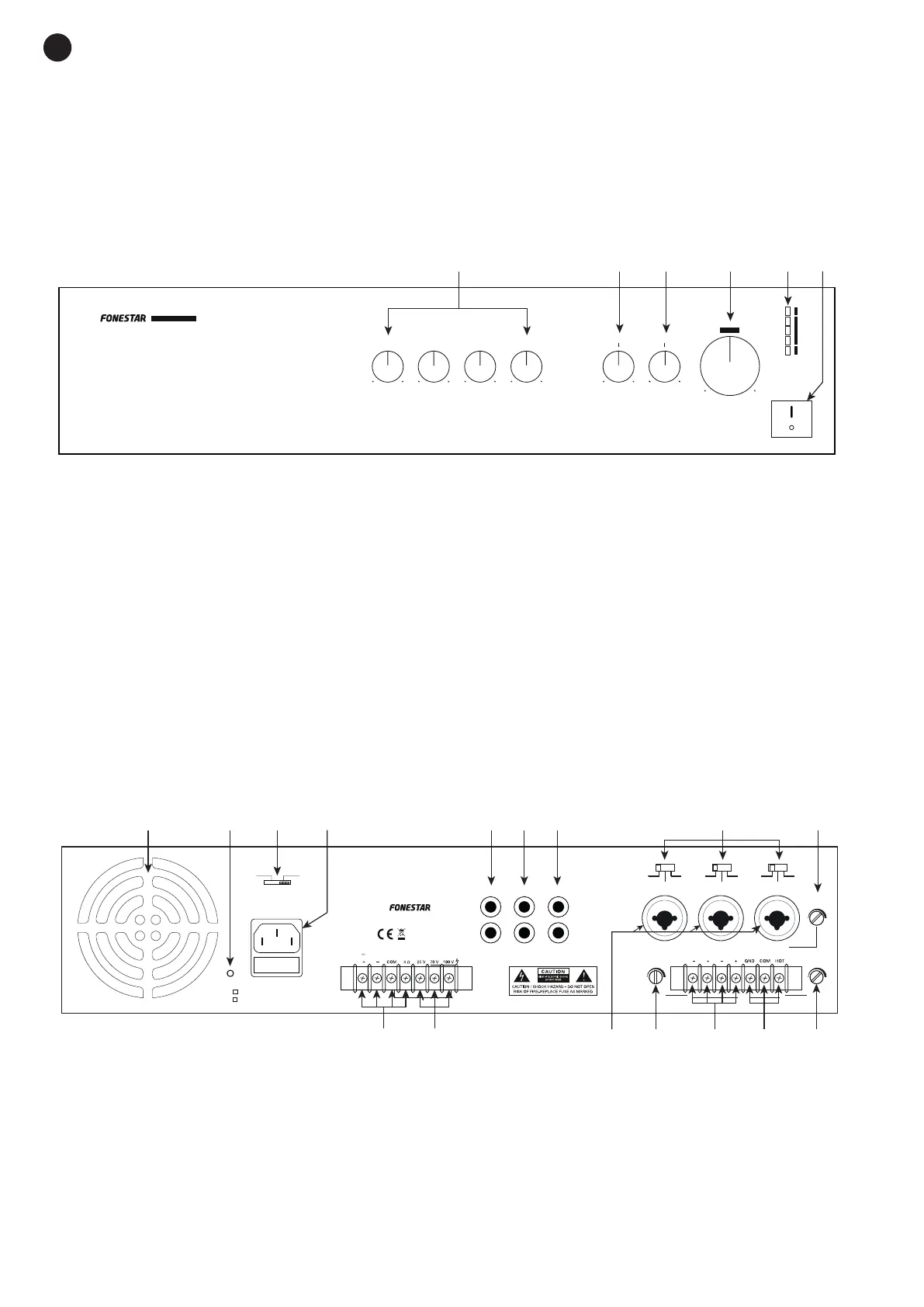

CONTROLS AND FUNCTIONS
FRONT PANEL
INPUT 1 INPUT 2 INPUT 3 AUX
BASS
TREBLE
CLIP
SIG
POWER
PA AMPLIFIER MA-66
MASTER
115 V 230 V
~110-120 V AC. 50/60 Hz FUSE: T6.3AL 250 V
~220-240 V AC. 50/60 Hz FUSE: T3.15AL 250 V
POWER CONSUMPTION: 130 W
24 V DC, 6 A
GND
PRE OUT
AMP IN
MOH
LEVEL LEVEL1 W 8 Ω 600 Ω TEL. INPUT
TEL.
CLASS II WIRING
REC AUX
LINE MIC
PHANTOM
+ 24 V
LINE MIC
PHANTOM
+ 24 V
LINE MIC
PHANTOM
+ 24 V
MA-66
PA AMPLIFIER
90 W MAX., 60 W RMS
MUTE
SEN.
INPUT 1
INPUT 2INPUT 3
1 2 3 4 5 6
1 2 3 4 5
16
14 13
12
11 10
15
6 7 8 9
1.- INPUT 1-3 and AUX: controls to regulate the volume of the inputs 1 to 3 and the aux input.
2.- BASS: reinforces or attenuates bass frequencies ±10 dB.
3.- TREBLE: reinforces or attenuates bass frequencies ± 10 dB.
4.- MASTER: control that regulates the general output volume for all the inputs.
5.- OUTPUT LEVEL: LED output signal level indicators. It regulates the individual volume controls for
the inputs or the general (MASTER) output volume, so that the level does not exceed the green LED
indicators. The red LED indicators indicate saturation or a distorted signal which could cause damage
to the speakers or the amplifier.
6.- POWER: on/off switch for the amplifier.
REAR PANEL
INPUT 1 INPUT 2 INPUT 3 AUX
BASS TREBLE
CLIP
SIG
POWER
PA AMPLIFIER MA-66
MASTER
115 V 230 V
~110-120 V AC. 50/60 Hz FUSE: T6.3AL 250 V
~220-240 V AC. 50/60 Hz FUSE: T3.15AL 250 V
POWER CONSUMPTION: 130 W
24 V DC, 6 A
GND
PRE OUT
AMP IN
MOH
LEVEL LEVEL1 W 8 Ω 600 Ω TEL. INPUT
TEL.
CLASS II WIRING
REC AUX
LINE MIC
PHANTOM
+ 24 V
LINE MIC
PHANTOM
+ 24 V
LINE MIC
PHANTOM
+ 24 V
MA-66
PA AMPLIFIER
90 W MAX., 60 W RMS
MUTE
SEN.
INPUT 1
INPUT 2INPUT 3
1 2 3 4 5 6
1 2 3 4 5
16
14 13
12
11 10
15
6 7 8 9
1.- Ventilation grille: to ventilate the final stage of power.
2.- GND. Earth: screw to earth the amplifier, to be used in the case of the mains connection not having
one incorporated.
3.- 115 V/230 V: power supply voltage selector.
4.- AC socket: for the AC power supply cable connection.
5.- AMP IN/ PRE OUT: the connection bridge between the two RCA connectors communicates the output
signal from the PRE OUT with the AMP IN.
