Force 10 63251 - Assembly Diagrams

Page 13 of 15 ENG 0019.14 Part # 93030

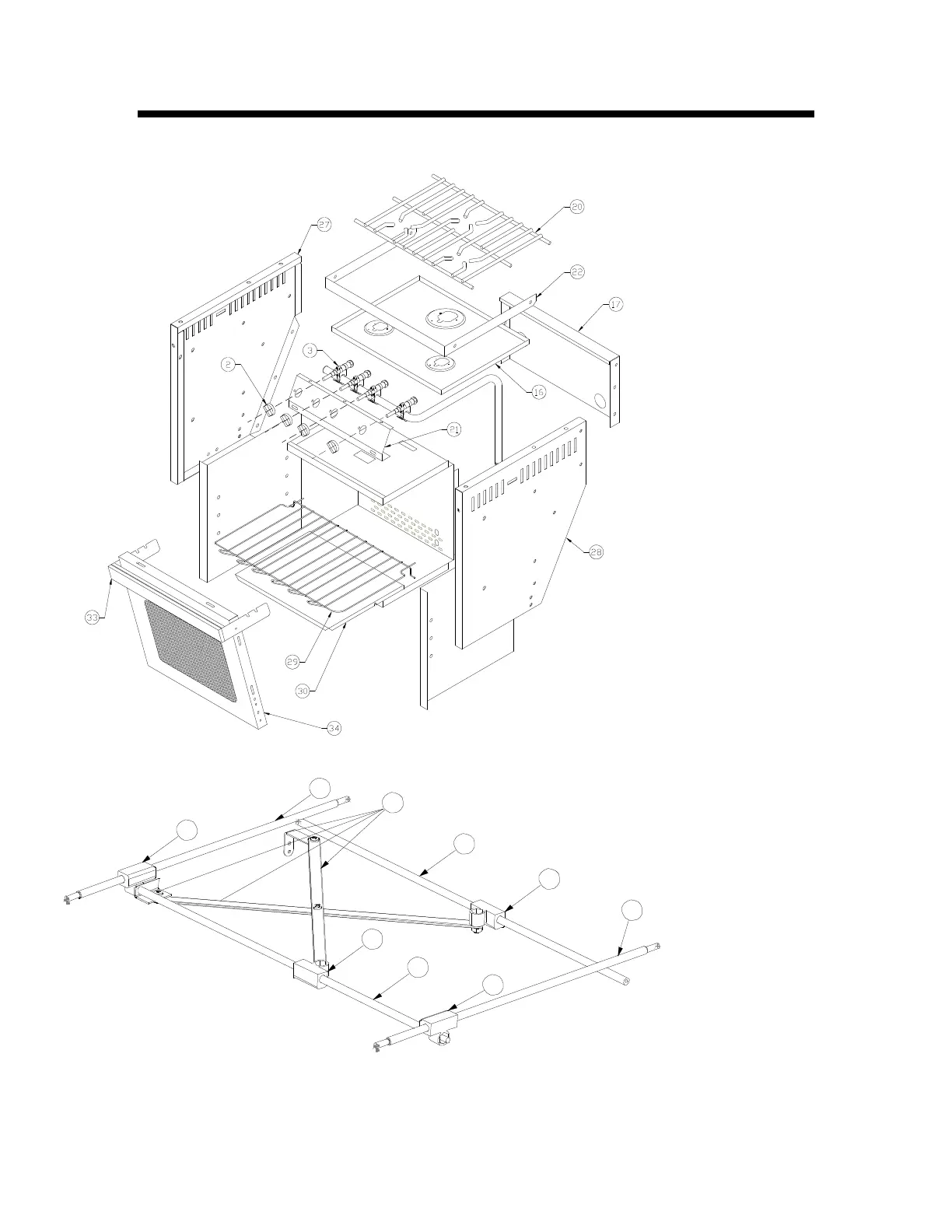

Assembly Diagrams
39
36
36
36
36
38
38
37
35
2 Control Knob
3 Control Valve
16 Top Tray
17 Grill Back
20 Top Grill
21 Control Panel
22 Grill Frame
27 Left Stove Side
28 Right Stove Side
29 Oven Rack
30 Oven Heat plate
33 Handle
34 Door Assembly
35
Cross Bar
Assembly
36 Slider Blocks
37 Back Door Rod
38 Side Door Rod
39 Front Door Rod
