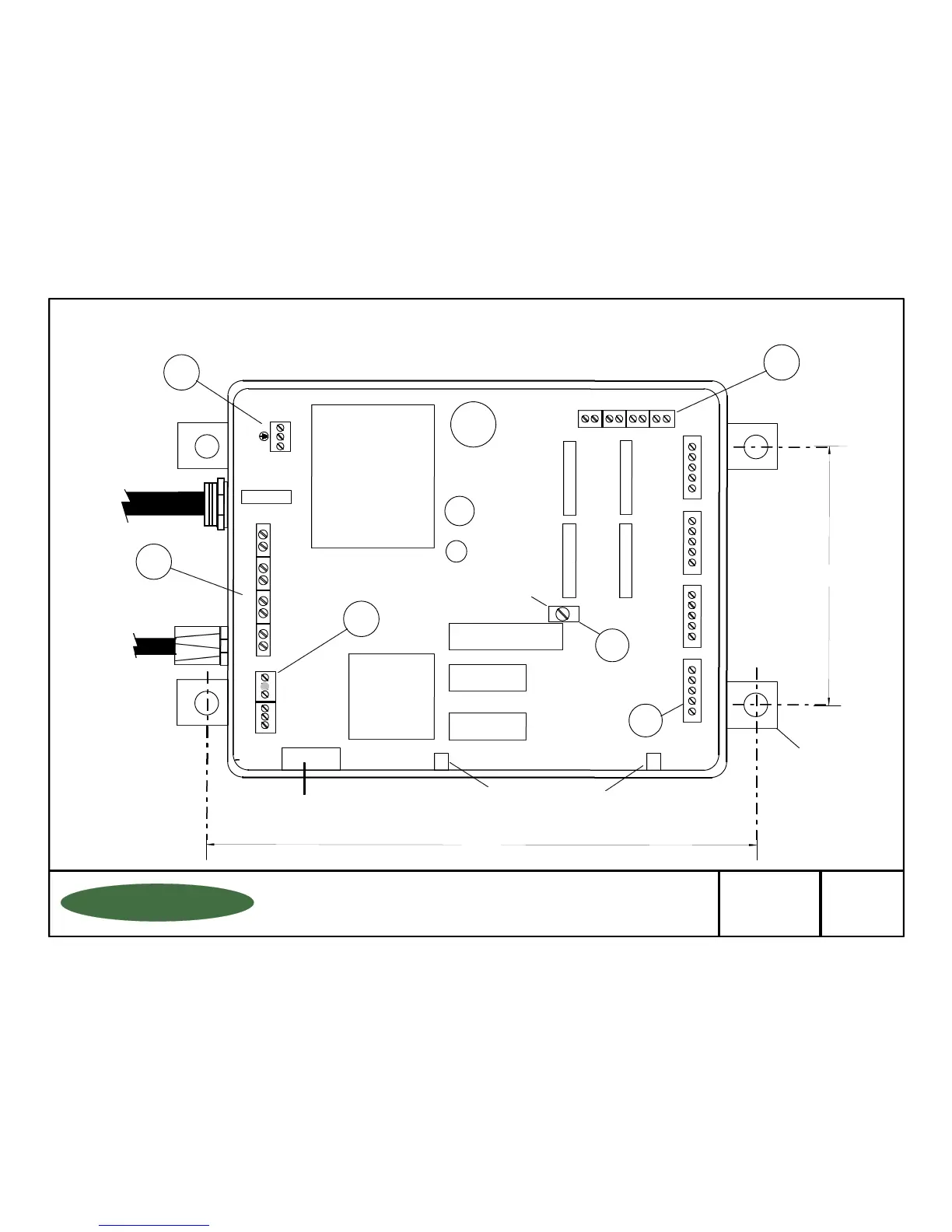

Force Flow WIZARD 4000 - Wizard Indicator Layout; Component Diagram

RS485
RS232
EPROM
RAM
CPU
POWER
SUPPLY
POWER IN
Scale #1
+ -
T
G
R
HI
LO
+
C
Scale #1 #2 #3 #4
- + - + - + - +
11 12 13 14
SH
-X1
+X1
+S1
-S1
+X2
+S2
-S2
-X2
SH
+X3
+S3
-S3
-X3
SH
+X4
+S4
-S4
-X4
SH
3
6
5
4
1
NOTE: For best viewing, mount indicator at "eye level"
with the mounting fixtures provided.
2
LOAD CELLS
or
ULTRASONIC
SENSORS
FUSE
RELAYS
#1
#2
#3
#4
OUR (1)
IN (1)
OUR (2)
IN (2)
OUT (3)
IN (3)
OUT (4)
IN (4)
6"
13"
WIRE CABLE CLAMP
DISPLAY ANGLE
ADJUSTMENT (Blue)
OPTIONAL
AUDIBLE
ALARM
MOUNTING
FIXTURE
4-20mA OUTPUT
1150-D Burnett Ave, Concord, CA 94520 USA
1-800-893-6723 US & Canada, Fax: 925-686-6713
www.forceflow.com / info@forceflow.com
Drawn by: SLP
Date: 09/01/95
Revised: 05/27/99
Scale: NONE
Drawing Number
File: T4\O&M\AWZMSTR\WIZINDIA.tcw (B04.pdf) 05/27/99
29892
WIZARD INDICATOR
COMPONENT LAYOUT
FORCE FLOW FORCE FLOW
F F L L O O Q Q I I U U P P
Scale #2
Scale #3
Scale #4
W.1.204
