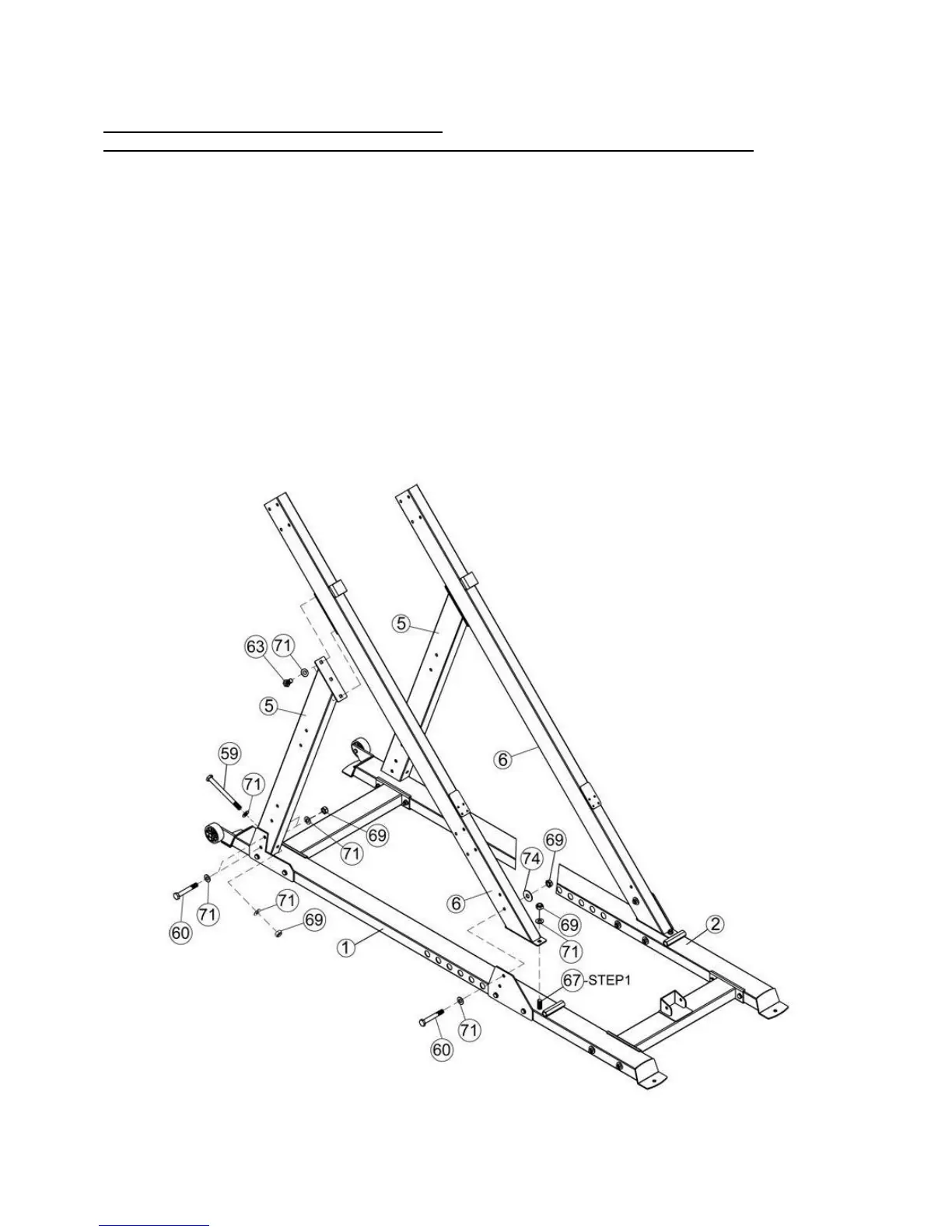

ASSEMBLY DIAGRAM 2
USE A PARTNER TO HELP WITH THIS STEP
REMEMBER: Only hand tighten all nuts and bolts until whole F-ULPHS is assembled.
1. Ensuring correct orientation, connect the Support Frame (Key #5) over the sockets on top of the
Left Stabilizer (Key #1) and Right Stabilizer (Key #2) using M10×70 Hex Bolt (Key #60) with
Washer 10 (Key #71) and secure with Washer 10 (Key #71) and Aircraft Nut M10 (Key #69); and
M10×115 Hex Bolt (Key #59) with Washer 10 (Key #71) and secure with Washer 10 (Key #71)
and M10 Aircraft Nut (Key #69).
2. Secure M10×70 Carriage Bolts (Key #67) [Diagram 1, Step 4] to the Frames (Key #6) with
Washer 10 (Key #71) and M10 Aircraft Nut (Key #69).
3. Attach the Frames (Key #6) to the Left Stabilizer (Key #1) and Right Stabilizer (Key #2) using
M10×70 Hex Bolt (Key #60), Washer 10 (Key #71) and secure with Larger Washer (Key #74)
and M10 Aircraft Nut (Key #69).
4. Ensure it angles up to rest on the Support Frames (Key #5) and connect with M10×20 Hex Bolt
(Key #63) and Washer 10 (Key #71).
