18

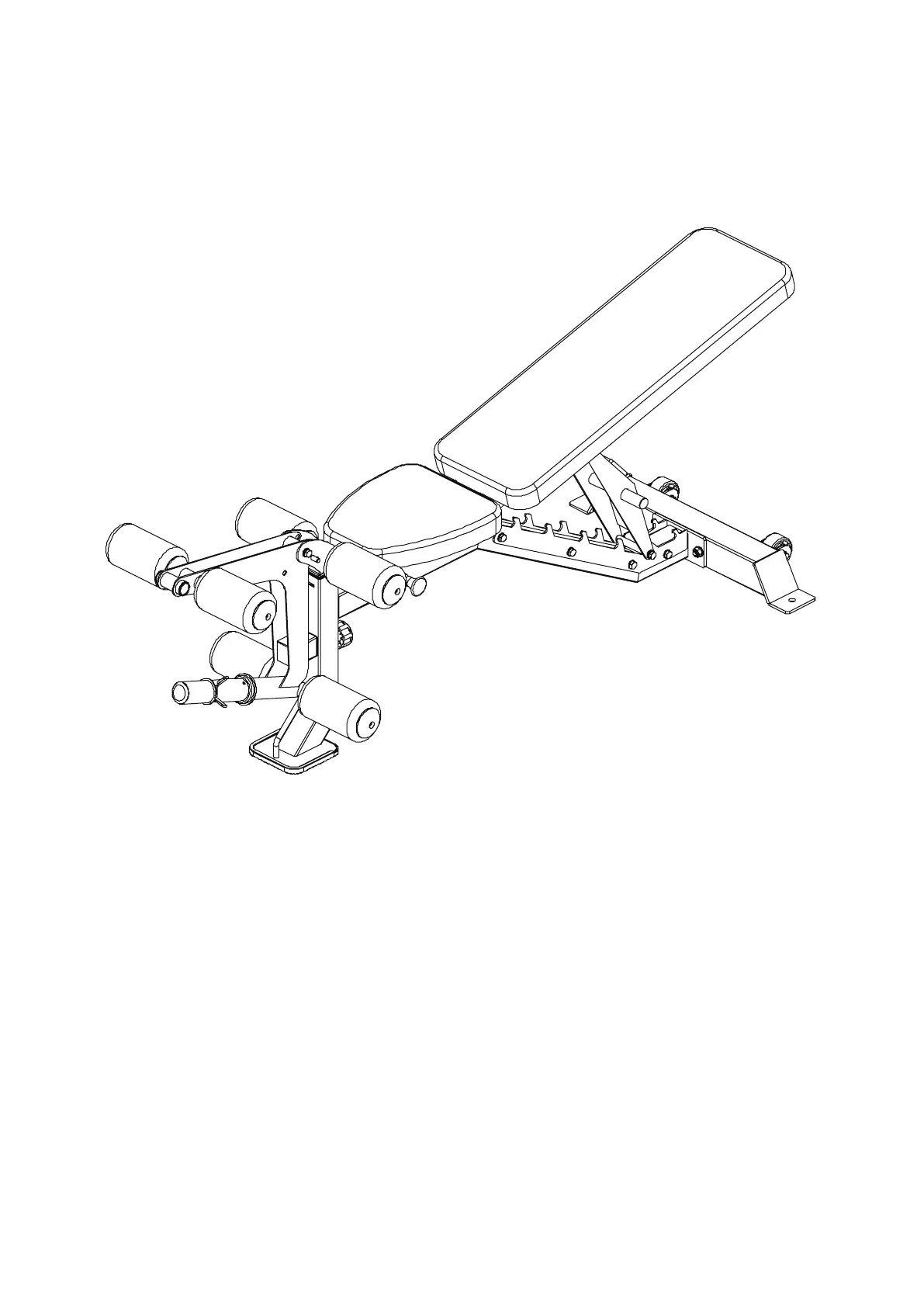

ASSEMBLY DRAWING
1. Connect kick internal insert tube assembly-21 and kick frame assembly-22 use M10*25
hexagon bolt-31, φ10 spring washer-30, φ10 at washer-8 and φ20*57-M10 internal thread
shaft-29.
2. Fix foam-25 and foam tube-27 on kick internal insert tube assembly-21 and kick frame
assembly-22 use M8*25 hexagon socket button head screw-26, foam inner cap-23 and
foam outer cap-24.
3. Install olympic lock collar-32 on kick frame assembly-22.
ASSEMBLY INSTRUCTIONS
