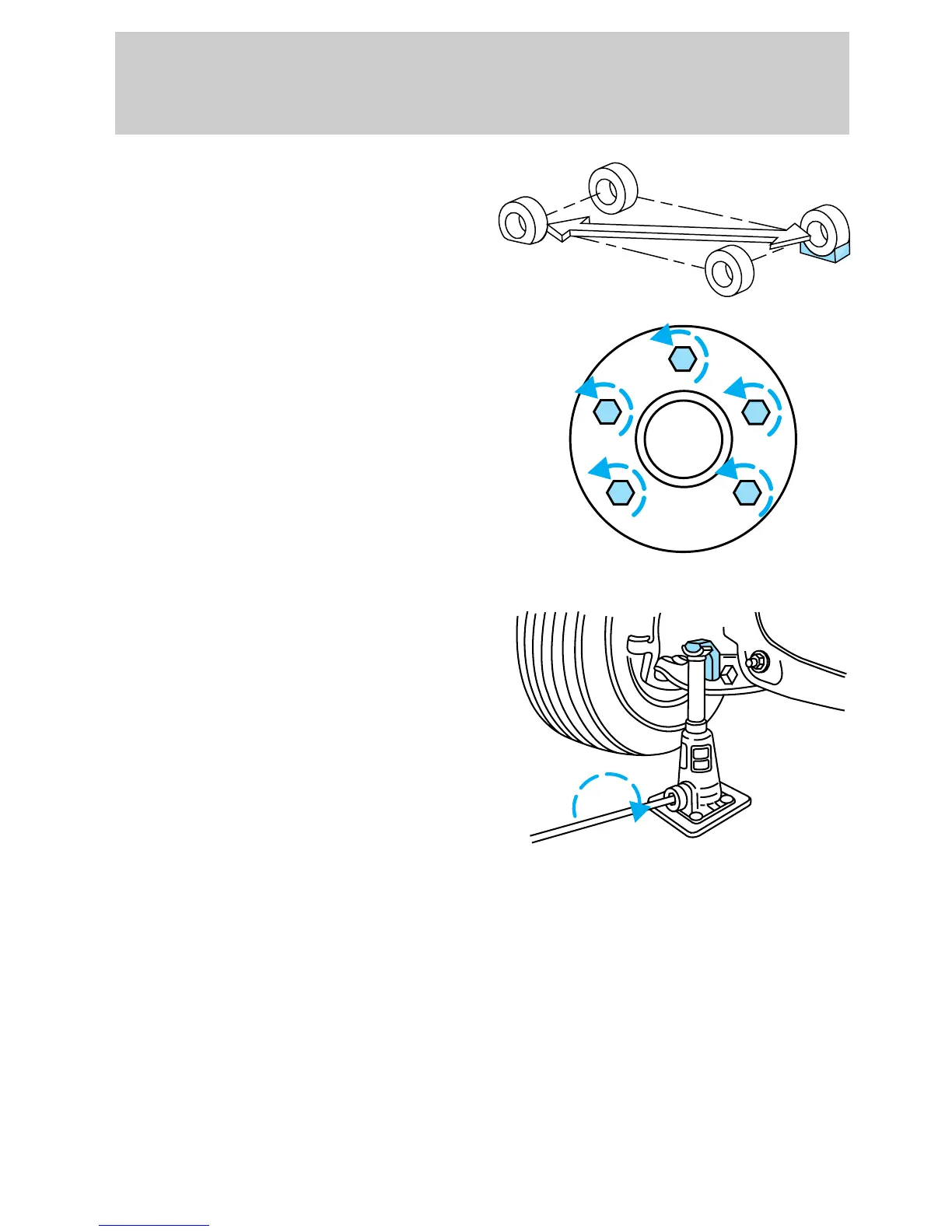

3.
Block
the
diagonally
opposite
wheel.
4.
Insert
tapered
end
of
the
lug
wrench
behind
hub
caps
and
twist
them
off.
5.
Loosen
each
wheel
lug
nut
one-half
turn
counterclockwise
but
do
not
remove
them
until
the
wheel
is
raised
off
the
ground.
6.
Position
the
jack
according
to
the
following
guides
and
turn
the
jack
handle
clockwise
until
the
tire
is
a
maximum
of
25
mm
(1
inch)
off
the
ground.
•
Front
Roadside
emergencies
104
103
105
