If your vehicle has been in an accident the alignment of your headlamps
should be checked by a qualified service technician.
Vertical aim adjustment
1. Park the vehicle on a level surface approximately 7.6 meters (25 feet)
from a vertical wall or screen directly in front of it. This procedure
should be done in a dark enviroment to effectively see the headlamp
beam pattern.

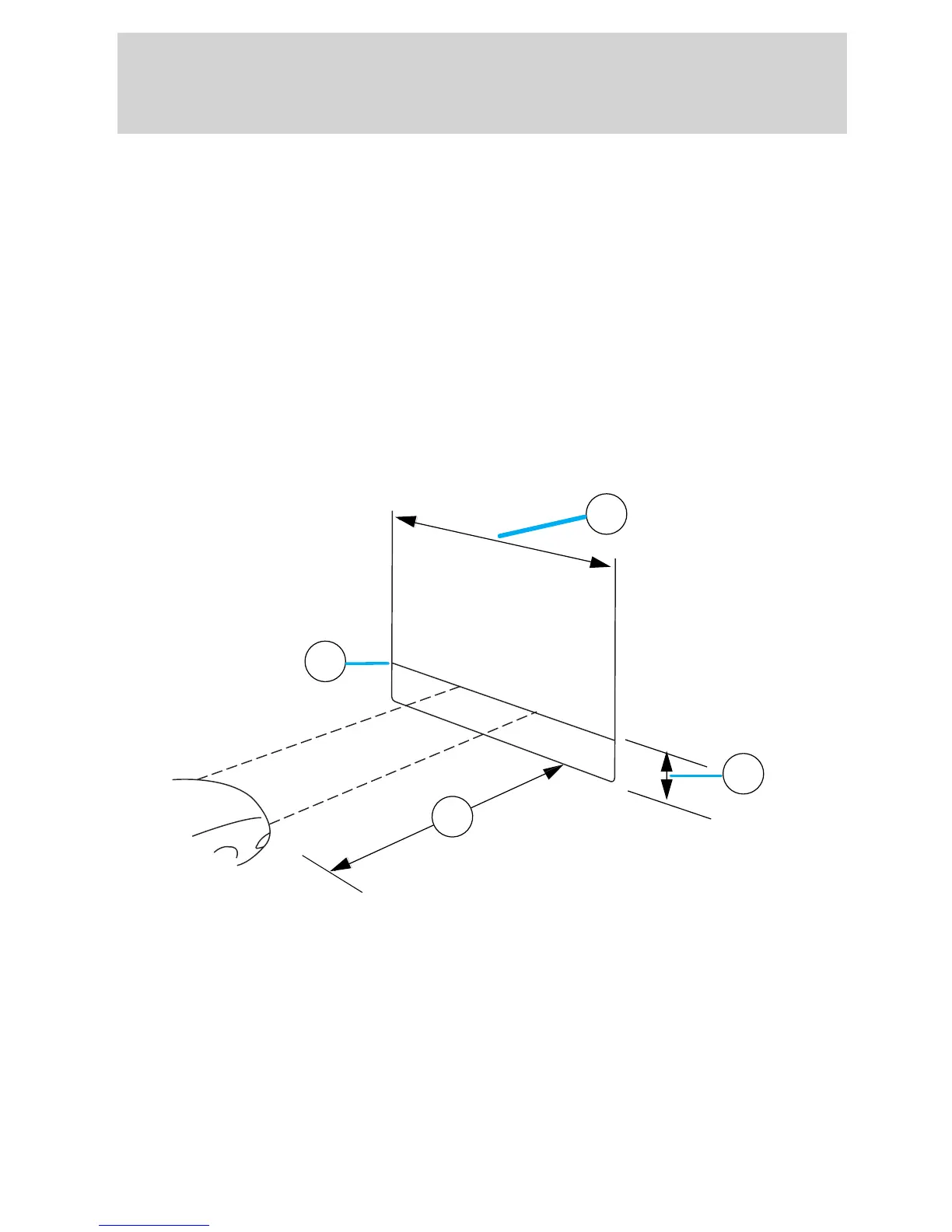

• (A) Eight feet
• (B) Center height of lamp to ground
• (C) Twenty five feet
• (D) Horizontal reference line
2. The center of the lamp is marked by a 3.0 mm circle on the headlamp
lens. Measure the height from the center of your headlamp to the ground
and mark a 2.4 meter (8 foot) long horizontal reference line on the
vertical wall or screen at this height (a piece of masking tape works
well).
A
D
B
C
Maintenance and care
217
